Polaris pool cleaner parts and spare parts

Polaris is one of the best known names in automatic pool cleaning, and its pressure-side machines have been installed on domestic pools for decades. Because those cleaners keep running long after the original purchase, the parts range matters more than the cleaner itself: a worn wheel bearing, a split hose section or a tired flow controller is usually all that stands between a tired machine and one that sweeps properly again. Here you will find components for models such as the Vac-Sweep 360, the Polaris 140, the ATV, and the smaller 65, 165, 160 and Turbo Turtle units, together with booster pump internals and wall fitting hardware.

How a pressure-side Polaris cleaner is driven

Pressure-side cleaners do not run on the skimmer suction line. They are fed with water on the return side, either from a dedicated pressure line or, on the booster-pump models, from a separate pump that supplies the cleaner alone. That water enters through a wall fitting, travels down a sectional feed hose and drives the jets, the wheels and the tail sweep inside the cleaner body. Understanding which half of that chain is at fault saves a great deal of guesswork.

If the cleaner has lost drive or climbing power, the problem usually sits in the supply: a blocked wall fitting filter screen, a flow controller or flow regulator valve that no longer restricts correctly, a pressure relief valve stuck open, or a booster pump with failing motor bearings. If the cleaner moves but wanders, climbs out of the water or stops sweeping, the fault is more often mechanical — bearings, weights, deflector parts or hose geometry.

Which parts wear first

Some components are simply consumable, and ordering them in sets tends to be more sensible than replacing them one at a time.

• Wheel and drive bearings – wheel ball bearings run in chlorinated water with grit present, so roughness or play is normal after a few seasons.
• Booster pump internals – front and rear motor bearing sets and locknuts are the usual service items on a booster pump that has become noisy.
• Hoses and hose hardware – standard hose sections, hose nuts, 45° and 90° elbows, and hose weights all take a beating from sun, chemicals and being dragged over coping stones.
• Flow components – flow controllers, flow regulator valves and pressure relief valves gradually lose their calibration and let the cleaner run too fast or too slowly.
• Wall fitting parts – UWF adjustable plugs, QD wall fitting filter screens and seals keep debris out of the cleaner and set the supply pressure.
• Body and guidance parts – base weights, deflector rings, debris inlets and small stainless screws, such as the 8-32 pan head screws used on the 140 and ATV.

Identifying the right part

Polaris parts are best ordered by part number rather than by description, because similar-looking components differ between model families. Numbers appear in two common formats: the older style beginning with a letter, such as W7530224 or W1230319, and the longer service numbers such as 01332R0067 or 25773R0026. Both are printed in the spare parts list at the back of the cleaner manual.

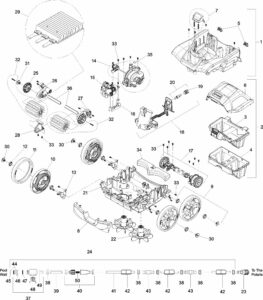

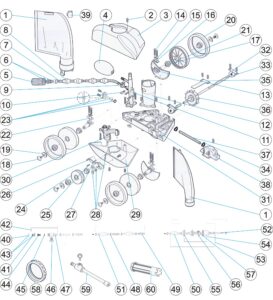

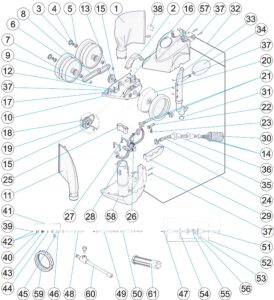

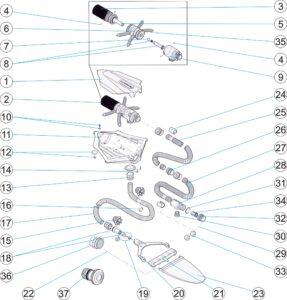

Where a manual shows an exploded view, the position number is the quickest route. A base weight listed as part 25 on a Vac-Sweep 360, or a flow regulator valve shown at position 19 on a 140, can be matched directly against the diagram. If no documentation survives, note the model name from the label on the cleaner body, count the wheels, and check whether a separate booster pump is fitted — that combination narrows the options considerably. For hoses and fittings, measure the existing section and the thread or cuff diameter before ordering, since feed hose lengths are built up from individual sections and leader hoses differ from standard ones.

Polaris at PoolParthub.com

The range here covers around 290 Polaris items: cleaner body components, wheels and bearings, hose sections and elbows, hose weights and nuts, wall fitting plugs and screens, flow and pressure control parts, booster pump bearing sets and fasteners. Parts are listed for the older Vac-Sweep models alongside the 140 and ATV machines, so an ageing cleaner can usually be kept in service.

Each listing carries the manufacturer part number in the title, which makes cross-checking against a manual or an exploded view straightforward. If a cleaner needs several items at once, ordering the full set of wear parts together avoids taking the machine apart twice.
