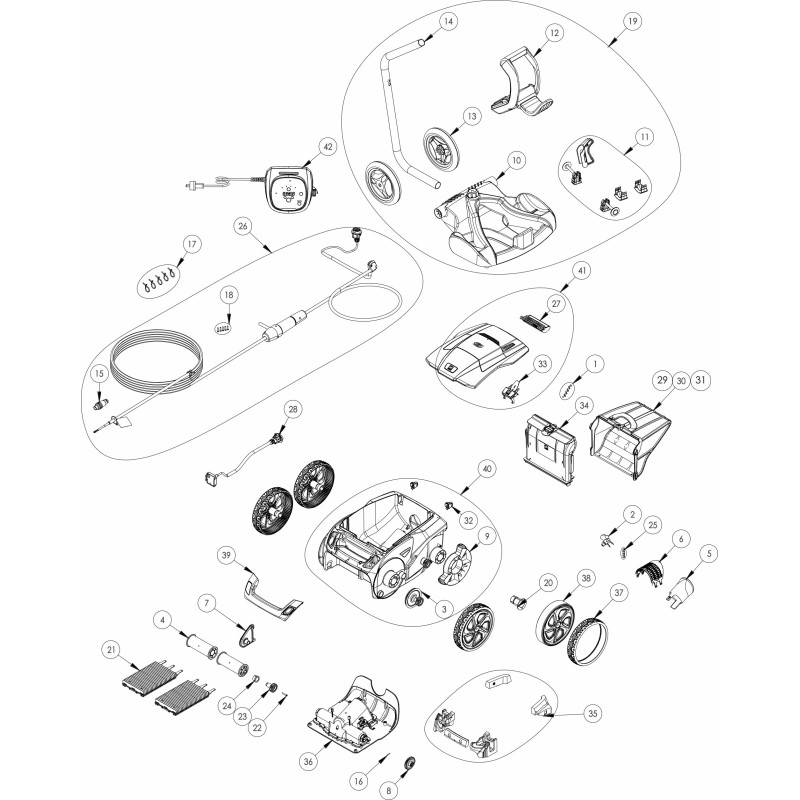

Zodiac Alpha RA6500 iQ - Exploded view
Certified online store
Easy returns within 14 days
Spare parts list
Zodiac Screw 4*12 mm Zodiac Vortex (pack 5 pcs.)
€4,95
Zodiac Suction propeller Vortex - R0517000
€7,95
Zodiac Transmission Gear/Bushing Kit - R0517200
€39,95
Zodiac Brush holder roller Zodiac (pack 2 pcs.) - R0517400
€24,95
Zodiac Flow channeler Vortex - R0517500
€24,95
Zodiac Mesh protection Vortex - R0517600
€9,95
Zodiac Roller Support - R1094200 (replaces R0518700)
€22,95
Zodiac Pinion 27 teeth Vortex (pack 2 pcs.) - R0518800
€14,95
Zodiac Wheel protection cover 4WD Vortex - R0540300
€14,95
Zodiac Base transport trolley Vortex - R0564800
€74,95
Zodiac accessories kit mount cart - R0564900
€44,95
Zodiac Handle transport trolley - R0565000
€44,95
Zodiac Vortex Transport trolley wheels (pack 2 pcs.) - R0565100
€54,95
Zodiac Vortex transport trolley tube - R0565200
€54,95
Zodiac Cable connector 4 pins - R0565600
€69,95
Zodiac Fixing clip 3*16 mm (pack 5 pcs.) - R0567800
€8,95
Zodiac Vortex floating cable clamps (pack 5 pcs.) - R0567900
€9,95
Zodiac Screws 4*16MM (Set of 5) - R0608500
€4,95
Zodiac Transport & Storage Trolley for Vortex / Alpha Pool Robots - R0609100
€184,95
Zodiac Wheel bearing bushing - R0636700
€5,45
Zodiac Short PVC brushes for Vortex / RV (2pcs) - R0638800
€109,95
Zodiac Vortex Screw 4*25 mm (pack 5 pcs.) - R0638900
€5,45
Zodiac Vortex Pinion 17 Teeth (2 pcs. pack) - R0639000
€17,95
Zodiac Vortex Exterior bushing (pack 2 pcs.) - R0639100
€3,95
Zodiac Vortex Screw 2.9*9.5 mm (pack 5 pcs.) - R0639200
€4,95
Zodiac Floating cable 18m swivel - R0726600
€289,95
Zodiac Alpha iQ Rear float assembly - R0863200
€14,95
Zodiac Sensor Block Assembly - R0863300
€159,95
Zodiac Alpha iQ Replacement filter ultra fine (60 micron) - R0863500
€69,95
Zodiac Alpha iQ Replacement filter fine (100 micron) - R0863600
€61,45
Zodiac Alpha iQ Replacement filter 200 Micron - R0863700
€69,95
Zodiac Replacement Wheels (x2) - R0864900
€14,95
Zodiac Alpha iQ lid seal - R0865000
€24,95
Zodiac Alpha iQ Filter holder Zodiac - R0865100
€39,95
Zodiac Alpha iQ Front and rear float kit - R0865200
€14,95
Zodiac Motor block Type 2 - R0865400
€479,95
Alpha iQ Wheel cover Zodiac - R0865500
€24,95
Zodiac Black and silver rim - R0865600
€24,95
Zodiac Complete handle (navy blue) for Alpha iQ robots - R0865700
€34,95
Zodiac Complete housing Zodiac Alpha iQ - R0865800
€194,95
Zodiac Complete top cover navy blue for Zodiac Alpha iQ - R0867200
€134,95
Zodiac R0867300 – Type 5 Control Unit for Alpha iQ RA 6500 iQ Pool Cleaner
€554,95
Additional information
| Reference: | WR000198 |
|---|---|
| EAN: | 9317545070834 |
| Power Source: | Mains (corded) |
| Cable Length: | 18 m floating cable |
| Cleaning Coverage: | Floor, walls, waterline |
| Filtration: | Interchangeable 60µ / 100µ / 200µ |
| Drive System: | VX drive with sensor handle |
| App Control: | iAquaLink (iOS & Android) |
| Colour: | Navy Blue |
Description

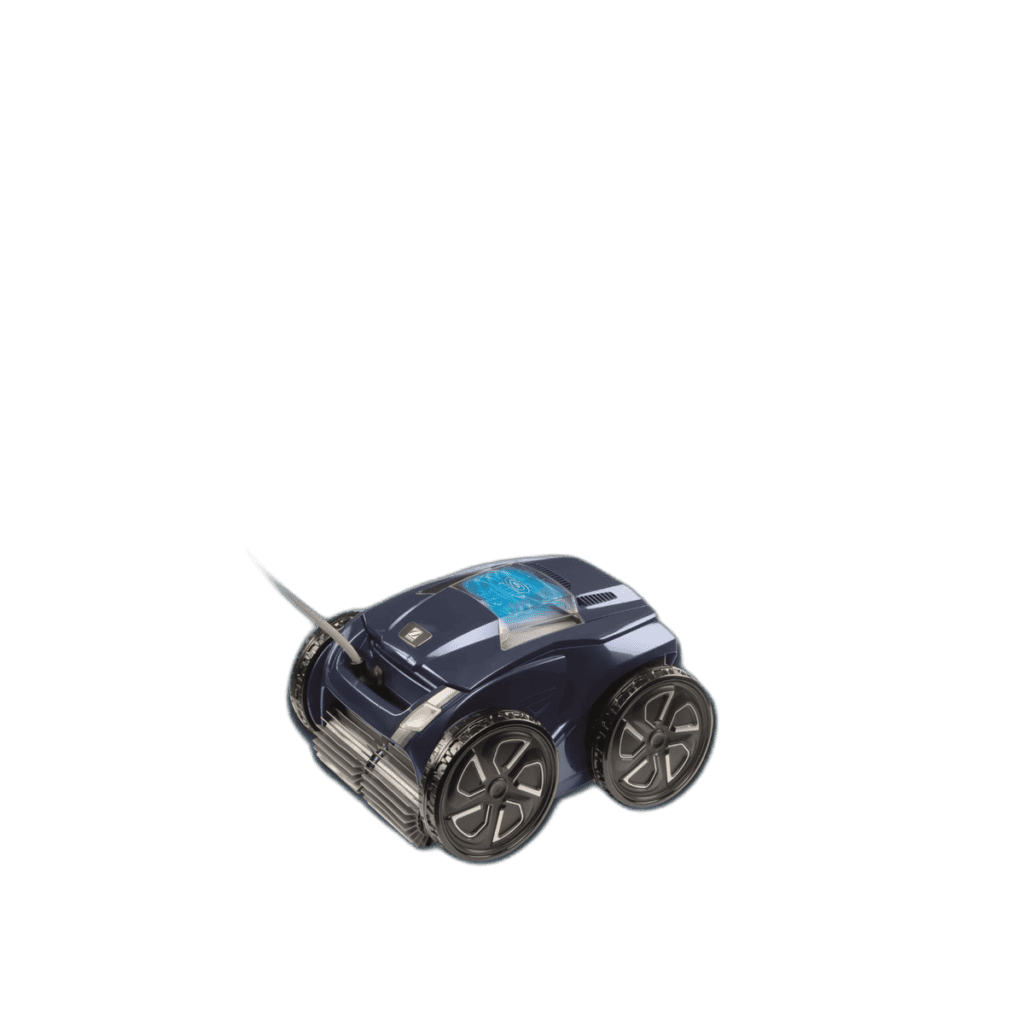

Zodiac RA-6500 iQ – Premium Corded Pool Robot with iAquaLink & Sensor Handle
The Zodiac RA-6500 iQ is a top-of-the-range corded robotic pool cleaner engineered for thorough, intelligent pool cleaning. With its exclusive VX drive system, smart sensor-equipped han
Zodiac RA-6500 iQ – Premium Corded Pool Robot with iAquaLink & Sensor Handle
The Zodiac RA-6500 iQ is a top-of-the-range corded robotic pool cleaner engineered for thorough, intelligent pool cleaning. With its exclusive VX drive system, smart sensor-equipped handle, and full iAquaLink app connectivity, the RA-6500 iQ offers the most advanced cleaning experience in Zodiac’s corded range.
VX Drive System with Sensor Handle
The innovative VX drive system gives the RA-6500 iQ superior manoeuvrability and wall-climbing capability. The intelligent sensor handle automatically detects the robot’s position and orientation, enabling precise steering and complete coverage of every pool surface — floor, walls and waterline — without missing a spot.
iAquaLink Smart App Control
Connect the RA-6500 iQ to the iAquaLink app (iOS & Android) for full remote control, scheduling and cleaning cycle monitoring. Manage your pool cleaning from anywhere — at home or on the go — with real-time notifications and cycle history.
Ultra-Fine Filtration System
The RA-6500 iQ uses interchangeable filter bags available in three grades — 60µ (ultra-fine), 100µ (fine) and 200µ (standard) — giving you complete flexibility to match filtration performance to your pool’s specific needs. Whether dealing with pollen, fine sand, algae or coarse debris, the RA-6500 iQ handles it all.
18-Metre Floating Cable
An 18-metre floating cable ensures complete coverage of large pools up to competition size. The anti-tangle cable design prevents knots and maintains consistent performance throughout every cleaning cycle.
Technical Specifications
- Power: Mains (corded)
- Cable length: 18 m floating anti-tangle cable
- Cleaning coverage: Floor, walls and waterline
- Filtration: Interchangeable 60µ / 100µ / 200µ filter bags
- Drive system: VX drive with sensor handle
- App: iAquaLink (iOS & Android)
- Colour: Navy Blue
- SKU: WR000198 | EAN: 9317545070834
