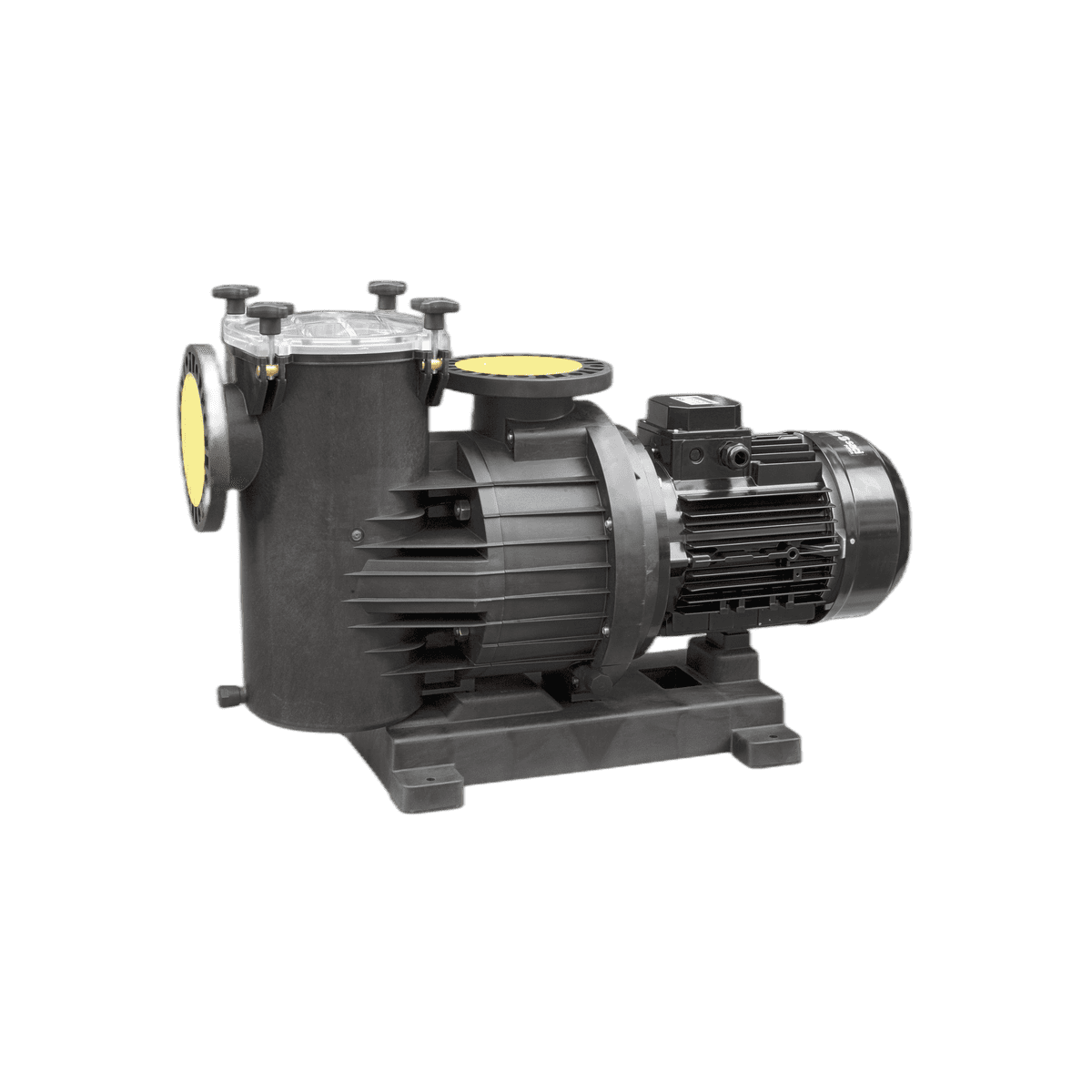

SACI Magnus-4 1000 BR – 10 HP Commercial Pool Pump with Bronze Impeller
Shipping 1-3 weeks
Certified online store
Easy returns within 14 days
Looking for advice?
SACI Magnus-4 BR – 10 HP Commercial Pool Pump with Bronze Impeller
The SACI MAGNUS-4 1000 BR is a professional-grade self-priming centrifugal pump built for commercial and public swimming pools that demand reliable, high-volume water circulation day after day. With a 10 HP (7.5 kW) 4-pole IE3 motor running at ultra-quiet 1450 rpm, this pump delivers up to 160 m³/h — making it a trusted workhorse for public pools, water parks, hotel facilities, and large aquatic centres.
The SACI MAGNUS-4 1000 BR is part of the acclaimed Magnus commercial pump family, engineered in Spain to the highest standards of durability and efficiency. Whether you’re handling the filtration circuit of a 25-metre competition pool or circulating water through a large leisure pool complex, this pump delivers consistent performance without compromise.
Tough Materials for Pool Environments
Pool chemicals, salt, and minerals are hard on equipment. That’s why the MAGNUS-4 1000 BR is built with corrosion-resistant materials throughout:
- Polypropylene + fibreglass body — rigid, lightweight, and completely unaffected by chlorine, salt, or pool chemicals
- Bronze bronze impeller (Turbina Bronce) — offering superior corrosion resistance in salt water, sea water, and chemically aggressive pool environments
- Stainless steel AISI-316 shaft and mechanical seal — marine-grade stainless for maximum longevity
- Stainless steel AISI-316 bolts and fixings — no rust, ever
- Large transparent pre-filter basket — easy visual inspection, quick to clean, protects the impeller from debris
Efficient 4-Pole IE3 Motor
The MAGNUS-4 1000 BR runs on a premium IE3 asynchronous motor at 1450 rpm. IE3 is the highest motor efficiency class, meaning lower electricity consumption compared to older IE1/IE2 motors — a significant saving when running a commercial pump continuously. The 4-pole design means the motor is fully sealed with IP-55 protection and Class F insulation, with lifetime-lubricated bearings that require zero maintenance. There is no electrical contact between the motor and the water.
Easy Installation
The MAGNUS-4 1000 BR connects via a 110 mm (4″) flanged inlet and outlet, making it straightforward to integrate into standard commercial pool pipework. The motor is rated for 400/690V three-phase, designed for industrial and commercial electrical installations. Maximum operating water temperature is 40°C, and the stainless steel AISI-316 mechanical seal also makes this pump suitable for use with sea water.
Technical Specifications
- Power: 7.5 kW / 10 HP
- Voltage: 400/690V three-phase
- Speed: 1450 rpm
- Max flow rate: 160 m³/h (at 6 mca)
- Flow at 12 mca: 107 m³/h
- Connection: Flange 110 mm (4″)
- Impeller: Bronze
- Motor: IE3 asynchronous, IP-55, Class F insulation
- Max water temperature: 40°C
- Weight: 76 kg
- Body: Polypropylene + fibreglass | Shaft & seal: Stainless steel AISI-316
Additional information
| Brand: | SACI Pumps |
|---|---|
| Power: | 7.5 kW / 10 HP |
| Voltage: | 400/690V three-phase |
| Max Flow Rate: | 160 m³/h |
| Flow at 12 mca: | 107 m³/h |
| Speed: | 1450 rpm (4-Pole) |
| Connection: | Flange 110 mm (4") |
| Impeller Material: | Bronze |
| Body Material: | Polypropylene + Fibreglass |
| Shaft & Seal Material: | Stainless Steel AISI-316 |
| Motor Type: | IE3 Asynchronous |
| Protection Grade: | IP-55 |
| Insulation Class: | Class F |
| Max Water Temperature: | 40°C |
| Weight: | 76 kg |
In details
- Ultra-quiet 4-pole IE3 motor at 1,450 rpm
- Max flow 160 m³/h — built for large commercial pools
- Bronze impeller for superior corrosion resistance
- Premium IE3 motor reduces energy costs in continuous use
- Full AISI-316 stainless steel build for long service life
- Requires three-phase supply only
- Needs professional installation due to size and weight
