AstralPool Pump Maxim SS 3,5 HP 230/440V III - 08003
Certified online store
Easy returns within 14 days
Spare parts list
AstralPool - Spanner wrench nut - 4405010379
€109,95
AstralPool - Cover nut - 4404180102
€24,95
AstralPool - Pre-filter lid - 4405010302
€34,95
AstralPool - O-ring 192x5mm - 4405010373
€4,95
AstralPool - Pre-filter basket 8L - 4405010304
€79,95
AstralPool - Suction/discharge gasket set - 4405010375
€4,95
AstralPool - 90mm union connection kit - 4405010306
€139,95
AstralPool - 3" union connection kit - 4405010764
€104,95
Astralpool 1/4'' valve plug - 4404121107
€3,95
AstralPool - Pre-filter assembly 8L - 4405040701
€144,95
AstralPool - O-ring 126x3.5mm - 4405011412
€34,95
AstralPool - Fixing screws and bracket kit - 4405010380
€114,95
AstralPool - O-ring 100x4mm - 4405010376
€4,95
AstralPool - Hydraulic base union ≤4.5 HP - 4405010313
€119,95
AstralPool - Pump base / foot - 4405010315
€94,95
AstralPool - Pump body 3.5 HP - 4405010307
€184,95
AstralPool - Pump body screw set - 4405010311
€89,95
AstralPool - Impeller plug - 4405010338
€9,95
AstralPool - Impeller 3.5 HP III 50Hz - 4405010323
€44,95
AstralPool - Impeller 3.5 HP III 60Hz - 4405010765
€84,95
AstralPool - Mechanical seal - 4405010322
€164,95
AstralPool - O-ring 226x6mm - 4405010378
€19,95
AstralPool - Mechanical seal bracket 3.5 HP - 4405010334
€109,95
AstralPool - Motor bracket 3.5 HP - 4405010332
€94,95
AstralPool - Deflector washer 24x50x6mm - 4405010374
€4,95
AstralPool - Motor tie rod set 3.5 HP - 4405010361
€19,95
AstralPool - Front motor cover 2.5-3 HP (Bonora) - 4405010369
€184,95
AstralPool - Front motor cover 2.5-3 HP (Vernis) - 4405010381
€64,95
AstralPool - 6205 2RS bearing kit 3.5 HP - 4405010171
€94,95
AstralPool - Terminal box kit 3.5 HP (Vernis) - 4405010545
€59,95
AstralPool - Terminal box kit C.80-90 III - 4405010157
€14,95
AstralPool - Terminal box kit 2.5-3-4.5 HP - 4405030119
€59,95
AstralPool - Rear motor cover 3.5 HP (Bonora) - 4405010367
€64,95
AstralPool - Rear motor cover 2.5-3-3.5 HP (Vernis) - 4405010382
€39,95
AstralPool - Rear motor cover C.90 E - 4405011415
€29,95
AstralPool - V-ring seal 2.5-3 HP II - 4405010176
€44,95
AstralPool - Fan and cover kit - 4405011400
€54,95
AstralPool - Fan cover kit - 4405011417
€59,95
Additional information
| Brand: | AstralPool |
|---|---|
| Series: | Maxim |
| Power: | 3.5 HP |
| Speed: | 2860 rpm |
| Connection: | 3" |
| Motor protection: | IP55 |
| Pre-filter capacity: | 8 litres |
Description

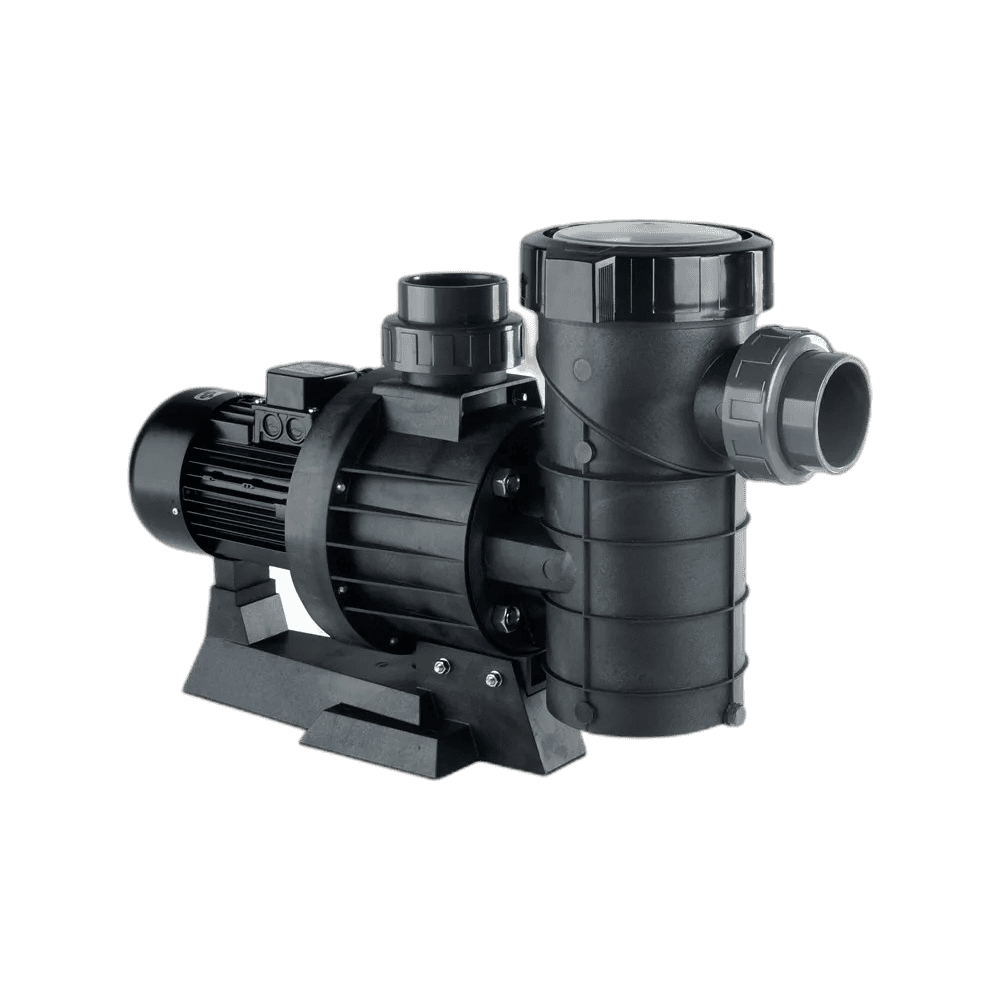

AstralPool – Maxim 3.5 HP pool pump
The AstralPool Maxim 3.5 HP is a high-capacity single-speed pool circulation pump engineered for large residential and semi-commercial pools. Running at 2,860 rpm with a 3.5 HP motor, it delivers the flow rates required for pools with large water volumes, long pipe runs, or high-resistance filtration systems. The Maxim series has long been a trusted choice for professional pool builders and maintenance contractors across Europe and beyond.

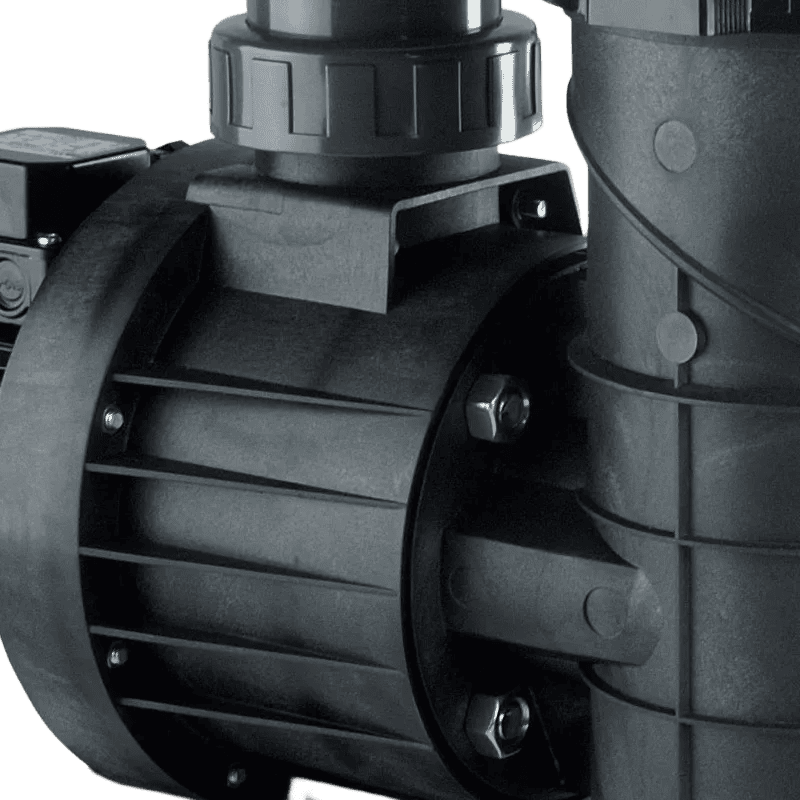

The pump body and supports are manufactured from glass-reinforced thermoplastic, offering excellent chemical resistance against chlorine, salt, and algaecide treatments. The motor shaft tip is made from AISI-316 stainless steel, providing corrosion resistance in wet environments, and the motor is double-insulated with IP55 protection — suitable for outdoor installation in exposed locations.
Pre-filter and hydraulics

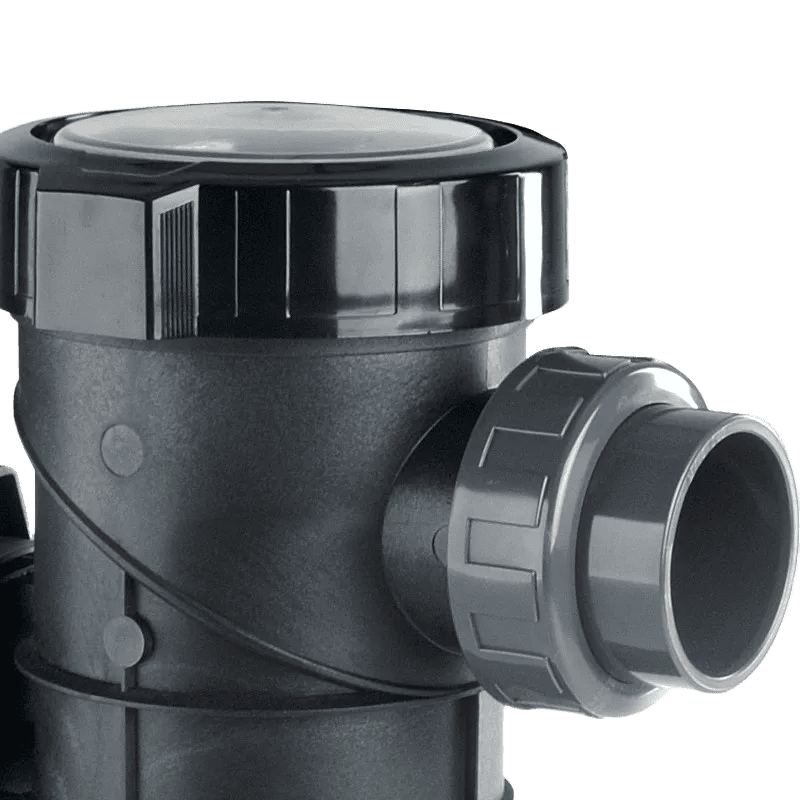

The Maxim integrates an 8-litre pre-filter basket with a transparent lid, allowing easy visual inspection of debris accumulation without switching off the pump. The large basket capacity reduces the frequency of cleaning intervals on heavily loaded pools. The pump uses 3-inch threaded connections, accommodating high-flow pipework for installations requiring maximum hydraulic performance.
Installation and compatibility
The Maxim 3.5 HP installs on a standard pump base with 3″ threaded inlet and outlet connections. It is compatible with sand, cartridge, and diatomaceous earth filter systems. A comprehensive range of OEM spare parts is available, including impellers, mechanical seals, motor covers, pre-filter baskets, O-rings, and terminal boxes, supporting long service life and straightforward on-site servicing.
