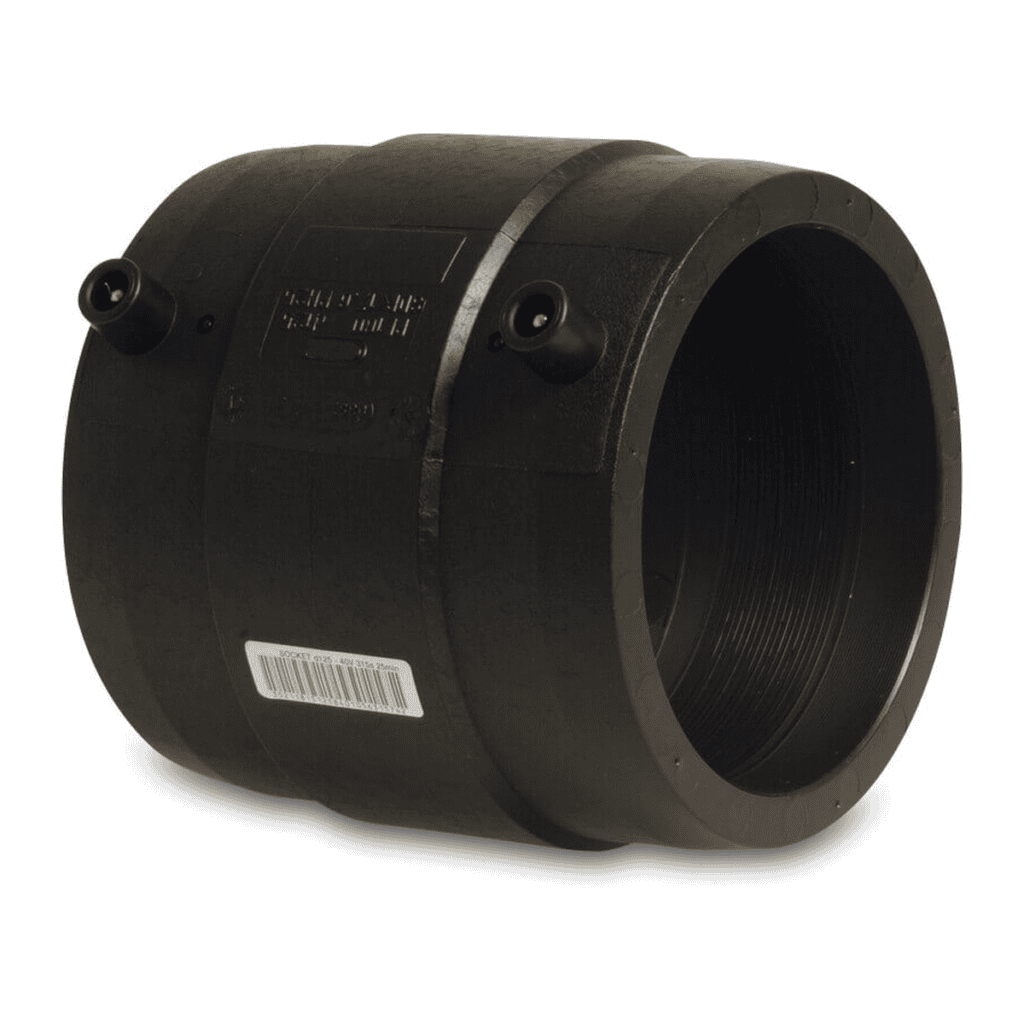

Profec – PE100 Electrofusion Socket 32mm SDR11 16bar DVGW

Rated to 16 bar for water and 10 bar for gas in the SDR11 wall-thickness class, this 32 mm Profec electrofusion socket provides a pressure-tight, fully welded joint on PE100 pipework — the smallest diameter in the Profec DVGW-certified range. Energised at 24VAC via a standard 4 mm electrical connector, the embedded resistance coil melts and fuses the socket to the pipe ends, producing a joint that is as strong as the parent pipe. DVGW approval confirms compliance with German and broader European requirements for potable-water and gas distribution pipework.

Fusion process & joint integrity

The electrofusion method passes current through a wire coil moulded into the fitting body, generating localised heat that welds the PE100 socket to both pipe ends simultaneously. The resulting joint is monolithic and leak-free, with no mechanical seal to degrade over time — making electrofusion the preferred jointing technique wherever access restricts butt-welding equipment. A built-in welding indicator confirms that fusion has been achieved before the joint is pressurised.

Caractéristiques des matériaux et des pressions

Manufactured from virgin PE100 polyethylene — the highest-density grade in common use — this SDR11 socket carries a 16 bar working pressure rating for water systems and 10 bar for gas, consistent with EN 12201-3 and EN 1555-3 requirements for this dimension series. The all-black PE100 body resists UV degradation, making it equally suited to above-ground pool plant rooms and buried pipework runs.

Compatibility & pool plant applications

The 32 mm size is the standard connection diameter for many pool pump suction and return lines, filter branch ports, and heat-pump pipework in small-to-medium residential pools. It connects directly to 32 mm SDR11 PE100 pipe, and the 24VAC welding voltage is compatible with all common European electrofusion control units. Pair with the matching Profec elbow, tee, or reducing socket from the same DVGW-approved range to build a fully fused PE pipework system.
