Profec - Pipe bracket galvanised steel 67–73 mm M8/M10 2-piece - 0329456

Profec – Pipe bracket galvanised steel 67–73 mm M8/M10 2-piece

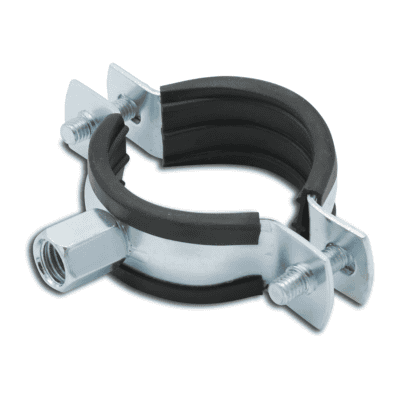

Sized for pipe outer diameters of 67–73 mm, this Profec 2-piece pipe bracket is manufactured to DIN 4109 and combines a hot-dip galvanised steel shell with an EPDM rubber liner to secure and acoustically isolate pipework in solar heating, HVAC, and plumbing installations. The hinged, safety-closure design forms a full 360° encirclement of the pipe, ensuring uniform load distribution without point stress. An integrated female thread accepts either M8 or M10 threaded rods, giving installers the flexibility to use whichever fixings are already on site.

Construction & acoustic isolation

The bracket’s EPDM rubber seal sits between the steel halves and the pipe surface, dampening vibration and reducing structure-borne noise transmission — a key requirement under DIN 4109. Galvanised steel construction resists corrosion in outdoor and humid environments such as roof-mounted solar collector runs, plant rooms, and poolside solar pipework, without the cost premium of stainless steel.

Compatibilité et installation

The dual M8/M10 female thread means the bracket fits either rod size without an adaptor, keeping installation straightforward whether you are suspending pipework from a threaded rod or bolting directly into a mounting rail. The 2-piece snap-and-bolt closure allows the bracket to be fitted around existing pipe without dismantling the run, which is particularly useful when adding or repositioning pipe supports during a solar heating retrofit.

Sizing to your solar pipework

The 67–73 mm clamp range covers common large-bore solar collector flow and return pipes, including DN63 class pipework used in higher-output pool solar heating systems. Where multiple diameters are present on the same manifold run, Profec offers this bracket in a full range of sizes so that identical hardware can be used throughout the installation.
