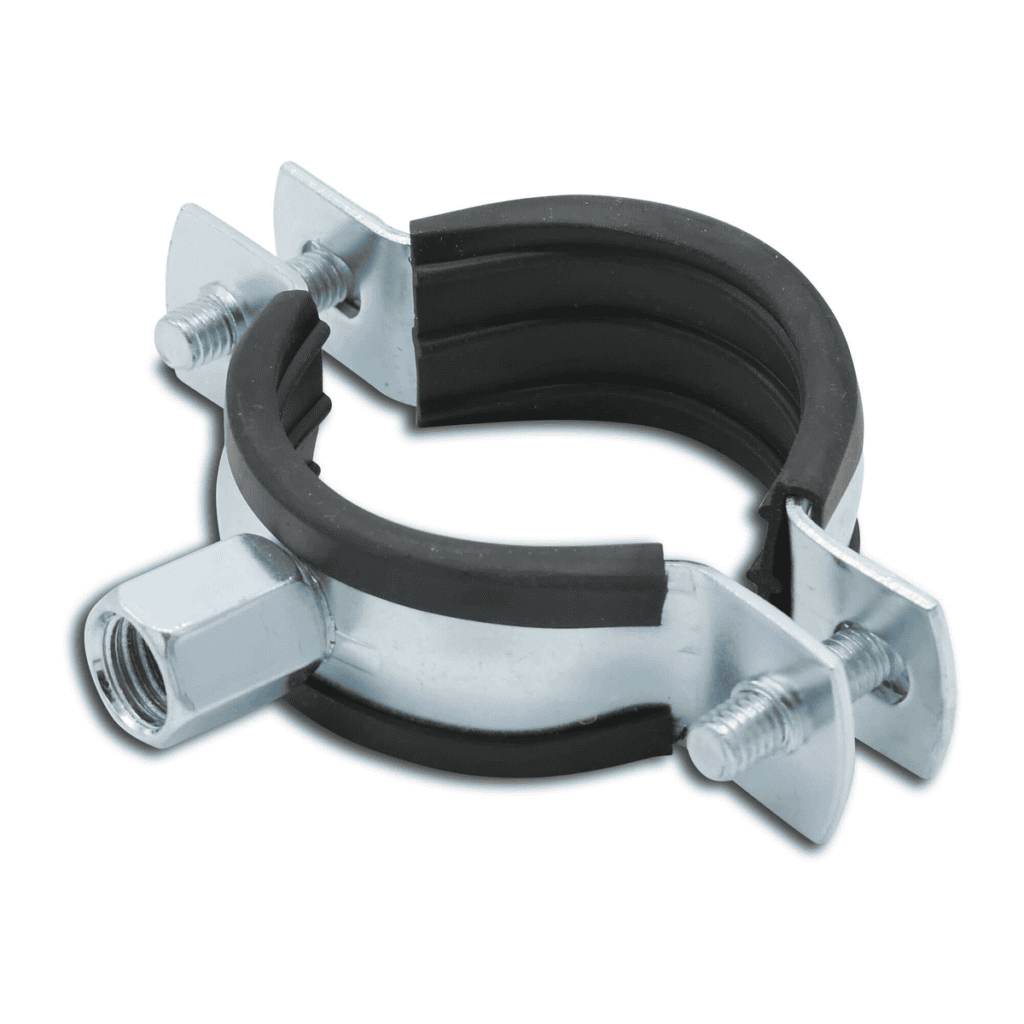

Profec – Pipe bracket steel galvanised 50–54 mm M8/M10 2-piece

Designed to clamp pipes with an outer diameter of 50–54 mm, this galvanised steel 2-piece pipe bracket accepts both M8 and M10 female-threaded rods in a single fitting — eliminating the need for separate hardware on mixed installations. Conforming to DIN 4109, it is a go-to choice for securing solar collector pipework on roofs and plant rooms where vibration damping and acoustic insulation are required.

Construction & noise attenuation

The bracket is pressed from hot-dip galvanised steel for long-term corrosion resistance in outdoor and roof-mounted environments. An EPDM rubber seal lines the inner bore, cushioning the pipe against the bracket shell to absorb mechanical vibration and reduce structure-borne noise transmission — a requirement mandated by the DIN 4109 sound insulation standard. EPDM’s inherent resistance to ozone, UV, and weathering ensures the lining stays supple across a wide temperature range, making it equally suited to cold-feed and solar-heated pipe runs.

Dual M8/M10 female thread

The integrated female thread block accepts both M8 and M10 threaded suspension rods without adapters, giving installers the flexibility to match whatever rod stock is already on site. The 2-piece clamp design — upper and lower saddle halves — closes around the pipe in a full 360-degree embrace, distributing load evenly and preventing pipe movement under thermal expansion cycles common in solar heating circuits.

Application in solar pool heating

In solar pool heating installations, collector pipework is typically routed across roof structures and requires regular, code-compliant support points. This Profec bracket provides a neat, secure fixing that can be spaced along threaded rod channels or strut rails, keeping supply and return lines correctly aligned while protecting them from abrasion and rattle. It pairs with standard metric threaded rod available from any builders’ merchant.
