Profec - Raccord PE100 90 mm à électrofusion SDR11 40 V CA 16 bar DVGW - 0302153

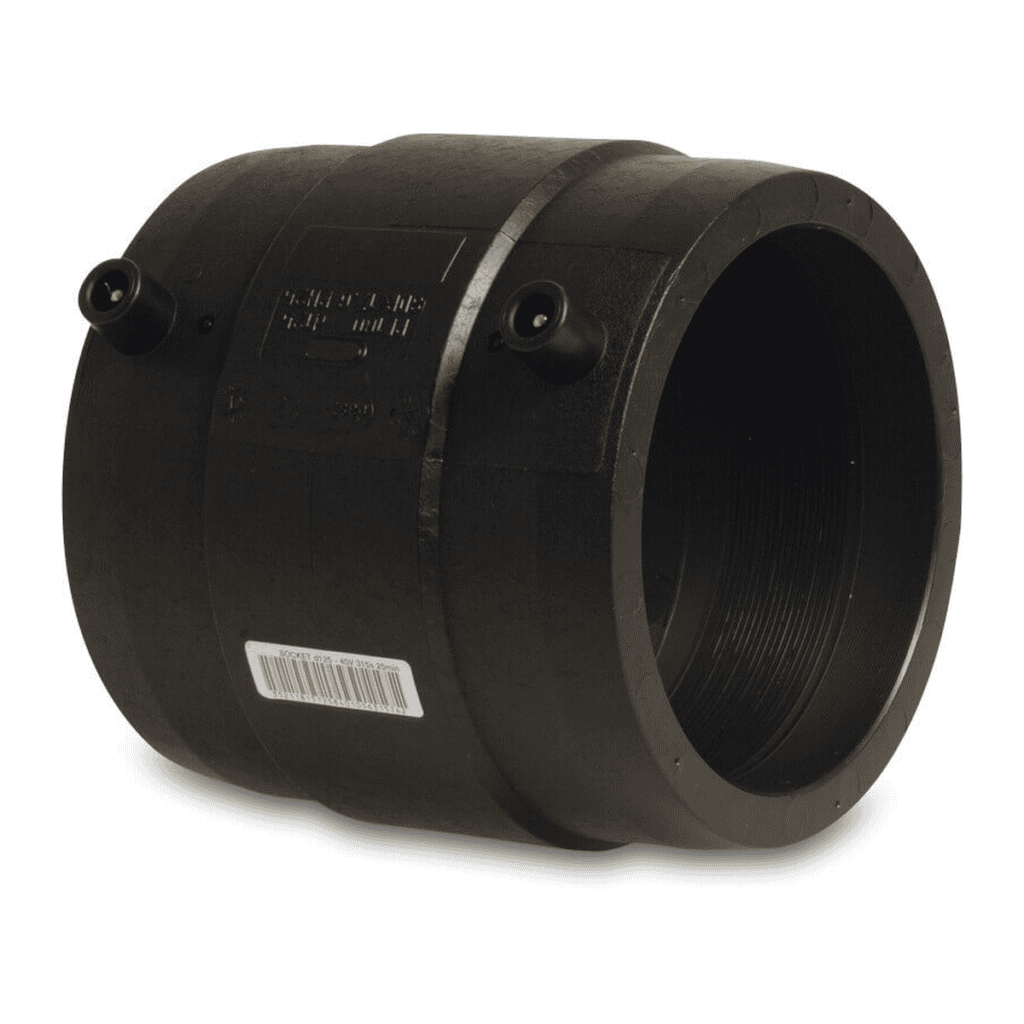

Profec – Socket PE100 90mm Electrofusion SDR11 40VAC 16bar DVGW

Rated to 16 bar for water and 10 bar for gas, this 90 mm PE100 electrofusion socket from Profec is built for demanding buried and above-ground pipework on pool plant rooms, water supply, and gas distribution networks. The SDR11 wall thickness and 40VAC fusion voltage suit the larger-diameter pipe runs common in commercial pool installations and professional piping projects across Europe.

Fusion joint integrity

Electrofusion welding passes a controlled current through an embedded resistance coil, melting the pipe and fitting interface to form a fully homogeneous, leak-free joint. The socket ships complete with a 4 mm electrical connector, welding indicator, and barcode reader compatibility, allowing the fusion parameters to be read automatically by a compatible controller — eliminating manual data-entry errors on site.

DVGW approval & pressure ratings

DVGW certification confirms the fitting meets German and broader European standards for both potable water and gas pipework. The dual pressure rating — 16 bar for water and 10 bar for gas — makes this socket genuinely dual-service, removing the need to stock separate fittings for mixed installations. The black PE100 compound offers excellent resistance to UV, stress cracking, and chemical attack over the long service life expected of buried infrastructure.

Compatibility & pipe sizing

The 90 mm bore is a widely used dimension in pool plant rooms for main circulation headers, heat pump connections, and filter manifolds. SDR11 geometry is compatible with standard PE100 pipe in the same class, and the 40VAC operating voltage aligns with mid-to-large Profec electrofusion controllers designed for this size range.
