Poolstar Freeflo Racer filtration pump

Poolstar Freeflo Racer filtration pump exploded view & spare parts

This page provides the full exploded-view diagram for the Poolstar Freeflo Racer filtration pump, alongside every numbered spare part available to order. Whether you need a replacement mechanical seal after a wet-season leak, a fresh impeller to restore flow rate, or simply a new o-ring set for your annual service, the diagram and parts list below give you everything you need to identify, order, and fit the correct component first time. All parts stocked here are genuine Poolstar items, manufactured to the exact tolerances of the original pump.

How to use the exploded-view diagram

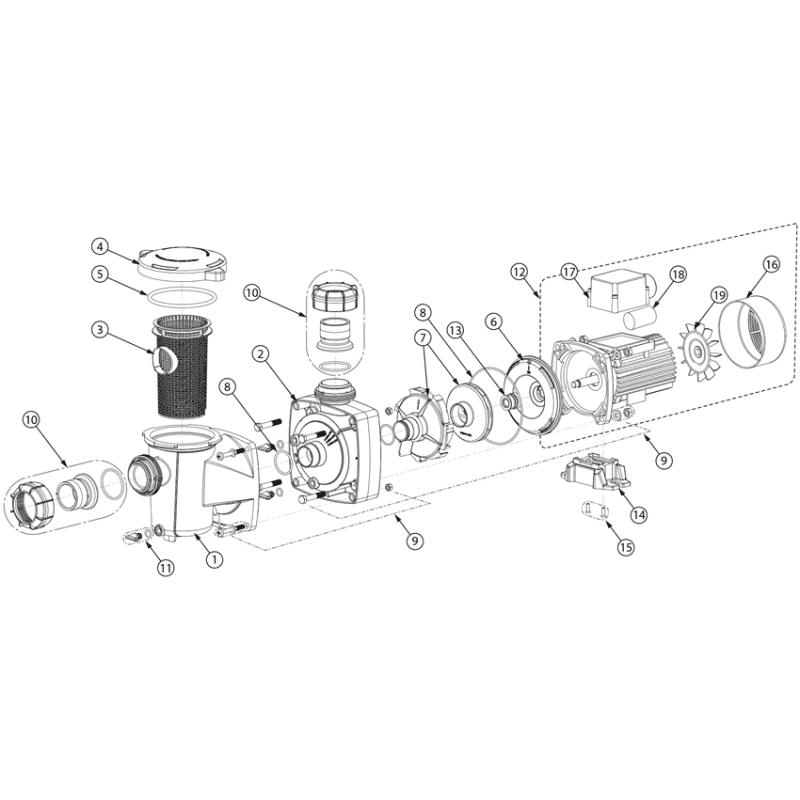

The diagram shows the Freeflo Racer pump fully disassembled, with every component positioned exactly as it sits inside the pump body. Each part carries a unique reference number that matches the part number in the table below. Start by locating the section of the pump where you are experiencing the problem — for example, the wet end (pump casing, impeller, diffuser, mechanical seal) or the hydraulic connections (unions, fittings, strainer basket lid). Note the reference number printed next to that component, then use it to find the correct spare in the list. If more than one variant exists for a part, the diagram notes will indicate which applies to your horsepower or voltage configuration.

Main components and what they do

The Freeflo Racer filtration pump is a mono-block design built around a small number of precision-engineered parts. The pump casing forms the sealed wet end that houses all hydraulic components. Inside it, the impeller spins at speed to create the pressure differential that drives water through your filter circuit, while the diffuser converts that velocity into controlled flow. The motor block is the electrical heart of the unit, directly coupled to the impeller shaft. Between the motor block and the wet end, the mechanical seal prevents water from tracking along the shaft and reaching the motor windings. A set of o-rings and gaskets creates a static watertight seal at every joint between casing halves, lid, and unions. The strainer basket and lid sit at the pump inlet, catching debris before it can reach the impeller. Finally, unions and fittings connect the pump to your pipework, and stainless-steel screws hold the entire assembly together under pressure.

Common wear items and when to replace them

The mechanical seal is the part most likely to need attention over the life of the pump. It is a sacrificial component that absorbs shaft movement and heat; tell-tale signs of failure include a drip of water from the seal housing area or a grinding noise during start-up. O-rings and gaskets compress over time and harden with exposure to pool chemicals — if you notice any weeping around the casing joint or strainer lid, a new seal kit is the first remedy to try. The impeller can become cracked or clogged with calcium scale, causing a noticeable drop in flow and pressure; inspect it whenever you service the pump or investigate a weak-flow complaint. The strainer basket is a fast-wear item in pools with heavy leaf fall — check it weekly in autumn and replace it the moment you see cracks or deformed mesh, as a broken basket will pass debris straight to the impeller. Unions and fittings rarely fail structurally but their integral o-rings should be renewed whenever the unions are disconnected for maintenance.

Servicing and installation tips

Always isolate the pump from the mains supply and close both isolation valves before opening the casing. When replacing the mechanical seal, ensure the shaft end and seal housing are spotlessly clean and lightly lubricate the new seal faces with a silicone-safe pool lubricant — never petroleum grease, which degrades EPDM rubber rapidly. Torque the casing screws in a cross pattern to avoid distorting the mating face and causing a new leak. When refitting unions, hand-tight plus a quarter turn is sufficient; over-tightening cracks the thermoplastic bodies. Prime the pump fully before starting it after any wet-end work to protect the new mechanical seal from running dry, which can destroy it within seconds.

Why genuine Poolstar parts matter

The Freeflo Racer pump is engineered as a complete hydraulic system: the impeller blade geometry, diffuser vane profile, and casing volute are designed together to deliver the pump’s rated flow at minimum energy draw. Aftermarket parts manufactured to looser tolerances can disrupt this balance, reducing efficiency, increasing noise, and — in the case of off-specification mechanical seals — causing premature leakage. Genuine Poolstar spare parts are produced to the same material specifications as the originals, meaning the correct durometer rubber for o-rings in chlorinated or salt water, the correct carbon/ceramic pairing for mechanical seal faces, and the correct impeller diameter to maintain your rated flow. Fitting genuine parts also keeps your pump within the manufacturer’s warranty terms and ensures that component dimensions remain consistent if you need to service the pump again in future.
