Profec - Adaptador de latón para manguera con rosca macho de 1¼" x 40 mm, 30 bar - 0411771
Envíos 1-3 semanas
Certificado tienda en línea
Devoluciones fáciles dentro de 14 días
¿Buscas consejo?

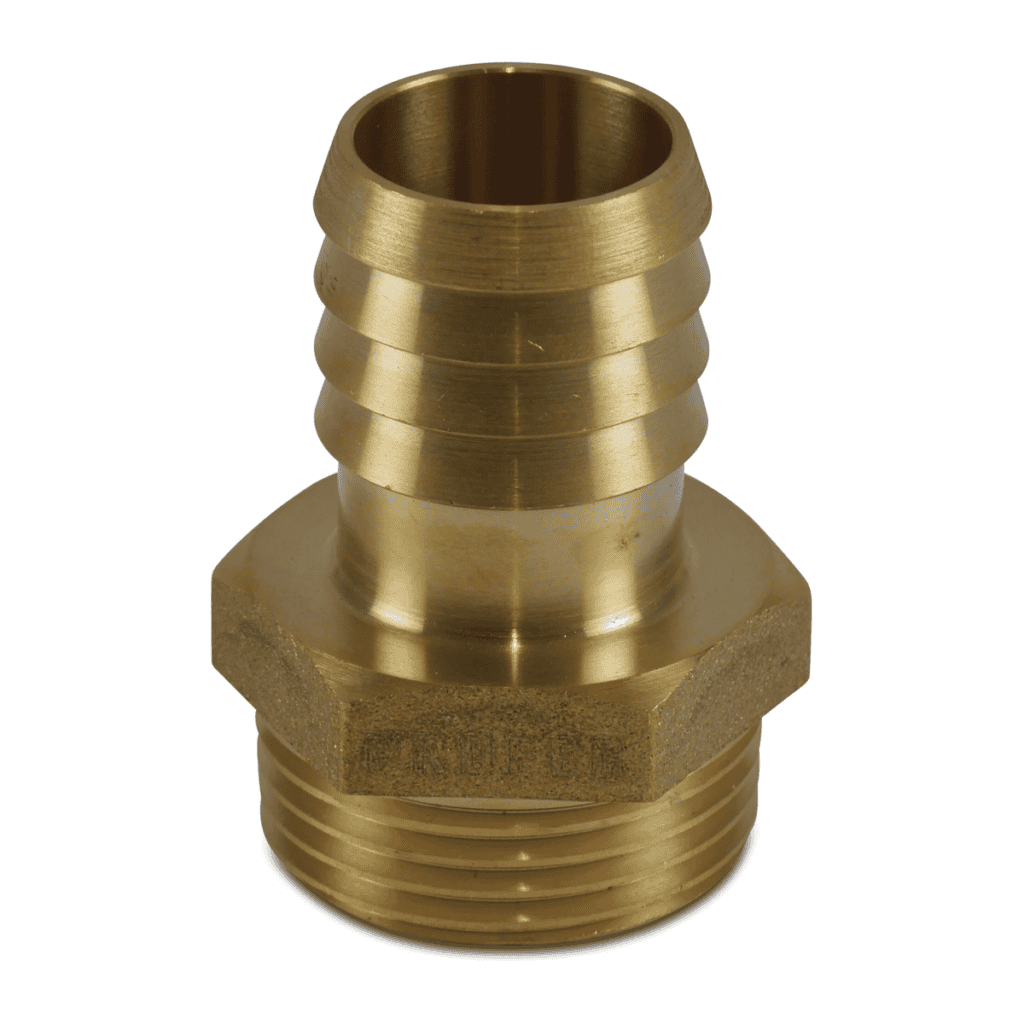

Profec – Brass Hose Tail Adaptor 1¼” Male Thread x 40 mm 30 bar
Rated to 30 bar and 120 °C, this 1¼” male-thread-to-40 mm hose tail adaptor from Profec bridges the gap between a threaded port and a flexible hose in pool plant rooms, pump installations, and industrial pipework. At 60 mm in overall length, it is compact enough for confined equipment bays while delivering a full-bore flow path suited to the larger hose diameters common on pool circulation and heat-pump circuits. The hexagonal body (spanner size 42) allows precise torqueing without slippage.
Material & pressure capability
Machined from solid brass, this adaptor resists corrosion in chemically treated pool environments and handles continuous working pressures up to 30 bar — well above the typical 2–4 bar found in pool circulation systems, making it equally at home in higher-pressure dosing or heating applications. The 120 °C temperature rating accommodates heat-pump and solar-heating return lines without degradation of the fitting body.
Connection geometry
One end presents a 1¼” male BSP thread that mates with any standard 1¼” female BSP port on pumps, valves, filters, or manifolds. The opposite end is a 40 mm barbed hose tail, sized to accept 40 mm internal-diameter flexible hose securely when fitted with an appropriate hose clamp. PTFE tape on the thread is recommended for a leak-free seal.
Instalación y compatibilidad
The 42 mm spanner flat makes for straightforward installation even in tight spaces, and the fitting is compatible with PVC, rubber, and reinforced flexible hoses commonly used in European pool plant rooms. Its rated performance characteristics mean it can serve as a direct replacement or upgrade fitting wherever a 1¼” threaded outlet must terminate into a 40 mm flexible hose run.
Información adicional
| Marca: | Profec |
|---|---|
| Presión: | 30 bar |
| Conexión: | rosca macho x racor para manguera |
| Temperatura máxima: | 120 °C |
| Material | Latón |
| Tipo de conexión: | Male thread × hose tail |
| Tamaño de la rosca: | 1¼" BSP macho |
| Diámetro de la conexión de manguera: | 40 mm |
| Presión máxima: | 30 bar |
| Longitud total: | 60 mm |
| Tamaño de la llave: | 42 mm |
En detalle
- 30 bar rated — substantial safety margin over pool system pressures
- 120 °C rated — suits heat-pump and solar return lines
- Solid brass resists corrosion in chlorinated pool environments
- Spanner flat (42 mm) enables precise, tool-assisted installation
- 1¼" BSP thread mates with standard pool pump and filter ports
- Hose clamp required separately for a secure 40 mm hose connection
- Brass unsuitable for aggressive saline or acidic chemical feed lines
