Zodiac XA 4010 / 4030 / 4045 / 4095 iQ

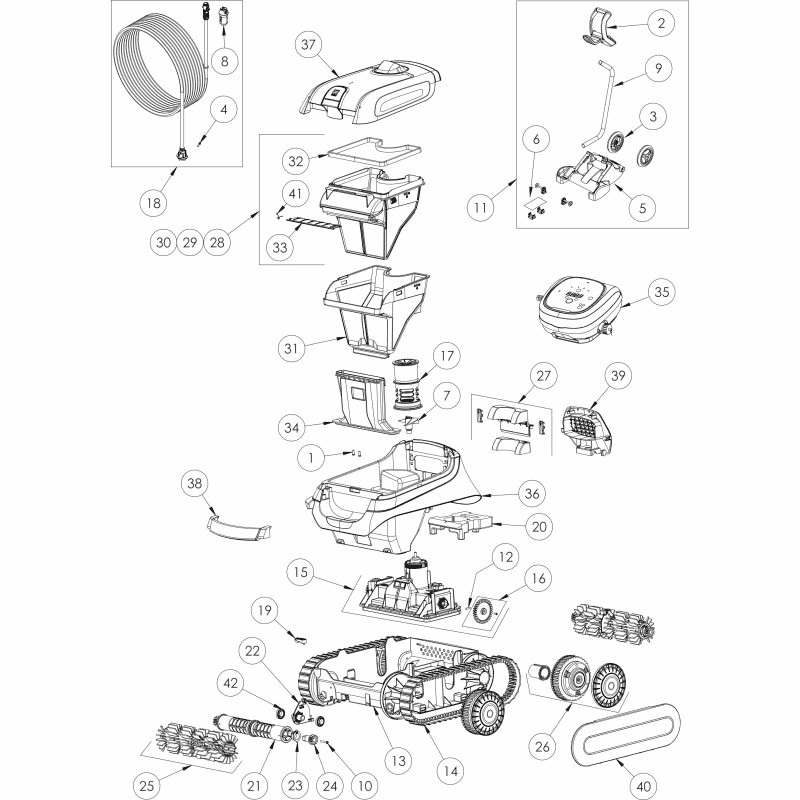

Zodiac XA 4010 iQ, XA 4030 iQ, XA 4045 iQ & XA 4095 iQ exploded view & spare parts

This exploded-view diagram covers all four models in Zodiac’s XA iQ top-tier robotic pool cleaner family: the XA 4010 iQ, XA 4030 iQ, XA 4045 iQ și XA 4095 iQ. It applies to every factory reference in this range — WR000324, WR000326, WR000441 and WR000475 — so no matter which reference number appears on your robot’s label or original purchase documentation, you are in exactly the right place. All robots in this group share the same CNX-platform architecture, featuring Zodiac’s patented CyclonX cyclonic suction, twin-level progressive filtration, helical brush rollers and iAquaLink® Wi-Fi connectivity, making them suitable for pools up to 12 × 6 m with complete floor, wall and waterline coverage. Every spare part listed below is a genuine Zodiac replacement that fits any of the four models without modification.

Cum să folosiți schema numerotată pentru a găsi piesa dorită

The exploded view breaks the robot down into logical assemblies — drivetrain, filtration, motor block, cable and power supply, body shell, and transport trolley — each with a unique reference number. Start by identifying the area of your robot that needs attention, locate the corresponding numbered component in the diagram, then match that number to the part listing below the image. For assemblies made up of several small items, such as the brush shaft sprocket kit or the outer brush shaft bushing kit, the diagram shows each sub-component individually so you can replace only the piece that has failed rather than the entire assembly. Where a part is sold as a multi-piece pack — for example, track belts (2 pcs.), gear pinions (2 pcs.), or screw sets — the diagram callout reflects the complete pack as it is supplied, ensuring you always receive the correct quantity in a single order.

Drivetrain, tracks and brush components

The drivetrain is the heart of the XA iQ range and the section most likely to require attention after several seasons of use. Key parts here include the Șenile robot (pachet de 2), cel Pinioane angrenaj (pachet de 2), cel Știft ax bloc motor (pachet de 5), cel LED motor block, iar CyclonX propeller. Brush maintenance is equally important: the diagram lists the brush roller, perii pentru robot (pachet de 2), clemă de prindere rolă, Kit bucșă ax perie exterioară, set pinion ax perie (12 dinți) and the cleaner wheel ca articole care pot fi comandate individual. Acesta float chassis și Șasiu XA CNX Voyager are also covered here for situations where the structural frame of the robot has been damaged.

Sistem de filtrare și piese pentru circulația apei

The XA iQ range offers a choice of filter basket fineness to suit different pool conditions and debris types. This diagram covers four genuine Zodiac filter options: the filtru de schimb CN 60 µm for ultra-fine filtration of algae and fine dust, the filtru de schimb CN 100 µm pentru utilizare zilnică, Filtru de schimb CN Dual 150 µm pentru cantități mai mari de frunze și filtru de schimb 200 microni simplu for large debris. Supporting these are the filter cover gasket, filter valve cover, kit capac spate pentru vană, flow channelizer și intake ducting — all of which work together to maintain the cyclonic suction that defines the XA iQ’s cleaning efficiency. Replacing a worn gasket or a cracked valve cover is a low-cost step that can restore full suction pressure without the need for a workshop visit.

Floating cable, power supply and body shell

Electrical reliability depends on the condition of the Cablu plutitor de 18 m and its cable clamp, as well as the Corp conector cu 3 pini and the Unitate de control CN Type 4 EU (power supply). The floating cable should be inspected at the start of each season: any visible kinking, jacket cracking or corroded connectors are signs that replacement is due. The body shell is available in two colour options to preserve the original appearance of your robot — the carcasă XA iQ CN în alb and the XA iQ carcasă corp CN în albastru Baracuda, both explicitly listed for the XA 4010 iQ, XA 4030 iQ, XA 4045 iQ and XA 4095 iQ. Ordering the correct shell by model ensures the locating clips and cable-exit points align precisely with the internal chassis.

Piese și accesorii pentru căruciorul de transport

The XA iQ series ships with a dedicated transport trolley that protects the robot between cycles and makes lifting a wet, 8 kg machine considerably easier. This diagram covers the complete trolley ecosystem: the mâner cărucior de transport, Tub cărucior de transport XA CNX Voyager, Kit de accesorii pentru căruciorul XA CNX Voyager, Cărucior parte inferioară completă CX20/CX35, Vortex transport trolley wheels (pack of 2) și componentele hardware asociate, inclusiv Șuruburi 4×12 mm Vortex (pachet de 5), șuruburi 4×16 mm (set de 5) și Șuruburi Vortex 4×25 mm (pachet de 5). Trolley wheels and fasteners are the most commonly lost or broken small parts; having the correct screw dimensions matters because the trolley frame is load-bearing and undersized or incorrect screws can strip the fixing points in the shell.

De ce contează piesele de schimb originale Zodiac

The XA 4010 iQ, XA 4030 iQ, XA 4045 iQ and XA 4095 iQ are engineered as a tightly integrated system. Each component — from the 12-tooth brush shaft sprocket to the filter cover gasket — is dimensioned to work within precise tolerances that maintain the cyclonic water flow and the robot’s balance in the water. Aftermarket alternatives may appear identical but can introduce small dimensional differences that reduce suction efficiency, accelerate wear on adjacent parts, or void your Zodiac warranty. All parts stocked on poolparthub.com are genuine Zodiac items sourced through authorised channels, ensuring exact fit, correct materials and full compatibility across all four WR references covered by this diagram.
