Zodiac RC 4130 TILE exploded view (WR000178)
Certified online store
Easy returns within 14 days
Spare parts list
Zodiac Screw 4*12 mm Zodiac Vortex (pack 5 pcs.)
4,95 €
Zodiac Handle transport trolley - R0565000
44,95 €
Zodiac Vortex Transport trolley wheels (pack 2 pcs.) - R0565100
54,95 €
Zodiac Screws 4*16MM (Set of 5) - R0608500
4,95 €
Zodiac - Complete handle PMS7712 - R0631905
44,95 €
Zodiac CyclonX Engine block - R0632000
399,95 €
Zodiac Cyclonx floating cable 15 meter - R0632100
219,00 €
Zodiac CyclonX Free Cassette - R0632200
112,00 €
Zodiac CyclonX Traction cassette - R0632300
169,00 €
Fluidra - Front Cover A-8 for RC 4030 Robotic Pool Cleaner
101,45 €
Zodiac CyclonX 100 Micron replacement filter - R0632600
69,95 €
Zodiac CyclonX 200 micron filter - R0632601
79,95 €
Zodiac CyclonX 60 micron Filter - R0632602
64,95 €
Zodiac CX20, CX35 Complete Lower Part Trolley - R0632800
74,95 €
Zodiac XA CNX Voyager trolley accessories kit - R0632900
44,95 €
Zodiac Control panel type 2C for CyclonX robots - R0633001
469,00 €
Zodiac – Propeller (CyclonX)
14,95 €
Zodiac TornaX Evacuation Rubbers (3 pcs.) – R0633300
14,95 €
Zodiac CyclonX Inner shell - R0633400
109,00 €
Zodiac CyclonX Flow channeler - R0633500
14,95 €
Zodiac CyclonX Handle holder - R0633600
29,95 €
Zodiac - CyclonX PMS7712 body casing - R0633704
39,95 €
Zodiac CyclonX Bottom plate - R0633800
29,95 €
Zodiac CyclonX Track straps (2 pcs.) - R0633900
89,95 €
Zodiac Connector body 3 pins - R0634100
39,95 €
Zodiac CyclonX Cable Float - R0634200
14,95 €
Zodiac CyclonX Track Wheel Key - R0634300
54,95 €
Zodiac XA CNX Voyager Transport trolley tube - R0634400
59,95 €
Zodiac Motor block shaft pin 4 Zodiac (5 pcs.) - R0657900
14,95 €
Zodiac CyclonX PVA Brush Kit (pack 2 pcs.) - R0718600
99,95 €
Description

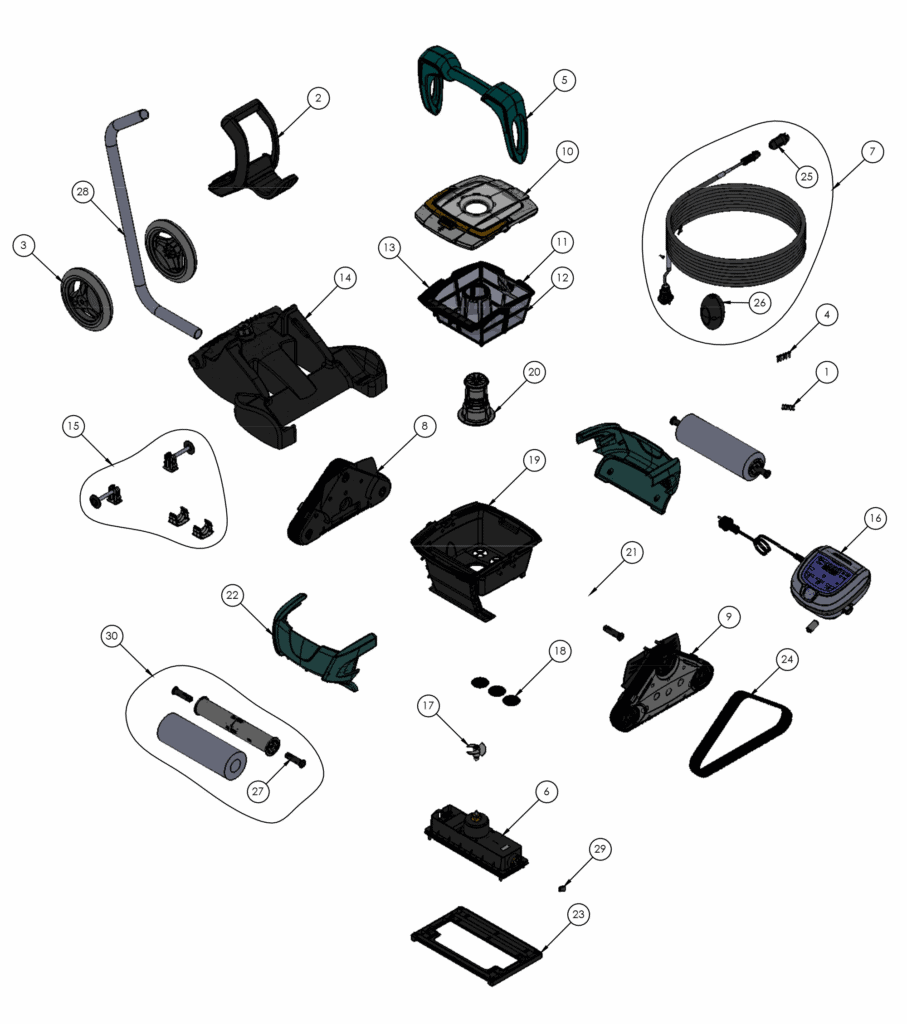

Zodiac RC 4130 TILE exploded view
Official Fluidra exploded view for the Zodiac RC 4130 TILE pool cleaning robot. Every numbered position below is an original spare part you can order directly.
| Position | Part number | Description |
|---|---|---|
| 1 | R0516700 | SCREWS 4*12 MM (X5) |
| 2 | R0565000 | TROLLEY HANDLE |
| 3 | R0565100 | TROLLEY WHEELS (*2) |
| 4 | R0608500 | SCREW 4*16MM (set of 5) |
| 5 | R0631905 | COMPLETE HANDLE C PMS7712 Z |
| 6 | R0632000 | COMPLETE MOTOR BLOCK CYCLONX |
| 7 | R0632100 | COMPLETE FLOATING CABLE CYCLONX 15 m |
| 8 | R0632200 | COMPLETE FREE GEAR BOX CYCLONX RAL9022 |
| 9 | R0632300 | COMPLETE GEAR BOX CYCLONX RAL9022 |
| 10 | R0632408 | COMPLETE COVER C A-8 |
| 11 | R0632600 | COMPLETE FILTER 100 CYCLONX ZODIAC |
| 12 | R0632601 | COMPLETE FILTER 200 CYCLONX ZODIAC |
| 13 | R0632602 | COMPLETE FILTER 60 CYCLONX ZODIAC |
| 14 | R0632800 | COMPLETE LOWER PART TROLLEY CYCLONX |
| 15 | R0632900 | TROLLEY CYCLONX ACCESSORIES |
| 16 | R0633001 | CONTROL BOX TYPE 2 C |
| 17 | R0633200 | IMPELLER CYCLONX |
| 18 | R0633300 | EXHAUST VALVE CYCLONX (SET OF 3) |
| 19 | R0633400 | BOWL CYCLONX |
| 20 | R0633500 | FLOW OUTLET CYCLONX |
| 21 | R0633600 | HANDLE SHAFT CYCLONX |
| 22 | R0633704 | BODY A PMS7712 C |
| 23 | R0633800 | BOTTOM PLATE CYCLONX |
| 24 | R0633900 | TRACK CYCLONX ZODIAC (SET OF 2) |
| 25 | R0634100 | CONNECTOR 3PTS BODY |
| 26 | R0634200 | CABLE FLOAT CYCLONX ZODIAC |
| 27 | R0634300 | TRACK WHEEL KEY CYCLONX |
| 28 | R0634400 | TROLLEY TUBE CYCLONX |
| 29 | R0657900 | MOTOR BLOCK SHAFT PIN Ø4 (SET OF 5) |
| 30 | R0718600 | BRUSH KIT C PVA (*2) |
