Zodiac W 432 exploded view (WR000337)
Certified online store
Easy returns within 14 days
Spare parts list
Zodiac Screw 4*12 mm Zodiac Vortex (pack 5 pcs.)
4,95 €
Zodiac Screws 4*16MM (Set of 5) - R0608500
4,95 €
Zodiac CyclonX Engine block - R0632000
399,95 €
Zodiac Cyclonx floating cable 15 meter - R0632100
219,00 €
Zodiac - Complete Fine Filter Canister 100µ for W 445 Robotic Pool Cleaner - R0632700
Zodiac - General purpose filter canister complete - R0632701
49,95 €
Zodiac - Complete Filter Canister 60 µm (Ultra-Fine Sand & Silt) - R0632702
60,95 €
Zodiac – Propeller (CyclonX)
14,95 €
Zodiac TornaX Evacuation Rubbers (3 pcs.) – R0633300
14,95 €
Zodiac CyclonX Inner shell - R0633400
109,00 €
Zodiac CyclonX Flow channeler - R0633500
14,95 €
Zodiac CyclonX Handle holder - R0633600
29,95 €
Zodiac CyclonX Bottom plate - R0633800
29,95 €
Zodiac Connector body 3 pins - R0634100
39,95 €
Zodiac CyclonX Track Wheel Key - R0634300
54,95 €
Zodiac - Replacement rubber tracks, set of 2 - R0657700
14,95 €
Zodiac - Cable float for Polaris P825 robotic pool cleaner - R0657800
9,95 €
Zodiac Motor block shaft pin 4 Zodiac (5 pcs.) - R0657900
14,95 €
Zodiac Support control unit - R0662600
39,95 €
Zodiac - Complete free gear box - R0715300
149,95 €
Zodiac - Complete gear box - R0715400
244,95 €
Zodiac CyclonX PVA Brush Kit (pack 2 pcs.) - R0718600
99,95 €
Zodiac - Pool Cleaner Main Body Section B White (Set of 2) for W 442 - R0909600
35,45 €
Zodiac - Complete Handle B for CyclonX W Line Robotic Cleaner (RAL9022) - R0909700
77,95 €
Zodiac - Complete Body C Cover Assembly (B-4) for CyclonX W-Line - R0909800
126,95 €
Zodiac - Robotic Pool Cleaner Control Box Type 2 (W 430) - R0909900
459,95 €
Description
Zodiac W 432 exploded view

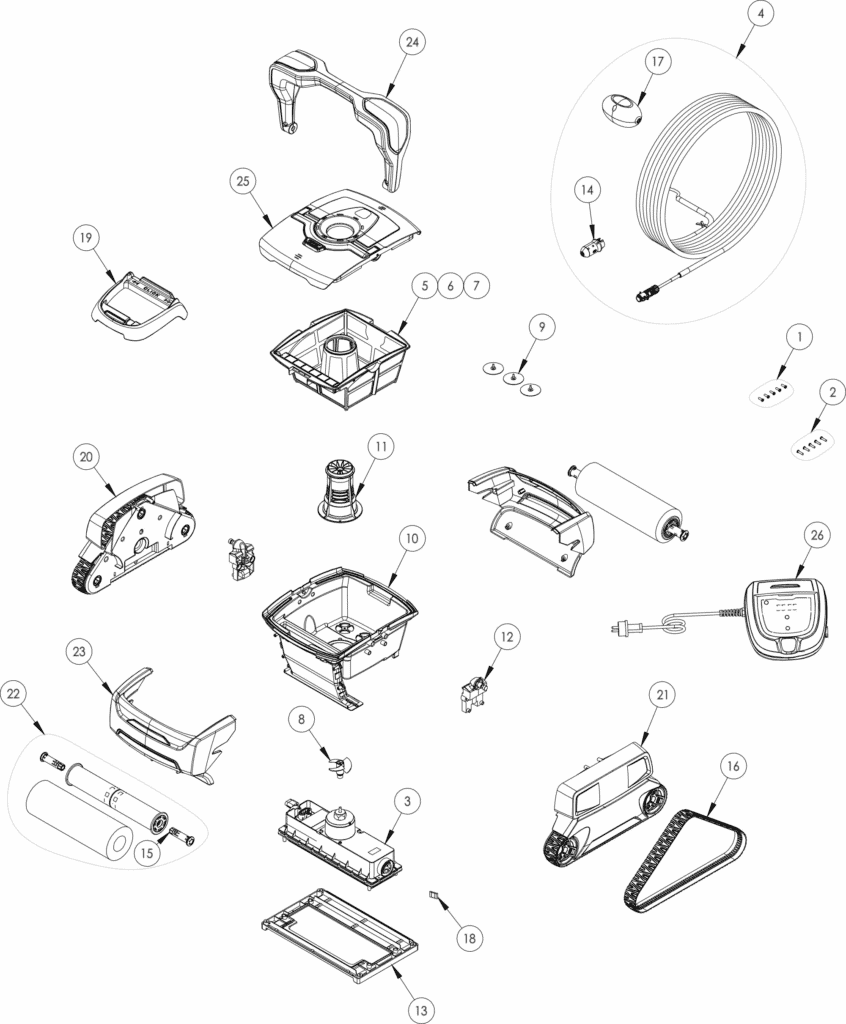

Official Fluidra exploded view for the Zodiac W 432 pool cleaning robot. Every numbered position below is an original spare part you can order directly.
| Position | Part number | Description |
|---|---|---|
| 1 | R0516700 | SCREWS 4*12 MM (X5) |
| 2 | R0608500 | SCREW 4*16MM (set of 5) |
| 3 | R0632000 | COMPLETE MOTOR BLOCK CYCLONX |
| 4 | R0632100 | COMPLETE FLOATING CABLE CYCLONX 15 m |
| 5 | R0632700 | COMPLETE FILTER 100µ C GP |
| 6 | R0632701 | COMPLETE FILTER 200µ C GP |
| 7 | R0632702 | COMPLETE FILTER 60µ C GP |
| 8 | R0633200 | IMPELLER CYCLONX |
| 9 | R0633300 | EXHAUST VALVE CYCLONX (SET OF 3) |
| 10 | R0633400 | BOWL CYCLONX |
| 11 | R0633500 | FLOW OUTLET CYCLONX |
| 12 | R0633600 | HANDLE SHAFT CYCLONX 2 UT |
| 13 | R0633800 | BOTTOM PLATE CYCLONX |
| 14 | R0634100 | CONNECTOR 3PTS BODY |
| 15 | R0634300 | TRACK WHEEL KEY CYCLONX |
| 16 | R0657700 | TRACK C GP (SET OF 2) |
| 17 | R0657800 | CABLE FLOAT C GP |
| 18 | R0657900 | MOTOR BLOCK SHAFT PIN Ø4 (SET OF 5) |
| 19 | R0662600 | CONTROL UNIT BASE |
| 20 | R0715300 | COMPLETE FREE GEAR BOX W C RAL9022 |
| 21 | R0715400 | COMPLETE GEAR BOX W C RAL9022 |
| 22 | R0718600 | BRUSH KIT C PVA (*2) |
| 23 | R0909600 | BODY MPP B WHITE 2 UT |
| 24 | R0909700 | COMPLETE HANDLE B RAL9022 |
| 25 | R0909800 | COMPLETE COVER C B-4 |
| 26 | R0909900 | CONTROL BOX TYPE 2 C |
