Pentair Supermax S5P1R pool pump

Pentair Supermax S5P1R pool pump

The Pentair Supermax S5P1R pool pump is a self priming, high efficiency circulation pump designed for residential swimming pools. With its robust wet end, quiet motor and easy to service design, this pump provides reliable filtration and water movement for in ground and above ground pools equipped with sand, cartridge or glass media filters.

Main characteristics of the Pentair Supermax S5P1R

• High efficiency pool circulation pump for residential pools.
• Self priming design for installations above or slightly above water level.
• Large capacity prefilter basket to capture leaves and debris.
• Transparent lid with quick access locking ring for easy inspection.

Hydraulic design and performance

The Pentair Supermax S5P1R uses a carefully engineered hydraulic body and diffuser to deliver strong, stable flow at typical pool system pressures. The pump is designed to work with standard residential filtration systems, ensuring good turnover rates and clean, clear water when combined with correctly sized filters and plumbing.

• Optimised impeller and diffuser combination for efficient circulation.
• Suitable for typical domestic pool volumes when correctly sized.
• Designed for continuous duty under normal filtration conditions.

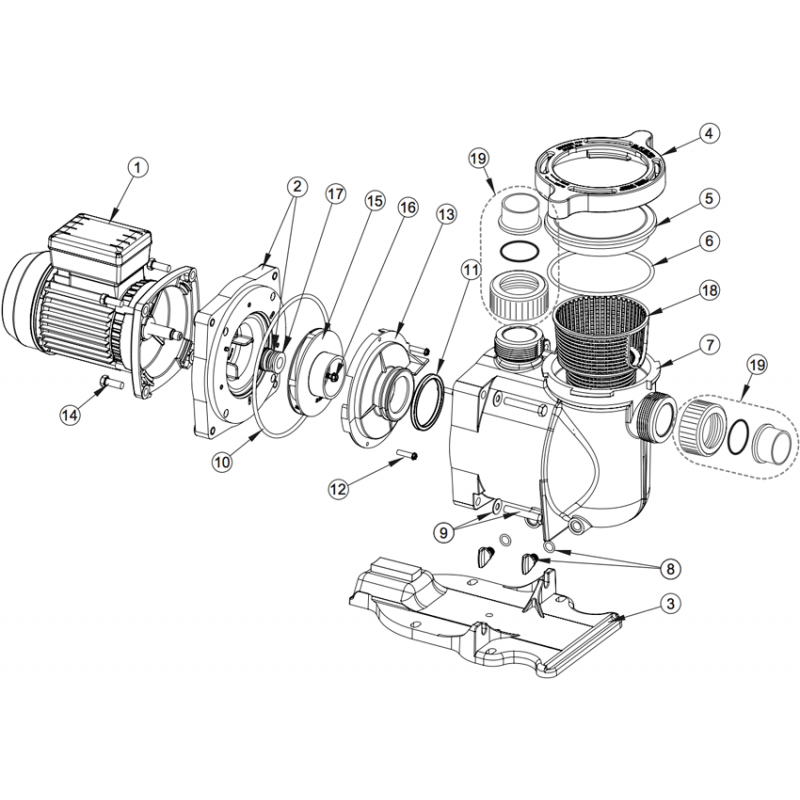

Construction and components

This pump is built around a corrosion resistant composite housing, a robust mechanical seal and a high quality motor. The large strainer basket protects the impeller from larger debris, while the clear lid makes it easy to check the basket load and water level during daily operation.

• Glass filled thermoplastic housing for strength and corrosion resistance.
• Generous prefilter basket with easy grip handle for fast cleaning.
• Clear pump lid with locking ring for tool free access.
• Mechanical shaft seal designed for pool environments.

Installation and connection

The Pentair Supermax S5P1R is mounted on a stable base and connected to the filtration circuit using dedicated union fittings. Correctly installed unions make future maintenance easier and help keep the pump aligned with the pipework.

• Mounting base designed for secure, vibration limiting installation.
• Union connections for quick removal and reconnection of the pump.
• Suitable for standard PVC pressure pipe used in residential pool plant rooms.

Maintenance and available spare parts

Regular basic maintenance keeps the Supermax S5P1R operating efficiently. The pump is designed so that common wearing parts can be replaced without changing the complete unit, making it a service friendly choice for pool owners and technicians.

• Routine cleaning of the prefilter basket and inspection of the lid o-ring.
• Replacement of mechanical seal, gaskets and unions when required.
• Wide availability of original style spare parts through PoolParthub.com.

With correct installation, balanced water and periodic maintenance, the Pentair Supermax S5P1R pool pump offers many seasons of dependable performance in residential swimming pools.
