NaanDan - Hadar 7110 Inverted Micro Sprinkler 1.0 mm 360° Bayonet M Purple - 7020939

NaanDan – Hadar 7110 Inverted Micro Sprinkler 1.0 mm 360° Bayonet M Purple

With a 1.0 mm purple nozzle delivering 50 l/h at 2 bar and a 4.2 m wetted radius, this Hadar 7110 inverted micro sprinkler is the precision low-volume choice for overhead irrigation lines. Designed to operate within a recommended pressure range of 1.5–3.0 bar, it suits a wide variety of controlled growing environments. The 360° full-circle pattern provides complete, uniform coverage directly beneath the sprayline.

Inverted mounting & overhead installation

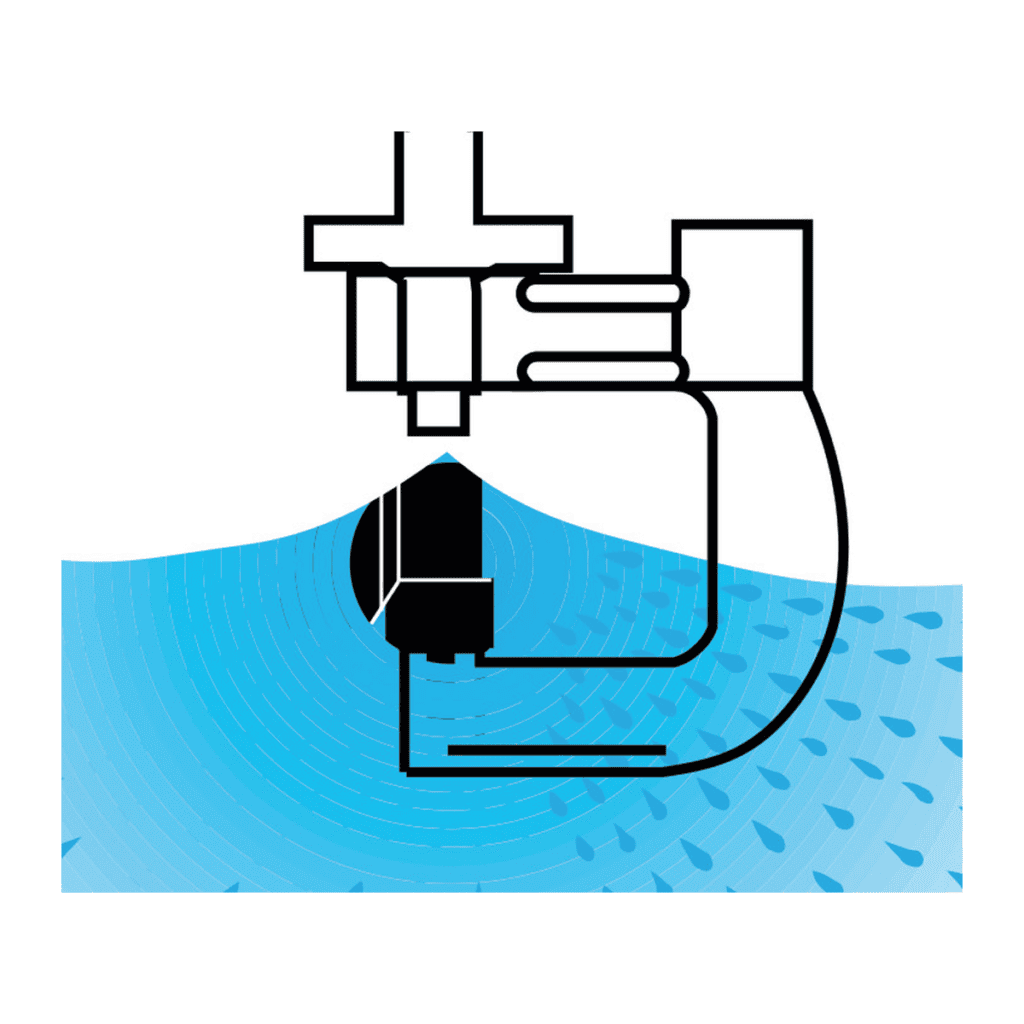

The Hadar 7110 inverted is mounted upside down on overhead spraylines, directing water downward while minimising drip and wetting of the sprayline itself. This makes it particularly well suited to tunnels, glasshouses, and nursery structures where a clear working surface beneath the lines is essential. The bayonet M connection allows fast, tool-free fitting and removal directly on the overhead pipe system.

Nozzle colour coding & flow selection

NaanDan’s colour-coded nozzle system makes it straightforward to identify and verify flow rates across a system at a glance — the purple nozzle denoting the 1.0 mm orifice. The modular bayonet construction means nozzles and inserts are interchangeable within the 7110 family, allowing flow rates and patterns to be updated in the field without replacing the full sprinkler body. A filtration requirement of 130 micron (120 mesh) applies to this nozzle size.

Leakage prevention & system compatibility

The Hadar 7110 inverted is fully compatible with NaanDan’s optional Leakage Prevention Device (LPD), which holds the line full of water between irrigation cycles and enables the entire section to open simultaneously at start-up. The sprinkler is also compatible with antimist bayonet connectors and suspended stands for high-line installations, offering considerable flexibility for permanent and seasonal greenhouse structures alike.
