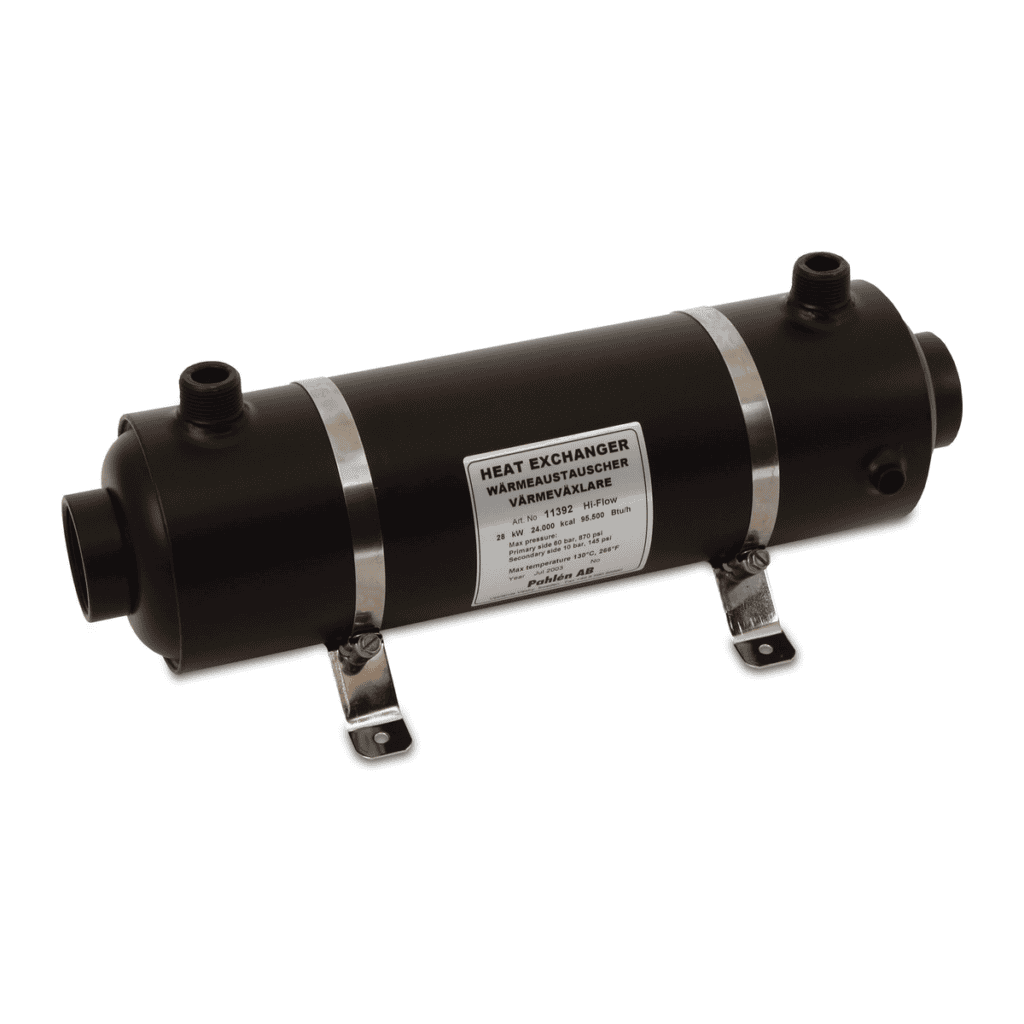

Heat exchanger stainless steel 316 male x female thread HF 75
With a secondary (pool-side) flow capacity of 300 litres per minute through a 2″ connection, and a primary system rated to 30 bar, the HF 75 is a high-performance shell-and-tube heat exchanger built for demanding commercial and large domestic pool installations. Its 316-grade stainless steel construction provides robust resistance to chlorinated fresh water while handling the high-pressure boiler or solar circuits common in European plant rooms.
Primary & secondary circuit ratings
The primary circuit accepts up to 60 litres per minute at pressures to 30 bar, making it compatible with a wide range of boiler, solar thermal, and heat-pump primary loops. The secondary (pool water) side is rated to 8 bar with a generous 300 l/min flow capacity through its 2″ ported connection, allowing low pressure drop even at full circulation speeds — an important consideration for large pool volumes where return-water temperature must be kept tightly controlled.
Material & corrosion resistance
Fabricated entirely from AISI 316 stainless steel, the HF 75 offers excellent resistance to the chlorinated fresh water found in standard pool circuits. Note that for salt-water pools or installations using a salt chlorinator, a titanium-grade heat exchanger is generally recommended, as prolonged exposure to elevated chloride concentrations can cause pitting in stainless steel grades over time.
Physical dimensions & installation
At 702 mm overall length (A), 129 mm body width (B), and 532 mm between ports (C), the HF 75 is a substantial unit suited to a dedicated plant-room installation. The male-thread × female-thread connections on both circuits simplify integration into existing pipework without requiring specialist couplings, and the unit can typically be oriented horizontally or vertically depending on available space and pipework layout.
Additional information
| Brand: | Unbranded |
|---|---|
| Connection: | male thread x female thread |
| Material: | Stainless steel 316 |
| Connection type: | Male thread × female thread |
| Secondary system size: | 2" |
| Flow rate – secondary: | 300 l/min |
| Flow rate – primary: | 60 l/min |
| Max pressure – primary: | 30 bar |
| Max pressure – secondary: | 8 bar |
| Dimensions (A × B × C mm): | 702 × 129 × 532 |
In details
- Very high 300 l/min secondary flow suits large pools
- 30 bar primary rating compatible with most boiler systems
- AISI 316 stainless steel resists chlorinated water corrosion
- Male × female thread connections simplify pipework integration
- Robust construction handles high-pressure primary circuits reliably
- Not recommended for salt-water pools or salt chlorinator systems
- Large 702 mm unit requires dedicated plant-room space
