Flotide/MEGA - PVC-U Ball Valve DN50 63mm Glue Socket 16 bar (Safe 600) - 0112106

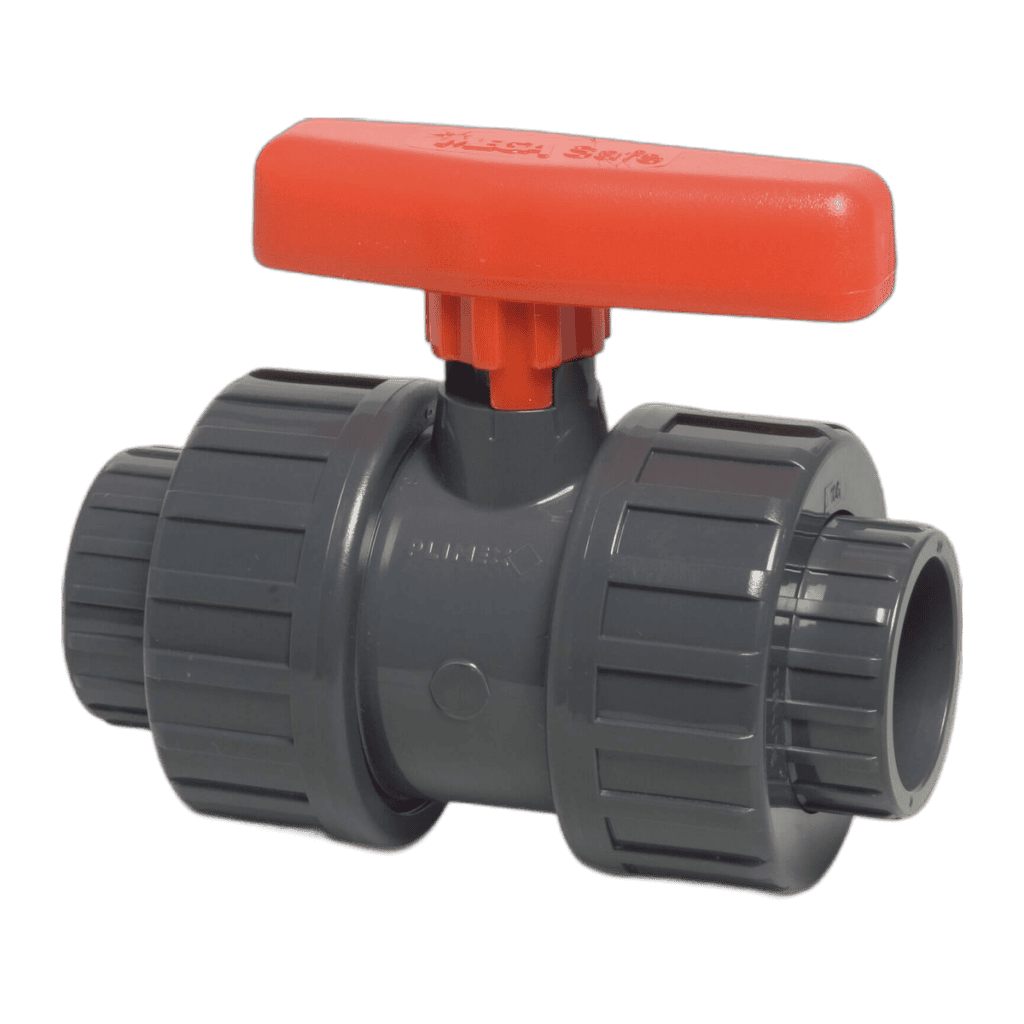

Flotide/MEGA – PVC-U Ball Valve DN50 63mm Glue Socket 16 bar (Safe 600)

This Profec Safe 600 ball valve is a full-bore, double-union PVC-U shut-off valve designed for controlling or completely isolating flow in pressurised pipework. Sized at 63 mm (DN50) with solvent-cement glue socket connections, it handles a maximum working pressure of 16 bar, making it well suited to swimming pool plant rooms, water treatment systems, and industrial fluid circuits.

Design & Construction

The Safe 600 features a double swivel (union) design that allows the valve body to be removed for inspection or replacement without cutting into the pipework. The ball is secured within the body for added safety under pressure, and seals are manufactured from Hytrel and EPDM — materials chosen for their chemical resistance and long service life. All glue socket connections conform to EN-ISO 1452-3 for dimensional accuracy and compatibility within PVC pressure pipe systems.

Compatibility

This valve is designed for 63 mm OD PVC-U pipework (nominal bore DN50) and is directly solvent-welded into the pipework using standard PVC solvent cement. It is suitable for pool installations, chemical dosing lines, irrigation systems, and any water technology application requiring reliable on/off control up to 16 bar. The Safe 600 range is available in multiple sizes; ensure this 63 mm variant matches your existing pipe diameter before ordering.

Installation

Connection is made by solvent-cementing the glue sockets directly onto prepared PVC-U pipe ends following standard EN-ISO 1452-3 procedures. The double-union construction means the central valve section can be unbolted and swapped out at a later date without disturbing the cemented pipe joints, saving time on future maintenance.
