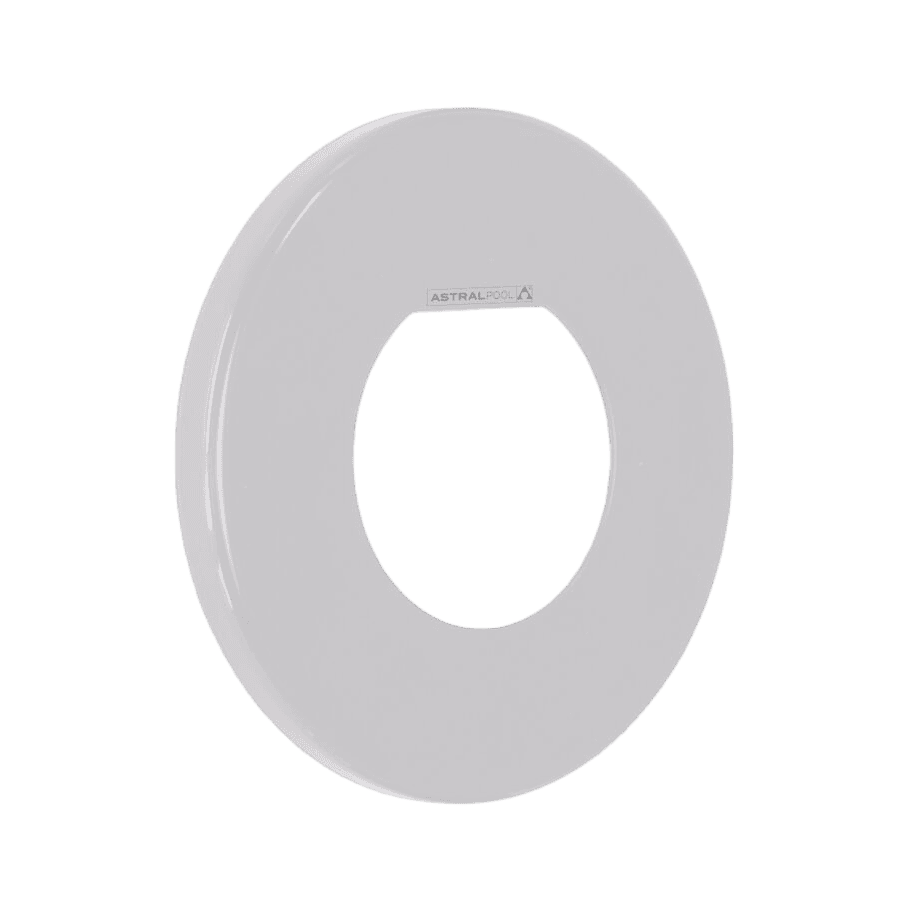

Astralpool FlexiMini Pure trim ring — grey - 77577-CL-129
Shipping 1-3 weeks
Certified online store
Easy returns within 14 days
Looking for advice?
Astralpool trim ring / escutcheon for liner pool return fitting nozzle 75778 — beige
This is the genuine Astralpool decorative trim ring (embellecedor) designed to finish the face of the return fitting nozzle code 75778 in liner pools. It seats flush against the pool wall surface, concealing the raw cut edge of the liner around the nozzle aperture and giving the installation a clean, finished appearance. At 119 mm outer diameter and 9 mm depth it is sized precisely to the 75778 nozzle body — no trimming or adaptation required.
What this trim ring does in the return fitting
The trim ring is the outermost visible component of the return fitting assembly. It clips or screws over the front face of the nozzle body, pressing the liner flat against the wall flange and preventing water from tracking behind the fitting. Without it, the liner edge lifts over time and the nozzle face looks unfinished. Replacing a cracked or discoloured ring restores both the watertight seal at the wall face and the visual finish of the fitting.
Which return fitting models it fits
This ring is confirmed to fit the Astralpool liner pool return fitting nozzle code 75778 only. The 75778 is a standard ABS wall-mount return nozzle for liner pools with an outer 2″ thread. Do not fit this ring to any other nozzle code — the diameter and clip geometry are specific to this body. If you are unsure of your nozzle code, check the stamping on the back of the existing nozzle body before ordering.
Signs it needs replacing
Inspect the trim ring if you notice the liner pulling away from the nozzle face, if the ring is visibly cracked or chalked from UV exposure, or if the beige colour has faded unevenly and is detracting from the pool finish. Chlorinated water accelerates surface degradation on ABS when the stabiliser breaks down; replacement is straightforward and does not require draining the pool beyond the nozzle height.
How to install it
Lower the water level below the return fitting. Remove the existing trim ring by unscrewing or unclipping it from the 75778 nozzle body. Press or thread the new ring onto the nozzle face until it seats fully against the liner and wall flange. Check that the liner is lying flat beneath the ring’s inner edge before refilling. No adhesive or sealant is required — the ring’s geometry provides the mechanical retention and face seal.
Additional information
| Brand: | Astralpool |
|---|---|
| Type: | Trim ring / escutcheon (decorative face ring for return fitting) |
| Fits: | Astralpool liner pool return fitting nozzle 75778 |
| Material: | ABS |
| Colour: | Beige |
| Outer diameter: | 119 mm |
| Included: | 1 × trim ring |
| Astralpool part reference: | 77577-CL-090 |
| Depth / thickness: | 9 mm |
In details
- Exact OEM dimensions for nozzle 75778 — no modification needed.
- ABS construction resists pool chemicals and UV degradation.
- Restores watertight liner-to-wall face seal on the nozzle.
- Beige colour matches original Astralpool liner fittings throughout.
- Fits without draining: only lower water below the fitting.
- Compatible with nozzle code 75778 only — verify your code before ordering.
- Replacing a heavily scaled ring may need a strap wrench to unscrew the old one without scratching the liner.
