Hayward - Pool pump PWL 0.33HP 50mm glue socket 230VAC - 7038742

Hayward Pool pump PWL 0.33HP 50mm glue socket 230VAC

With a rated flow of 6.26 m³/h at 230 VAC and a compact overall length of 504 mm, this single-speed Hayward Powerline pump is sized for smaller residential pools and above-ground installations where space and simplicity matter. The 50 mm glue-socket connection integrates cleanly into standard European PVC pipework, and the low 2 A current draw keeps running costs modest for everyday filtration cycles.

Hydraulic performance & pool sizing

At 6.26 m³/h the PWL 0.33HP is well suited to pools up to roughly 25–30 m³ when targeting a 4-hour turnover cycle — the benchmark recommended by Hayward for effective residential filtration. The Noryl impeller resists chemical attack and mechanical wear, maintaining consistent output over the pump’s service life without the corrosion risks associated with metallic alternatives.

Motor, materials & protection

The motor draws just 2 A at 230 VAC and is housed behind a polycarbonate cover that withstands poolside UV and chemical exposure. The stainless-steel 304 shaft and mechanical seal provide corrosion resistance where the wet and dry sides of the pump meet — the most stress-prone zone in any circulation pump. Maximum handled water temperature is 35 °C, covering warm summer pool conditions across European climates.

Mounting & plumbing connection

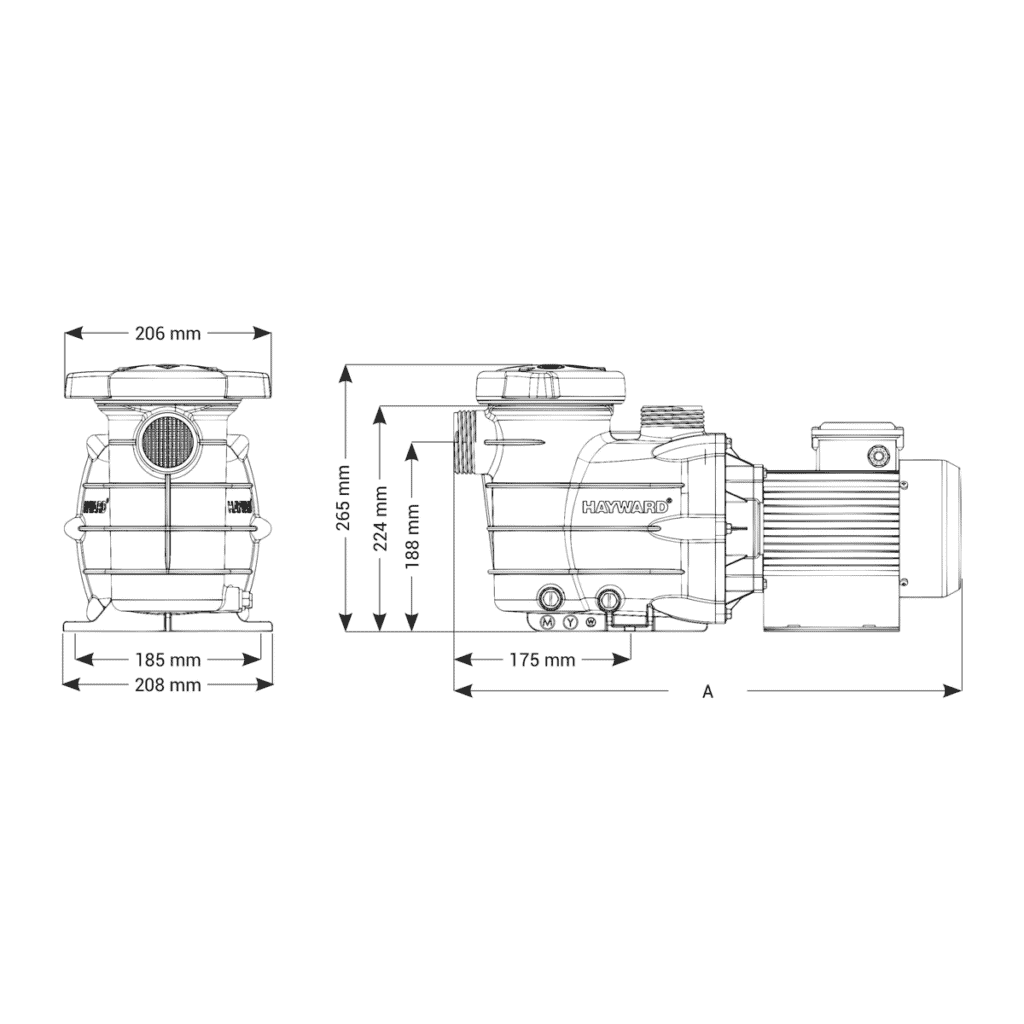

The 50 mm glue-socket ports suit direct solvent-weld assembly with standard European PVC pipe, giving installers a secure, leak-free joint without union fittings. Weighing 7.9 kg and spanning 504 mm in length, the pump sits on a standard baseplate footprint and can be installed in compact plant rooms or outdoor equipment bays with equal ease.
