Zodiac – Relay kit (relay + 24V wiring) – R0658100

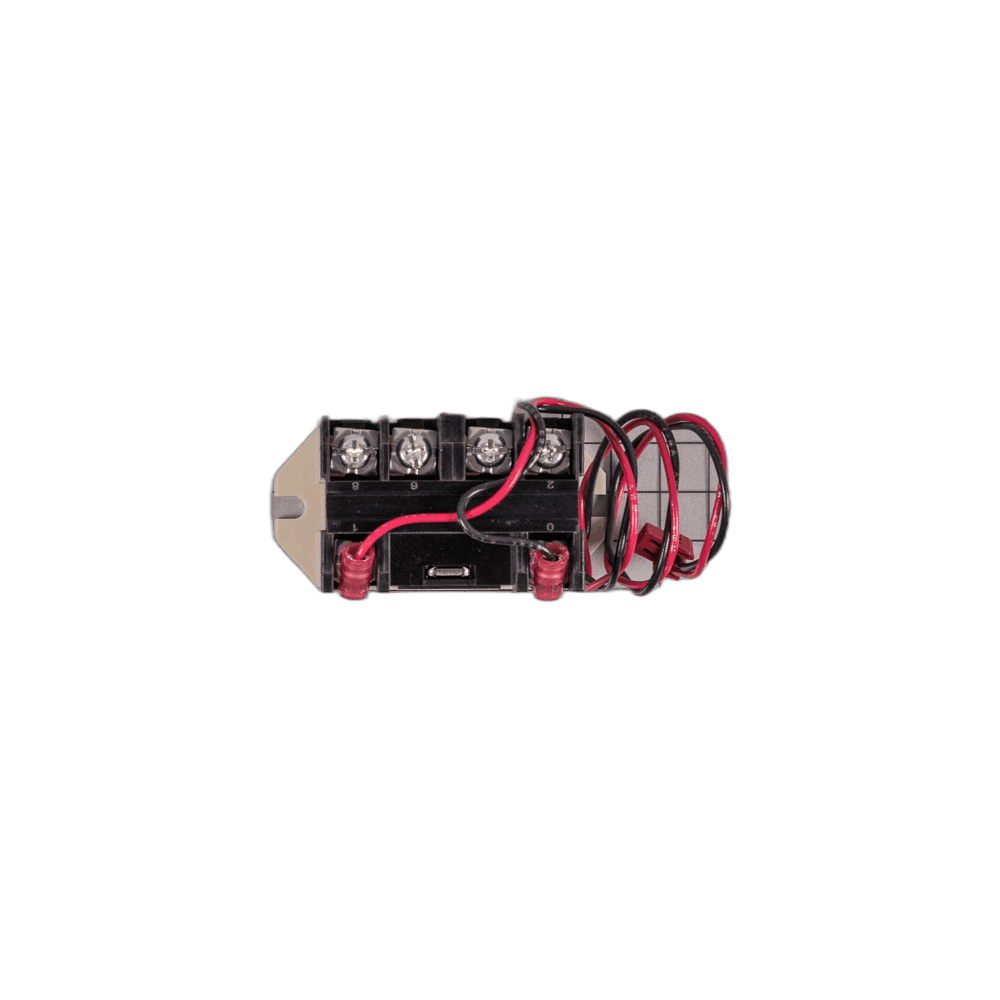

The Zodiac R0658100 is an OEM replacement relay kit for the Zodiac AquaLink Tri pool and spa automation system. It includes the relay unit together with its pre-assembled 24V wiring harness, providing everything needed to restore switching functionality within the AquaLink Tri control cabinet. Relays are critical switching components that activate pool equipment such as pumps, lights, heaters, and valves on command from the automation controller. Over time, relays can fail due to high cycling loads, electrical surges, or normal wear, leading to unresponsive or stuck outputs.

Using a genuine Zodiac replacement kit ensures that the relay specifications — including coil voltage, contact rating, and physical mounting — exactly match the original design of the AquaLink Tri. The included 24V wiring harness allows for a clean, direct swap without the need to source additional components or improvise connections.

Compatibility and installation

The R0658100 relay kit is designed specifically for the Zodiac AquaLink Tri automation system. It is not a universal relay and should only be installed in compatible AquaLink Tri control units. Installation involves accessing the control cabinet, disconnecting the failed relay and its wiring, and fitting the new assembly in its place. Basic electrical knowledge and familiarity with the AquaLink Tri interior is recommended before undertaking the replacement. Always disconnect mains power to the unit before working inside the cabinet.

As a special-order item sourced directly from the manufacturer, lead times are typically 2 to 5 weeks. Plan maintenance around this lead time to minimise disruption to your pool system.

Suitability and application

This relay kit is suitable for pool technicians and AquaLink Tri owners who have identified a faulty relay output on their automation system. Whether a specific circuit has stopped switching or the relay is chattering or overheating, the R0658100 provides a straightforward, factory-correct solution. It supports the continued reliability of the AquaLink Tri system and eliminates the risk of using mismatched third-party relay components that could affect performance or safety.
