Zodiac - One way valve for pH acid feed - R0738100

Zodiac – One way valve for pH acid feed – R0738100

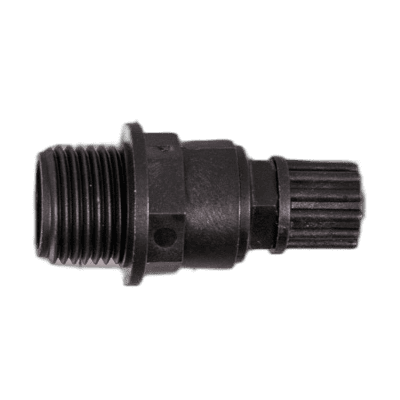

The Zodiac R0738100 is a genuine OEM replacement one way (non-return) valve designed specifically for the acid feed line in Zodiac’s range of pH dosing and chlorinator systems. Its primary function is to prevent backflow of pool water or dosing chemicals back into the peristaltic pump or acid reservoir, protecting the integrity of the entire pH correction system. This small but critical component ensures that acid is only able to travel in one direction — from the reservoir toward the injection point in the pool’s return line — which is essential for both accurate dosing and long-term equipment safety.

Technical characteristics and compatibility

The valve is a ½” (half-inch) non-return injection valve, constructed from chemical-resistant materials suited to continuous exposure to pH-reducing acids such as hydrochloric (muriatic) acid. The one-way mechanism relies on a simple and reliable internal check mechanism that opens under forward dosing pressure and closes immediately when flow ceases or reversal is attempted, preventing suck-back. This design requires no external power and no manual adjustment, making it a passive but highly dependable safety component.

The R0738100 is compatible with a wide range of Zodiac pH and chlorination systems, including the Zodiac TRi series, the eXO iQ pH, iQ PRO, pH Perfect, POD, and Hydroxinator product lines. It is a direct-fit genuine spare part, meaning no modifications are required during installation — the valve simply replaces the worn or failed original component in the existing acid feed circuit.

Suitability and buying context

This valve is intended for pool owners and installers who maintain Zodiac automatic pH dosing or combined chlorination and pH correction systems. Over time, the internal check mechanism of a one way valve can wear, crack, or lose its seal due to constant chemical exposure, leading to backflow, inaccurate pH dosing, or damage to connected equipment. Replacing a faulty valve with a genuine Zodiac part ensures the system continues to operate as designed. It is suitable for both residential and light commercial pool installations where Zodiac pH management equipment is fitted. Given its low cost and the critical role it plays in protecting the dosing system, it is also worth keeping one in stock as a service spare.
