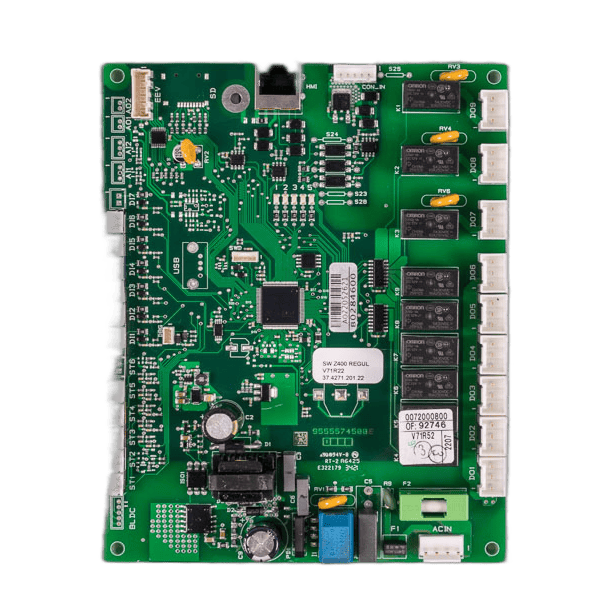

The Zodiac R0811700 is the original manufacturer replacement main control board (A1 card) for the Zodiac Z400 pool heater, specifically designed for units manufactured before 2019. This PCB (printed circuit board) serves as the electronic brain of the Z400 heater, managing all core operational functions including ignition sequencing, burner control, temperature regulation, safety monitoring, and communication with the HMI (human-machine interface) display panel. Replacing a faulty or damaged main board with this genuine OEM part restores the heater to full factory specification, ensuring reliable and safe operation.

As the primary control unit within the Z400 gas heater, the A1 main card coordinates all electronic signals between sensors, the gas valve, igniter, fan, and user interface. It processes input from temperature sensors and safety devices to maintain precise water heating cycles while responding to fault conditions. The board is engineered specifically for pre-2019 Z400 models and is not interchangeable with the updated board used in 2019 and later production runs, making it essential to confirm your heater’s manufacture date before ordering. This is a genuine Zodiac OEM spare part, ensuring full electrical and mechanical compatibility with the original heater assembly.

Technical details and compatibility

The R0811700 main control board is a direct replacement component listed in the official Zodiac Z400 spare parts catalogue. It is referenced under position 23 in the Z400 exploded parts diagram and pairs with the HMI cover (R0817800) and other Z400-specific components. The board is designed for installation by a qualified technician familiar with gas appliance electronics, as it interfaces directly with high-voltage ignition circuits and gas control systems. Correct installation ensures that all heater safety interlocks and operational programs function exactly as the original factory configuration.

Suitability and application

This replacement main board is intended exclusively for Zodiac Z400 pool and spa heaters produced before 2019. The Z400 is a residential gas-fired pool heater designed for in-ground and above-ground pool installations. If your Z400 heater is displaying persistent fault codes, failing to ignite, showing erratic temperature behaviour, or has suffered an electrical fault, the main control board is a common component to inspect and replace. Always verify the manufacture date of your Z400 unit before purchasing, as the post-2019 Z400 uses a different main card. This is a genuine Zodiac spare part, recommended for use wherever originality, safety certification compliance, and long-term reliability are priorities.
