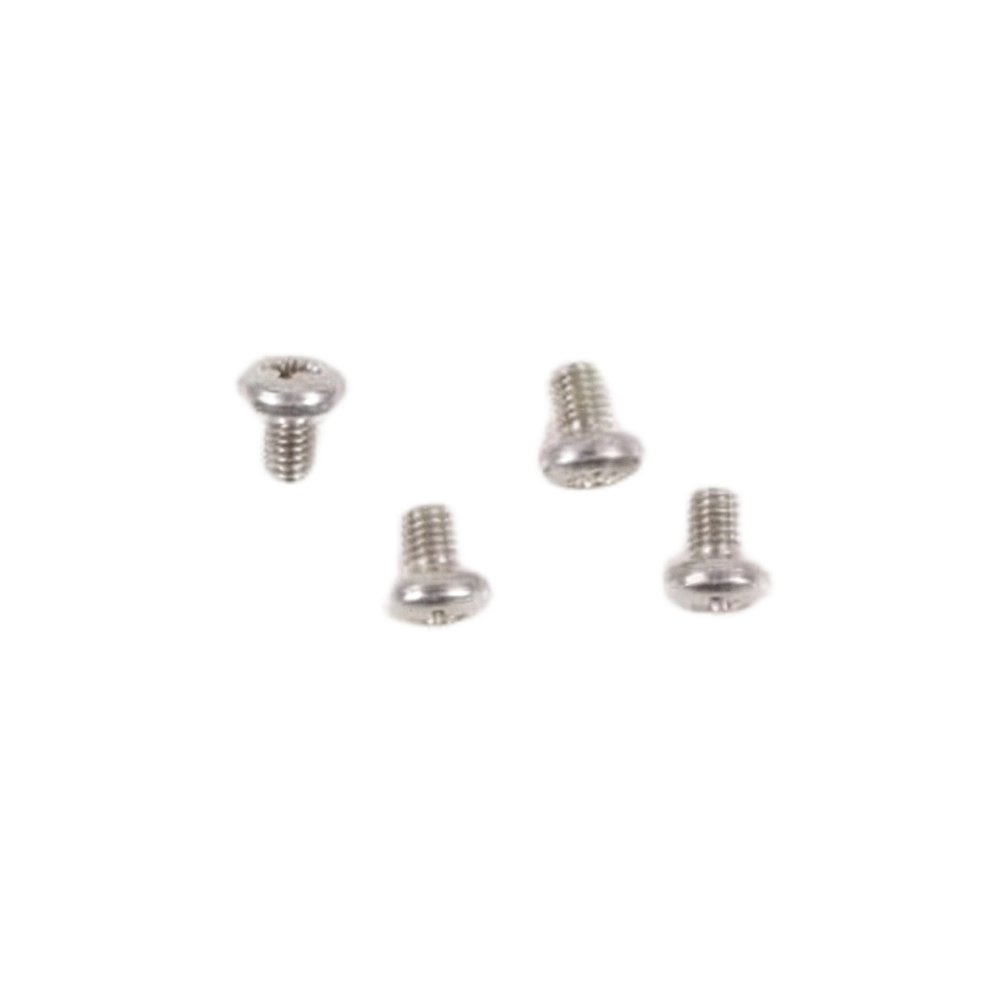

Zodiac lower hood fixing screw M4 x 6 mm pack of 4 R0741400
The Zodiac lower hood fixing screw M4 x 6 mm pack of 4 R0741400 is the original screw set used to secure the lower control hood on Zodiac Tri and Hydroxinator MagnaPool salt chlorinators. With the correct M4 x 6 mm dimensions and factory matching head design, this pack restores a solid, vibration resistant fixation of the plastic covers around the electronic control unit.
Main features of the Zodiac M4 x 6 mm screw set
- Original Zodiac M4 x 6 mm fixing screws for the lower hood of the control unit.
- Supplied as a pack of four screws for a complete replacement of the original hardware.
- Correct length and thread to secure the plastic lower hood without damaging the casing.
- Designed for use in warm, humid pool technical rooms with saltwater atmosphere.
Compatibility and applications
The R0741400 screw set is used on multiple Zodiac salt chlorinators where it appears in the exploded view as “tornillo M4x6 mm de fijación inferior del capó”. It secures the lower plastic hood of the control box and is part of the standard housing hardware.
- Zodiac Tri 10, 18, 22 and 35 salt chlorinators.
- Zodiac Tri Expert 10, 18, 22 and 35.
- Zodiac Tri Expert LS 10 and 18.
- Zodiac Hydroxinator and Hydroxinator MagnaPool control units.
If the parts list for your unit specifies M4 x 6 mm lower hood fixing screws with reference R0741400, this pack is the correct replacement set.
When to replace the lower hood fixing screws
Even though screws are not typical wear parts, they can be damaged or lost during servicing or by corrosion in a damp technical room. Missing or worn screws may leave the hood loose, which can cause vibration, noise or stress on the plastic housing.
- Replace screws that are corroded, stripped or bent and no longer tighten correctly.
- Use this pack when reassembling the hood after replacing electronics, covers or brackets.
- Restore all four fixing points if one or more original screws have been lost.
Installation guidelines
Fitting the Zodiac lower hood fixing screw M4 x 6 mm pack of 4 R0741400 is simple and can be carried out during routine maintenance, always with the unit powered off.
- Disconnect the chlorinator from the mains before opening or adjusting the control box.
- Position the lower plastic hood correctly on the control unit, aligning all fixing holes.
- Insert each new M4 x 6 mm screw by hand first to avoid cross threading in the plastic.
- Tighten the screws evenly until the hood is firmly seated, without over tightening or deforming the cover.
- Check that the hood is stable and that no gaps remain where dust or splashes could enter.
Using the original R0741400 screw set ensures that the lower hood remains securely fixed, protecting the internal electronics and maintaining a clean, professional finish on the control unit.
