Zodiac - Electrical box Z400 TD8 - R0811500

Zodiac – Electrical box Z400 TD8 – R0811500

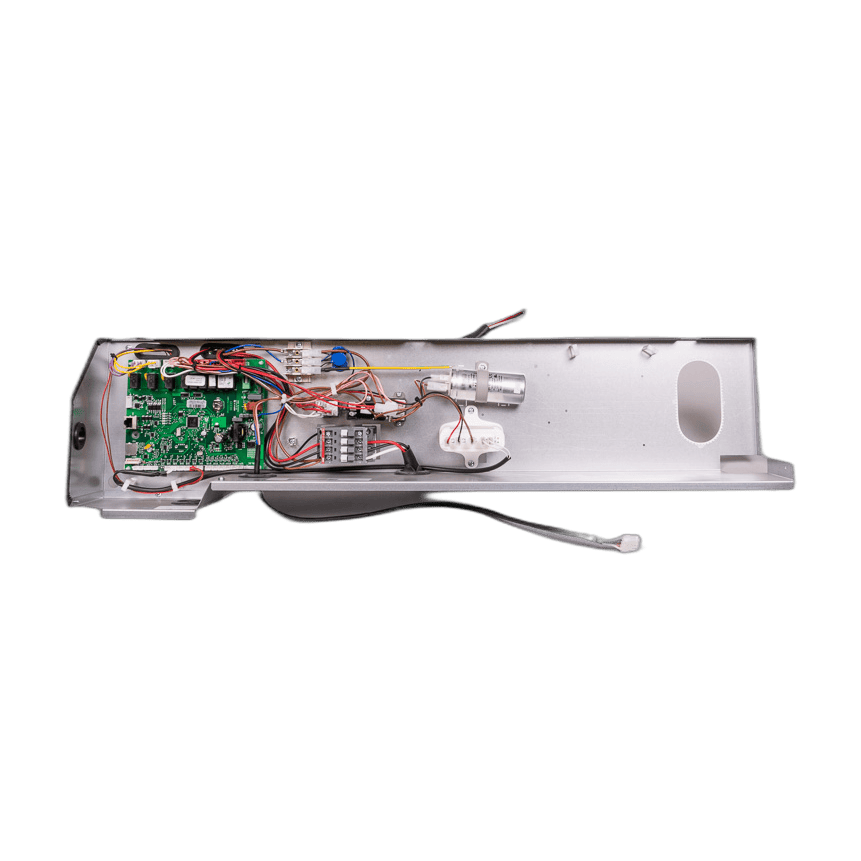

The Zodiac Electrical Box Z400 TD8 (SKU: R0811500) is an original manufacturer replacement electrical control box designed specifically for Zodiac Z400 series heat pumps fitted with the TD8 configuration. This component houses the essential electrical and control circuitry that governs the operation of the heat pump, including power distribution, control logic, and interfacing between internal components such as the compressor, fan motor, and sensors. Replacing a faulty or damaged electrical box with this genuine Zodiac part restores the unit to its original factory specification, ensuring reliable and safe long-term operation.

Technical characteristics and compatibility

This electrical box is purpose-built for the Zodiac Z400 heat pump range with the TD8 designation, distinguishing it from the TD9 variant (R0815100). The enclosure is engineered to Zodiac’s original design tolerances, meaning it integrates directly with the existing wiring harness, mounting points, and internal layout of compatible Z400 units without modification. As an OEM spare part, it carries the same electrical ratings and component quality as the original factory-installed unit. The box is designed to handle the voltage and current demands of the Z400 heat pump’s operational cycle, providing stable control across heating and defrost modes. Installation should be performed by a qualified technician familiar with heat pump electrical systems, as the component involves mains voltage connections.

Suitability and practical buying context

This replacement electrical box is intended for owners, service technicians, and pool professionals maintaining or repairing a Zodiac Z400 TD8 heat pump. It is the correct choice when the original electrical box has failed due to component burnout, water ingress, or electrical fault, and where a full unit replacement is not desired or economically justified. Before ordering, confirm your Z400 unit carries the TD8 designation rather than the TD9, as the two models use different electrical boxes. Using a genuine Zodiac replacement part ensures warranty compliance where applicable and avoids compatibility issues associated with aftermarket alternatives. This part is not suitable for any other heat pump brand or series.
