Zodiac – Cable PCB main card / HMI – R0818800

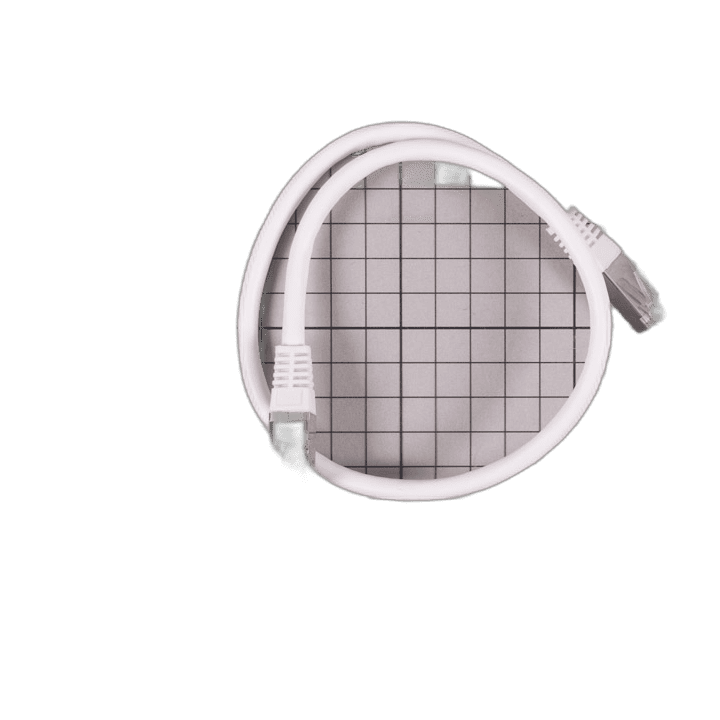

The Zodiac R0818800 is an original replacement cable designed to connect the PCB main control card to the HMI (Human Machine Interface) panel on compatible Zodiac pool equipment. This cable serves as the communication and power link between the central electronic control board and the user-facing display or control interface, enabling commands, status information, and sensor data to pass reliably between the two components. Without a properly functioning connection cable, the HMI panel may fail to display correctly, respond to inputs, or communicate control signals to the main board — making this a critical spare part for restoring full system operation.

Technical characteristics and compatibility

The R0818800 is an OEM Zodiac spare part manufactured to the exact specifications required for correct integration within supported Zodiac pool systems. Based on catalogue references from the Zodiac 2020 and 2023 residential product lines, this cable is confirmed as compatible with the Zodiac Z400iQ range of pool equipment. The cable is engineered to maintain signal integrity across the full operating environment of a pool installation, including exposure to humidity and temperature variations typical in plant room or outdoor equipment housing contexts. As an original manufacturer part, connector types, cable length, and shielding are matched precisely to the design requirements of the host system — ensuring plug-and-play replacement without modification. Using a non-original or incompatible cable risks communication errors, erratic HMI behaviour, or permanent damage to the control electronics.

Suitability and application

This cable is intended exclusively as a replacement spare part for Zodiac pool control systems where the original cable has become damaged, corroded, or has developed a fault causing loss of communication between the main PCB and the HMI display. It is suitable for residential pool installations using compatible Zodiac control equipment, particularly those in the Z400iQ product family. Installation should be carried out by a qualified pool technician or electrician familiar with Zodiac electronic systems. If you are unsure whether this cable is compatible with your specific unit, cross-reference the part number R0818800 with your equipment’s service manual or contact an authorised Zodiac service centre before ordering.
