Description

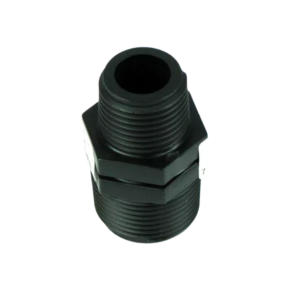

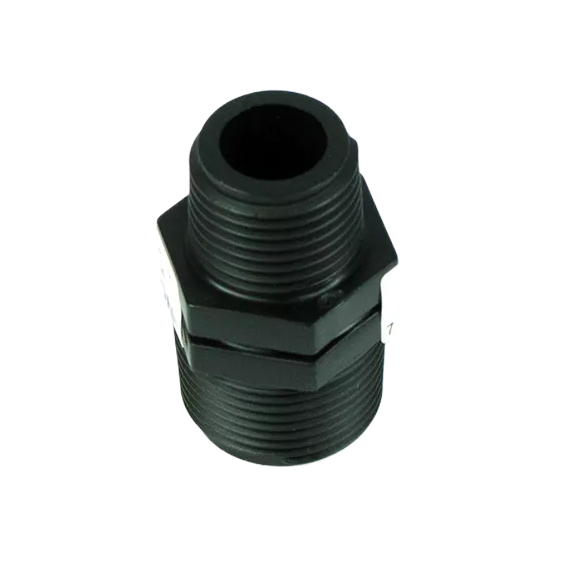

Zodiac 1/2 inch to 3/4 inch adapter for flow detector R0797200
The Zodiac 1/2 inch to 3/4 inch adapter for flow detector R0797200 is the original threaded reducer used to install a Zodiac flow detector in pipework with a different connection size. It allows the flow switch body to be mounted securely when the available port is 1/2 inch and the detector requires a 3/4 inch thread, or vice versa, without modifying the existing plumbing.
Function of the Zodiac flow detector adapter
This adapter creates a tight, reliable transition between 1/2 inch and 3/4 inch threaded connections so the flow detector can sit in the correct position in the return line. By using the original Zodiac adapter instead of generic fittings, the sealing surfaces, thread depth and positioning of the sensor are kept as the manufacturer intended, reducing the risk of leaks and ensuring accurate flow detection.
Typical applications and compatibility
The R0797200 adapter is used in installations where the Zodiac flow detector needs to be fitted into an existing tapping, bypass or saddle with a different thread size than the sensor. It is commonly used together with Zodiac flow detectors on Tri, Tri Expert, Tri Expert LS and Hydroxinator systems and other compatible units where the parts list specifies this adapter reference.
- Adapts between 1/2 inch and 3/4 inch threaded ports in the return line.
- Used with Zodiac flow detectors referenced for Tri and Hydroxinator chlorinators.
- Suitable when retrofitting a flow detector to an existing installation on PoolParthub.com parts.
Installation guidelines
Fitting the Zodiac 1/2 inch to 3/4 inch adapter R0797200 is a simple plumbing operation that should be carried out with the filtration system stopped and the line depressurised. Correct sealing and tightening are important to avoid leaks around the flow detector connection.
- Stop the filtration pump and close isolation valves before opening the line.
- Clean the threaded port where the adapter will be installed, removing dirt and old sealing material.
- Apply a suitable thread sealant or PTFE tape to the male thread of the adapter if recommended for your installation.
- Screw the adapter into the 1/2 inch or 3/4 inch port by hand first, then tighten carefully with an appropriate tool.
- Install the flow detector into the adapter thread, following the indicated flow direction and sealing recommendations.
- Reopen the valves, restart the pump and check the joint around the adapter and sensor for leaks.
Good practice for reliable sealing
To ensure long term reliability, the adapter and flow detector should be installed with attention to sealing surfaces and mechanical stress. A correctly mounted adapter reduces stress on the sensor body and keeps the flow detection point stable in the hydraulic circuit.
- Avoid over tightening, which can damage plastic threads or deform sealing surfaces.
- Support heavy pipe runs so the adapter and detector are not bearing excessive weight.
- Inspect the connection at the start of each season for signs of seepage or scale deposits.
- Replace seals or O rings on the detector if they show flattening or cracks during service.
By using the Zodiac 1/2 inch to 3/4 inch adapter for flow detector R0797200 from PoolParthub.com, installers can adapt different thread sizes while maintaining a neat, watertight and manufacturer compatible mounting for the Zodiac flow sensor.
