Description
Weltico A800 blue skimmer renovation kit 64232B
The Weltico A800 blue skimmer renovation kit 64232B is a complete front renovation set for A800 design skimmers. It allows you to renew
the sealing components and the visible blue front elements while keeping the original in wall skimmer body in place, ideal for upgrading
existing residential pools fitted with a Weltico A800 skimmer.
Overview and typical use
This kit is designed for pools where the A800 skimmer body is still structurally sound, but the gaskets, counter flange and front cover
have aged, discoloured or started to lose their sealing capacity. By replacing these parts, you restore watertightness around the wide
skimmer mouth and give the waterline area a fresh blue finish without heavy structural work on the pool wall.
All work is carried out from the pool side, so most refurbishment jobs can be completed without opening the pool shell. This makes the
Weltico A800 blue skimmer renovation kit 64232B a practical choice during liner replacement or when modernising an existing pool through
the spare parts range available at PoolParthub.com.

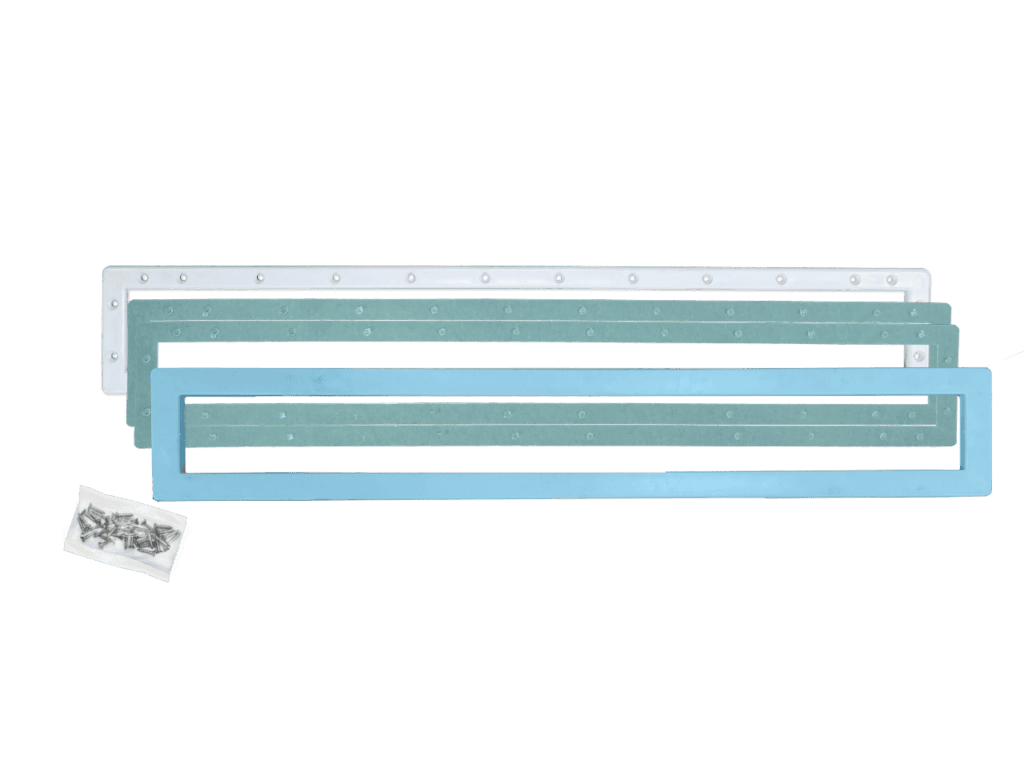

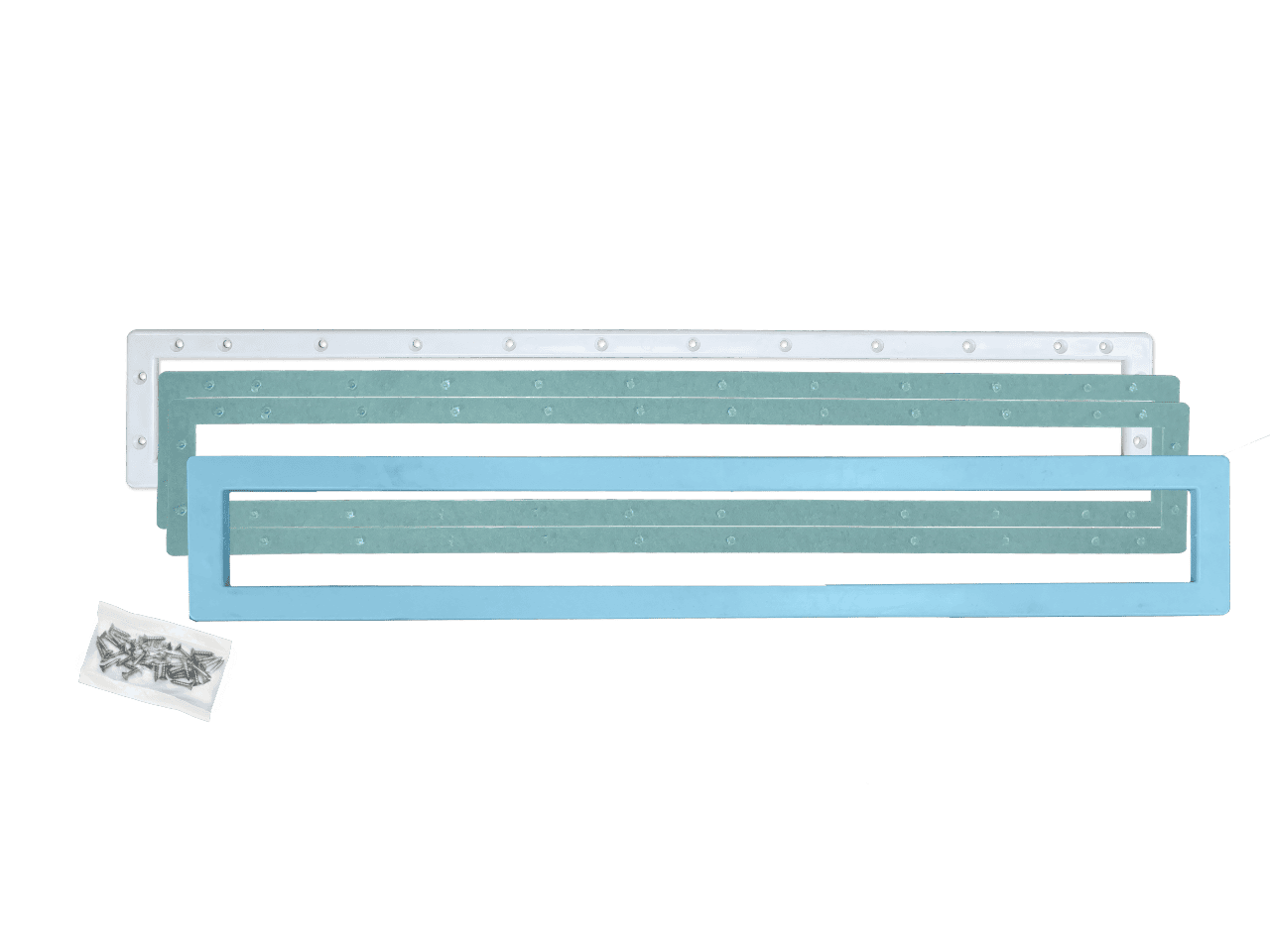

Kit contents and compatibility
The Weltico A800 blue skimmer renovation kit 64232B includes the key front elements required to refurbish the A800 skimmer opening. All
parts follow the original A800 design geometry, so they align with the existing throat and fixing pattern on compatible installations.
- New sealing gaskets for the A800 skimmer mouth and pool finish interface.
- Counter flange to clamp the liner or wall finish against the large opening.
- Blue front cover elements matching the A800 design shape and screw layout.
- Hardware set with screws sized for the A800 flange.
The kit is suitable for A800 design skimmers installed in concrete, concrete liner, shell or panel liner pools, provided the in wall
skimmer body is still in good structural condition and uses the original A800 fixing pattern.
Benefits of the blue skimmer front
Over time, exposure to sunlight, fluctuating water levels and treatment products can affect the look and flexibility of the skimmer
front. Using the Weltico A800 blue skimmer renovation kit 64232B restores a uniform blue finish along the waterline and reliable sealing
around the mouth of the skimmer.
- Blue front for a classic pool look that pairs well with many blue liners.
- Visible parts that refresh the appearance of the A800 skimmer area.
- Replacement elements that preserve the original A800 hydraulic opening.
Sealing performance and refurbishment advantages
The sealing gaskets around the skimmer mouth gradually compress and harden, which can lead to seepage or damp marks near the waterline.
By replacing the seals and counter flange, the kit restores uniform clamping pressure and supports long term watertightness of the A800
mouth.
- New gaskets compensate for ageing and loss of elasticity in old seals.
- Counter flange spreads tightening forces evenly across the wide opening.
- Assembly designed to match the tolerances of the original A800 skimmer.
Because the in wall A800 body remains in place, the renovation kit offers an efficient way to extend the service life of the skimmer with
minimal structural work on the pool shell.
Installation and practical considerations
Installation of the Weltico A800 blue skimmer renovation kit 64232B should always be carried out with the filtration system stopped and
the water level controlled. In most cases the water surface is lowered just below the skimmer mouth to give comfortable access to the
screws and sealing surfaces.
- Remove existing screws, front cover and old gaskets from the A800 mouth.
- Clean the skimmer throat and contact area to remove scale, dirt and residues.
- Position the new gaskets and counter flange following the A800 assembly layout.
- Fit the new blue front elements, aligning them carefully with the opening.
- Tighten screws gradually in a cross pattern to compress the seals evenly.
After refilling the pool and restarting filtration, the skimmer area should be monitored to confirm that no moisture appears around the
mouth and that surface skimming remains stable and quiet.
Maintenance tips after renovation
Once the Weltico A800 blue skimmer renovation kit 64232B is installed, simple seasonal checks help preserve both the visual aspect and
the sealing performance of the renewed skimmer front.
- Inspect the blue front and screw heads periodically for movement or stress.
- Keep water chemistry balanced to protect plastic parts and gaskets.
- Clean the front gently with non abrasive products to avoid scratching.
- Check surface skimming regularly to ensure free flow towards the skimmer.
With correct installation and basic maintenance, this kit offers a durable functional and aesthetic upgrade for existing A800 skimmers,
especially in pools with traditional blue finishes.
