Description
Weltico A400 design pool skimmer renovation kit grey 60662G
The Weltico A400 design pool skimmer renovation kit grey 60662G is a complete front side refurbishment set for A400 design skimmers. It lets you renew the sealing parts and visible mouth area while keeping the existing skimmer body in place, making it ideal for liner, concrete liner, shell and panel liner pools already equipped with an A400 design skimmer.
Overview and typical use
This renovation kit is designed for pools where the Weltico A400 skimmer body remains structurally sound, but the gaskets, counter flange and mouth appearance need to be refreshed. The grey mouth faceplate clips onto the existing opening, while the new seals and counter flange re establish watertightness around the skimmer throat and secure the liner or wall finish.
Because all work is done from the pool side, you can modernise the look of the skimmer front and restore sealing without removing the built in A400 skimmer or opening the surrounding structure.

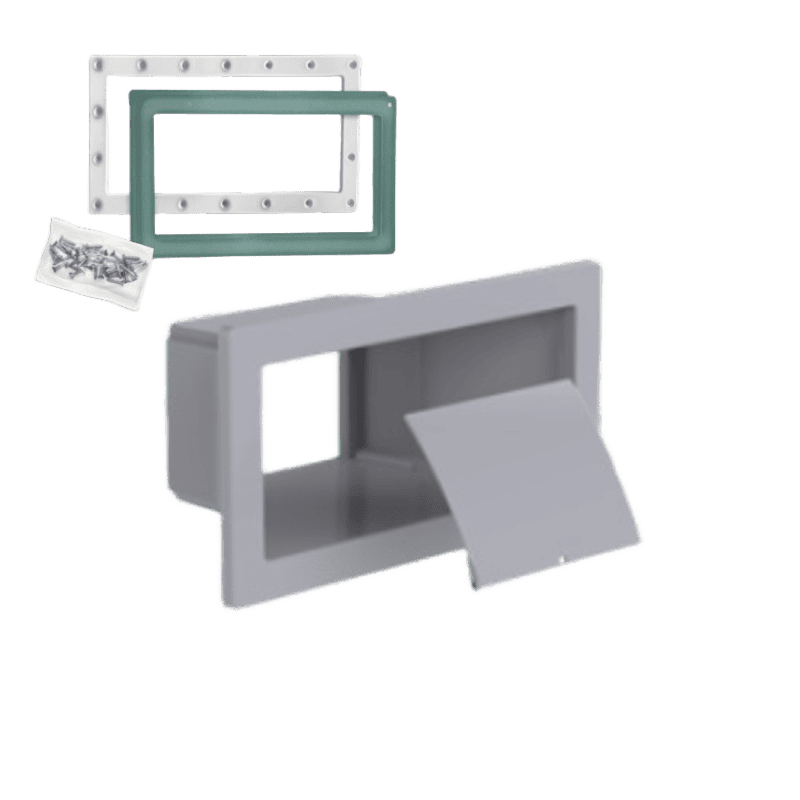

Kit contents and compatibility
The Weltico A400 design pool skimmer renovation kit grey 60662G includes all front side components required to refurbish the A400 mouth area. Every element is dimensioned for the 200 x 400 millimetre A400 opening and is compatible with A400 design skimmers fitted on different pool structures.
- Two sealing gaskets for the skimmer mouth and liner or wall interface.
- Counter flange to clamp the finish securely against the skimmer opening.
- Grey clip on mouth faceplate for the A400 design skimmer.
- New skimmer flap matched to the A400 throat for efficient surface skimming.
- Complete hardware set with screws for assembly.
The kit is suitable for A400 design skimmers installed in concrete, concrete liner, shell and panel liner pools, since the grey mouth faceplate clips directly onto the existing A400 front whatever the structure.
Benefits of the grey mouth faceplate
The grey mouth faceplate gives the skimmer opening a discreet, contemporary look that blends particularly well with grey liners, stone coping and modern terrace finishes. It offers a clean transition between the pool wall and the skimmer throat while preserving the original A400 hydraulics.
- Grey front for a neutral, contemporary appearance around the skimmer.
- Clip on design allows colour change or renewal without dismantling the body.
- Precisely shaped for the A400 design throat, flap and screw positions.
Sealing performance and renovation advantages
Over time, skimmer gaskets compress, harden and lose elasticity, which can lead to small leaks between the liner and the skimmer body. The Weltico A400 design pool skimmer renovation kit grey 60662G provides fresh seals, a new counter flange and new hardware to restore correct clamping pressure and watertightness around the mouth.
- New gaskets replace aged seals and improve contact with the liner or finish.
- Counter flange spreads the tightening force evenly across the full opening.
- New flap supports quiet, effective surface skimming at normal water levels.
Because the renovation takes place from inside the pool, structural work is kept to a minimum and most refurbishment jobs can be carried out without heavy demolition.
Installation and practical considerations
Installation of the Weltico A400 design pool skimmer renovation kit grey 60662G should always be done with the filtration system stopped and the water level controlled. In many cases, the water is lowered slightly below the skimmer mouth to give comfortable access to screws and sealing surfaces.
- Remove the existing screws, counter flange, flap and old gaskets from the A400 mouth.
- Clean the skimmer throat and liner or wall contact area to remove scale and debris.
- Position the new gaskets and counter flange following the A400 assembly layout.
- Install the new flap and clip the grey mouth faceplate onto the front of the skimmer.
- Tighten the screws gradually in a cross pattern to compress the seals without deforming the plastic.
Once the pool is refilled to its normal level and filtration is restarted, the skimmer zone should be inspected closely to confirm that no moisture appears around the mouth and that the flap moves freely with changes in water level.
Maintenance tips for long lasting results
After the renovation, simple seasonal checks help keep the Weltico A400 design pool skimmer renovation kit grey 60662G performing and looking good for many years.
- Inspect the faceplate and screw heads periodically for signs of movement or stress.
- Maintain balanced water chemistry to protect gaskets and plastic components.
- Clean the grey mouth faceplate gently to avoid scratches and discolouration.
- Check the flap movement regularly to ensure free, efficient surface skimming.
With correct installation and basic maintenance, this kit provides a durable visual and functional upgrade for existing Weltico A400 design skimmers, especially in pools with neutral or grey themed finishes.
