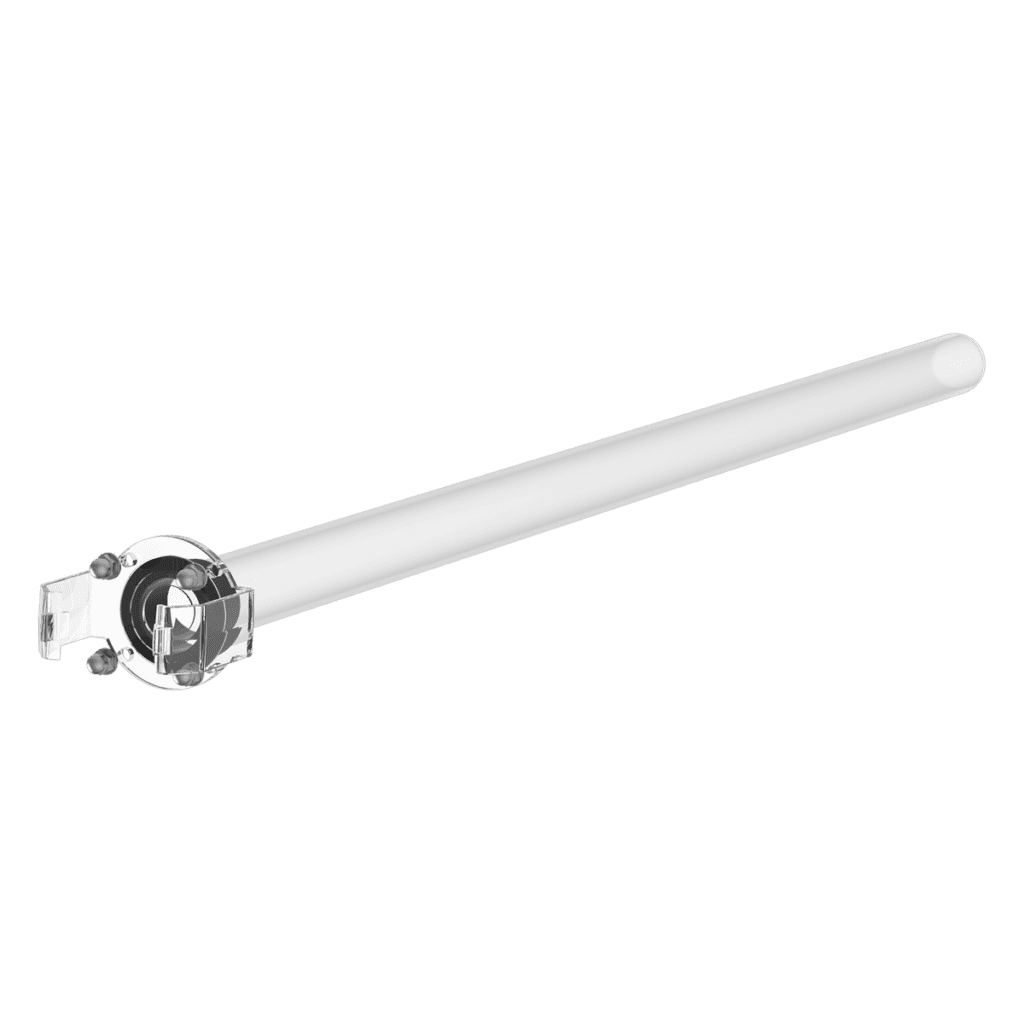

Quartz Glass Sleeve QG049 – SPT 835 × 30 mm (75–140W)
Shipping 1-2 weeks
Certified online store
Easy returns within 14 days
Looking for advice?
Replacement Quartz Glass QG049 – 835 × 30 mm for 75 to 140W UV-C Lamps
The QG049 is a high-purity quartz glass sleeve designed to protect UV-C lamps in pool, pond and water treatment systems. Quartz glass transmits UV-C radiation (254 nm) with minimal absorption, keeping the lamp’s germicidal output at maximum effectiveness while isolating it from direct water contact.
When to Replace
Quartz glass should be replaced whenever it is cracked, visibly cloudy or shows mineral scaling that cannot be removed by cleaning. A degraded quartz sleeve can block up to 50% of UV-C output, dramatically reducing water disinfection performance. The SPT series uses a 30 mm tube for mid-to-high power amalgam lamps. The QG049 fits the mid-length SPT housing configuration.
Compatible Systems
The QG049 (835 × 30 mm) is sized to fit VGE Pro SPT UV-C units rated at 75 to 140W. Always check the sleeve dimensions and end-cap type against your unit’s specifications before ordering.
Additional information
| Article code: | QG049 |
|---|---|
| Dimensions: | 835 × 30 mm |
| Compatible wattage: | 75W / 100W / 140W |
| Compatible devices: | VGE Pro SPT UV-C |
| Component type: | Quartz glass sleeve |
In details
- High-purity quartz glass – maximum UV-C transmission at 254 nm
- Dimensions: 835 × 30 mm – fits 75–140W UV-C lamps
- Protects lamp from direct water contact
- Replace when cracked, cloudy or scaled to restore UV performance
- Compatible with VGE Pro SPT UV-C systems
- Always handle with cotton gloves – skin oils etch the glass surface
- Verify exact dimensions and end-cap type before ordering
