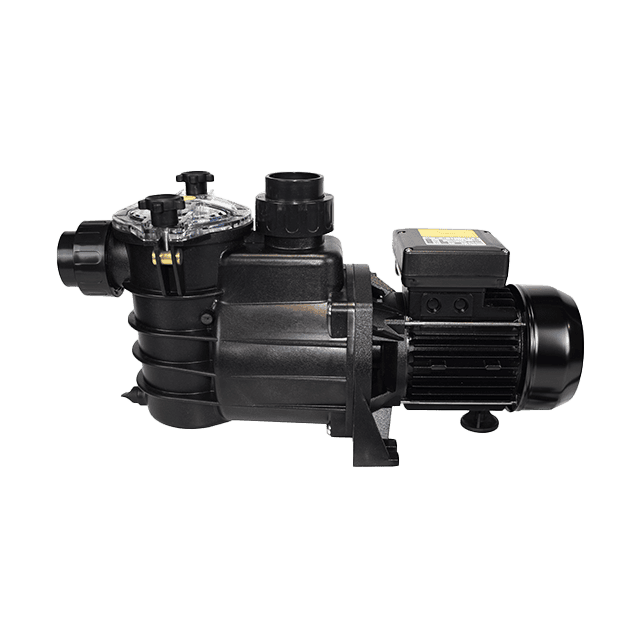

PSH Pool Pump MINI-80M 0,80HP 230V

PSH Pool Pump MINI-80M 0,80HP 230V

The PSH MINI-80M pool pump is a compact and efficient filtration pump designed for residential swimming pool systems. With a motor power of 0.80 HP and operating on a 230V single-phase electrical supply, this pump is engineered to provide reliable water circulation for smaller to medium-sized pools. It plays a critical role in maintaining water clarity by continuously moving water through the filtration system, ensuring effective debris removal and chemical distribution.

The MINI series is known for its compact footprint, making it suitable for installations where space is limited. Despite its size, the pump delivers consistent hydraulic performance, supporting everyday pool maintenance requirements. Its design allows for straightforward integration into standard filtration circuits, typically positioned between the skimmer/main drain line and the filter unit.

Technical characteristics and operation

This pump is powered by a 0.80 HP motor, which provides a balanced combination of energy consumption and circulation capacity. Operating on a 230V single-phase connection makes it compatible with standard residential electrical installations, eliminating the need for specialized wiring. The “M” designation indicates a single-phase motor, commonly used in domestic environments.

The pump functions by drawing water from the pool through suction lines and pushing it through the filtration system before returning it to the pool. Stable flow and continuous operation are essential for proper filtration, and the MINI-80M is designed to maintain this cycle efficiently. Its compact housing also contributes to easier installation and maintenance access in technical rooms or pump enclosures.

Suitability and application

The PSH MINI-80M is best suited for private residential pools, including above-ground and small in-ground pools, where moderate circulation capacity is required. It is an appropriate choice for installations where space is limited or where a compact pump is preferred without compromising basic performance.

This pump is ideal for standard filtration setups and everyday pool operation. It is particularly suitable for pool owners seeking a straightforward, dependable pump solution for regular water circulation. For larger pools or installations with higher hydraulic demands, a higher-powered model may be more appropriate.
