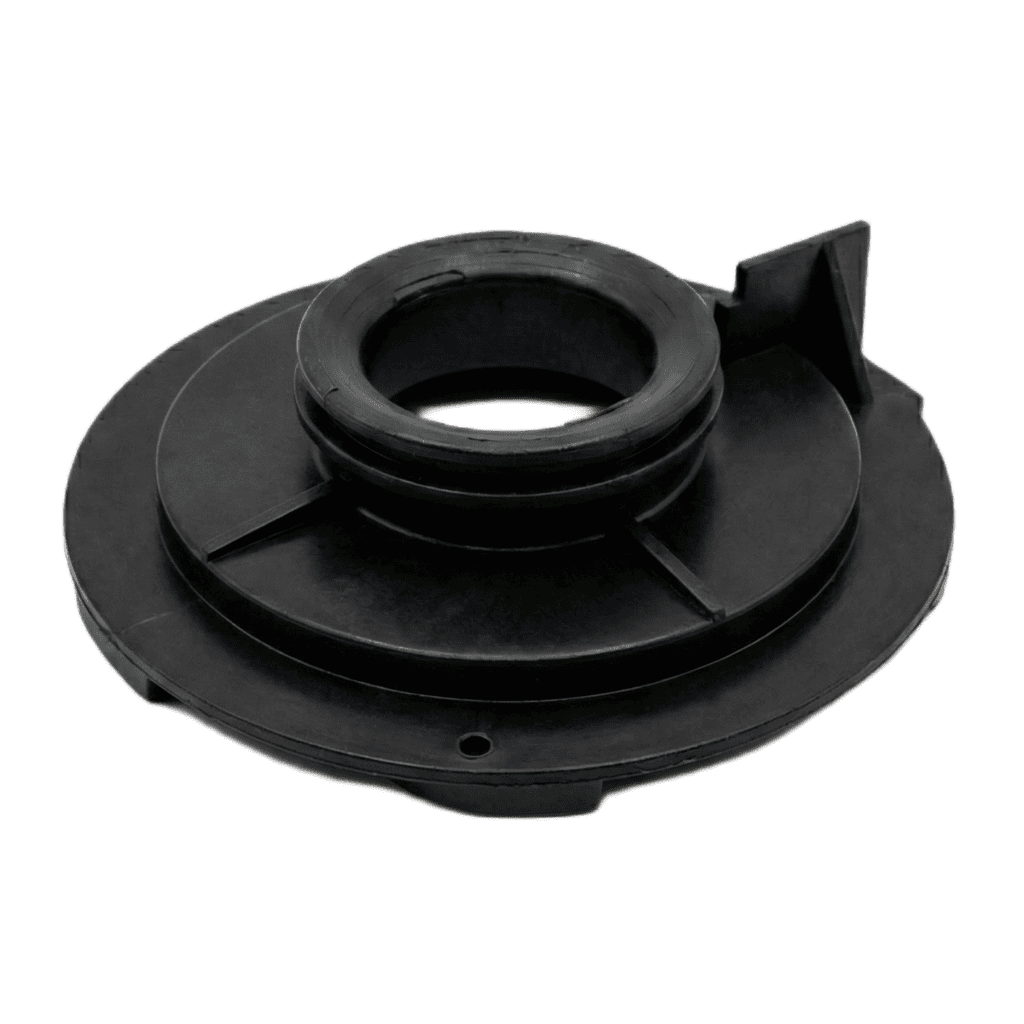

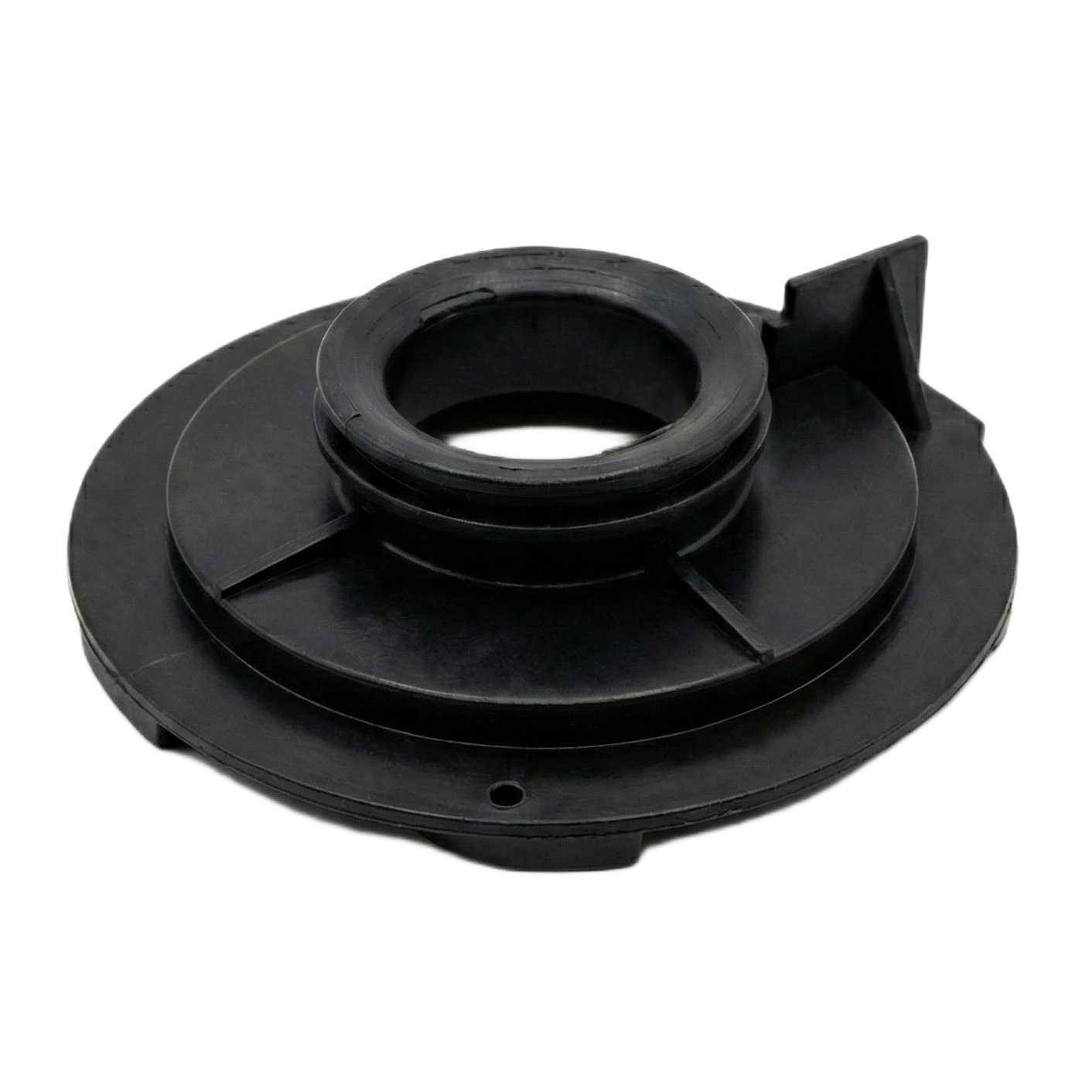

Pentair diffuser R355618 for Pinnacle 151/153 and Superflo 0.5 HP to 1.5 HP pumps
The Pentair diffuser R355618 for Pinnacle 151/153 and Superflo 0.5 hp to 1.5 hp pumps is the central hydraulic insert that directs water from the impeller to the pump outlet. By restoring the correct diffuser geometry, this original Pentair spare part helps recover factory performance, quiet operation and stable flow in residential pool filtration systems.
What the Pentair diffuser R355618 does
Inside the pump wet end, the diffuser surrounds the impeller and shapes the water flow as it leaves the impeller vanes. Its channels convert velocity into pressure and guide the water evenly towards the discharge port. A diffuser in good condition is essential for efficient operation, good priming behaviour and low noise levels.
- Optimises the hydraulic path between impeller and pump outlet.
- Helps the pump build the correct pressure at a given flow rate.
- Contributes to smooth, quiet running with fewer vibrations.
- Protects the impeller by keeping clearances and alignment under control.
Compatibility with Pentair Pinnacle and Superflo pumps
This diffuser is designed specifically for Pentair Pinnacle and Superflo pumps in the lower and medium power range. It matches the original housing shape and fixing points so it can be installed directly in place of the worn or damaged part.
- Suitable for Pentair Pinnacle 151 and Pinnacle 153 pump models.
- Compatible with Pentair Superflo pumps from 0.5 hp up to 1.5 hp.
- Uses the original screw pattern and sealing surfaces inside the housing.
- Intended as a genuine style replacement as listed in the pump spare parts diagram.
Always confirm the pump model and power rating on the identification plate and check that the diffuser reference R355618 is specified for your exact version before ordering the spare part at PoolParthub.com.
When to replace the diffuser R355618
Although the diffuser has no moving parts, it works close to the rotating impeller under continuous flow and pressure. Over time, wear, cavitation or debris can affect its surfaces and reduce overall pump performance.
- Cracks, chips or erosion visible on the diffuser vanes or body.
- Deformation or warping that affects the clearance around the impeller.
- Loss of flow or pressure compared with the original performance, once other causes are excluded.
- Damage caused by running dry, blocked suction or hard foreign objects passing through the pump.
Replacing a worn or damaged diffuser with a new Pentair R355618 insert restores the internal geometry and often brings back stable flow and quieter filtration.
Installation guidelines
Fitting the Pentair diffuser R355618 for Pinnacle 151/153 and Superflo 0.5 hp to 1.5 hp pumps is part of a normal wet end service. All work should be carried out with the electrical supply isolated and the hydraulic circuit depressurised.
- Switch off and isolate the pump from the electrical supply and close the relevant valves.
- Drain the pump housing and separate the wet end from the motor following the manufacturer procedure.
- Remove the impeller carefully, then take out the old diffuser and inspect the housing sealing surfaces.
- Position the new R355618 diffuser in the housing, aligning the locating features and screw holes.
- Refit the fixing screws and tighten them evenly so the diffuser sits squarely around the impeller.
- Reassemble the wet end, reconnect the pump to the pipework, prime and test for smooth operation and normal flow.
Good practice for long term performance
Correct operating conditions help the new diffuser and the rest of the wet end deliver many seasons of reliable service.
- Keep suction lines clean and free of obstructions to reduce the risk of cavitation.
- Maintain adequate water level in the pool so the pump does not run dry.
- Check and clean the strainer basket regularly to avoid excessive suction losses.
- Monitor noise level and flow; any sudden change can indicate internal wear or debris that should be investigated.
With a correctly installed Pentair diffuser R355618 and a sound impeller, mechanical seal and housing, Pinnacle and Superflo pumps in the 0.5 hp to 1.5 hp range can regain their original hydraulic efficiency and reliable daily operation.
