Maytronics Dolphin Active X5 IOT CB

Maytronics Dolphin Active X5 IOT CB exploded view & spare parts

The Maytronics Dolphin Active X5 IOT CB is a premium Wi-Fi-connected robotic pool cleaner designed to scrub the floor, walls and waterline of pools of all shapes and surfaces. Its cloud-connected power supply keeps the robot online around the clock via the MyDolphin™ Plus app, letting you schedule, monitor and control cleaning cycles remotely. This exploded-view page gives you a fully numbered spare-parts diagram for the Active X5 IOT CB so you can identify, order and replace every component with confidence — keeping your robot performing at its best season after season.

How to use the numbered diagram to find the right part

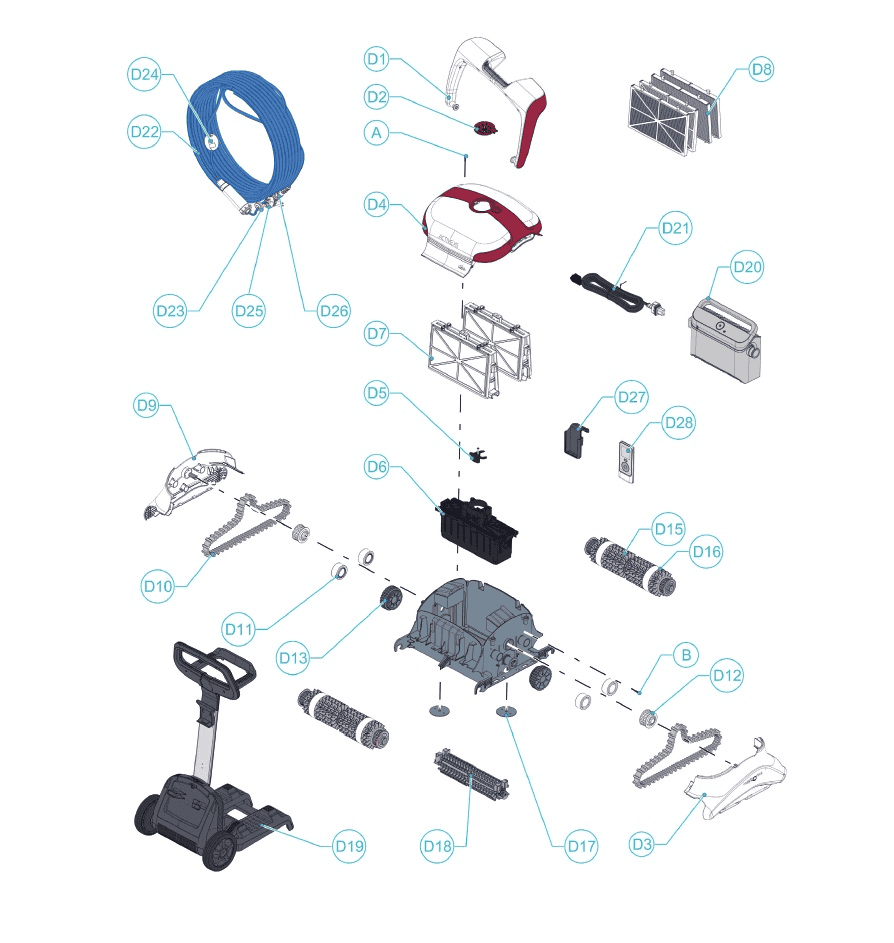

The exploded-view diagram breaks the Dolphin Active X5 IOT CB down into every individual component, each assigned a unique reference number. Start by locating the area of the robot where the fault or wear is visible — for example, the drive section, the filter bay or the cable entry point — then trace that section on the diagram and note the reference number next to the part you need. Use that number to search or browse this page and add the exact replacement to your basket. Because the Active X5 IOT CB shares its platform with other models in the Active range, always cross-check the part number shown here against your robot’s serial number label before ordering, to make sure you are selecting a component built for your specific variant.

Main replaceable parts covered in this diagram

The exploded view covers all the serviceable assemblies on the Active X5 IOT CB. The rubber tracks provide the drive grip that lets the robot climb walls and navigate slopes. The combined PVC + PVA brushes sit behind the tracks and agitate debris from any pool surface. The filter panels and filter bags capture everything from fine dust to larger leaves inside the filter basket. The impeller generates the suction flow that draws water and debris through the filtration system, while the motor unit powers both drive and suction. The swivel floating cable connects the robot to the power supply with an anti-tangle design that prevents knotting during cleaning cycles. The power supply (control box) is the cloud-connected IOT unit that manages the robot’s programmes and Wi-Fi connectivity. Finally, the handle allows safe retrieval from the pool, and the matching caddy (trolley) keeps the cable neatly wound and the robot safely stored between sessions.

Common wear items and when to replace them

Tracks and brushes are the components that make direct contact with pool surfaces on every single cleaning cycle, and they are therefore the most frequent replacements. Inspect the tracks for cracking, splitting or loss of grip at the start of each season; a track that has lost its texture will cause the robot to slip on walls and fail to clean evenly. The PVC + PVA brush strip should be checked for flattening or fraying — once the bristles no longer stand proud, scrubbing efficiency drops noticeably. Filter panels and bags should be rinsed after every use and replaced when the mesh shows holes, persistent discolouration or when the robot’s flow rate feels reduced even after cleaning. The impeller can become clogged with hair and fine debris; if suction feels weak and the filter is clean, inspecting and clearing — or replacing — the impeller is the logical next step. The floating cable should be replaced if the outer sheath shows cuts, kinks or water ingress, as a damaged cable is both a performance and a safety issue. The power supply unit should be checked if the robot fails to respond to app commands or does not start at all.

Why genuine Maytronics parts matter for your Active X5 IOT CB

The Dolphin Active X5 IOT CB is a precision-engineered robot, and every component is specified to work within tight tolerances. Genuine Maytronics spare parts are manufactured to exactly the same standards as the originals, ensuring correct fitment, the right material hardness for tracks and brushes, and the correct electrical ratings for motor and power-supply components. Using non-genuine alternatives can compromise the robot’s CleverClean™ navigation, reduce filtration efficiency and, in the case of electrical parts, void your warranty. All parts listed on this page at poolparthub.com are 100% genuine Maytronics components, sourced directly from official supply channels, so you can order with confidence knowing your Active X5 IOT CB will be restored to full factory specification.

Ordering spare parts from poolparthub.com

Every part shown in the Active X5 IOT CB exploded diagram is available to order directly from this page. Simply find your reference number in the diagram, locate the matching product listing, and add it to your cart. We stock the full range of consumables — tracks, brushes, filter media — alongside longer-life assemblies such as motor units, impellers, power supplies and caddies, so whether you need a quick seasonal refresh or a more involved repair, you will find everything in one place. If you are unsure which part matches your robot’s serial number, our support team is on hand to help you confirm compatibility before you order.
