Fluidra – PCB Link Cable User Interface / Main Board – Zodiac Z200 R410

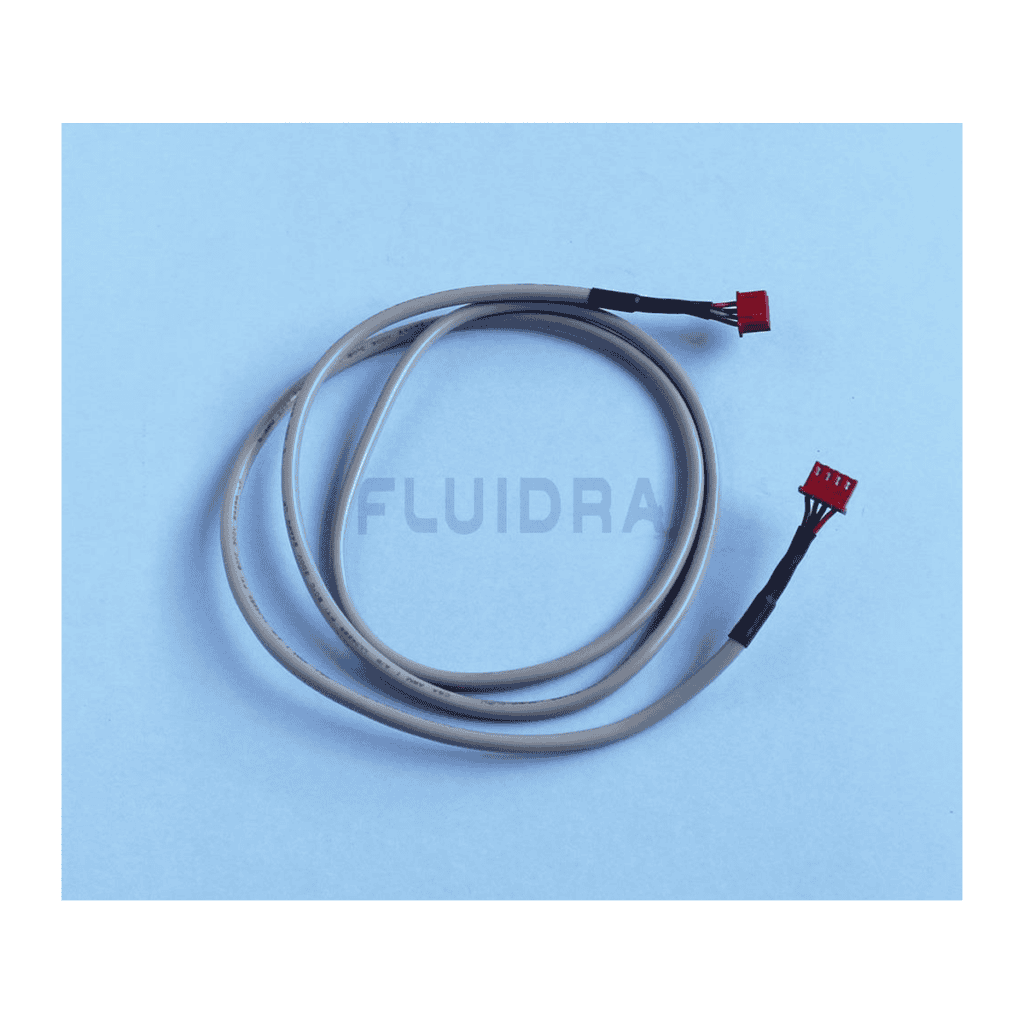

This is the genuine Fluidra internal connection cable that links the main control PCB to the user interface PCB inside the Zodiac Z200 R410 pool heat pump. It carries signals between the two boards, enabling the front-panel controls and display to communicate correctly with the heat pump’s main control circuitry. Without a functioning link cable, the user interface becomes unresponsive and the unit cannot be operated normally.

Compatibility

This cable is a direct OEM spare part designed specifically for the Fluidra Zodiac Z200 R410 pool heat pump range. Always verify your model and serial number before ordering, as the Z200 is produced in several refrigerant variants (R410, R32, Defrost) that may use different internal components.

Why Genuine Matters

Using a genuine Fluidra replacement cable ensures the correct connector type, wire gauge, and signal integrity are maintained between the two PCBs. Third-party substitutes may not match the original pin layout or shielding, risking communication errors, fault codes, or damage to the control boards.

Installation

Replacement of internal PCB cables requires access to the heat pump’s electrical enclosure and should be carried out by a qualified pool technician or electrician. Isolate the unit from mains power before beginning any work, and refer to the Z200 R410 service documentation for the correct routing and connector seating procedure.
