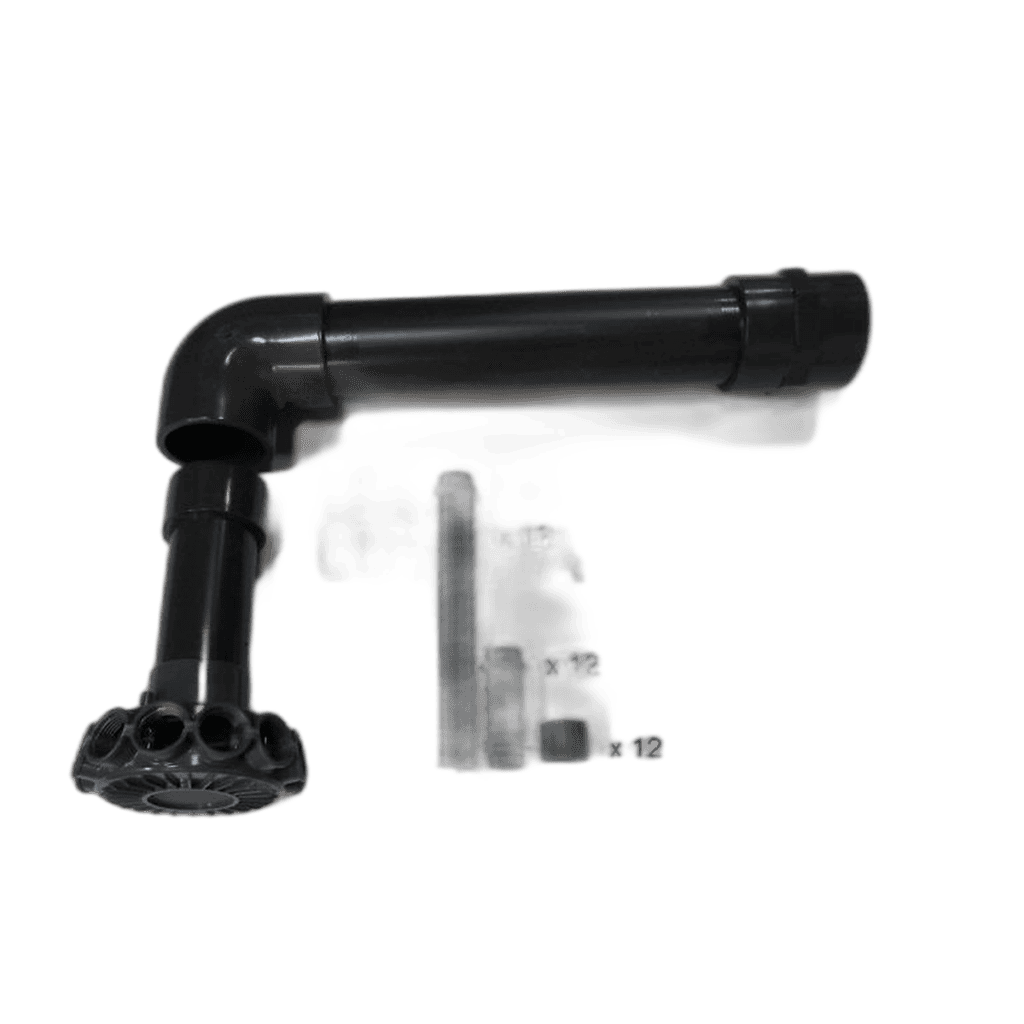

Fluidra - Collector Manifold Assembly Ø1200 mm / 90 mm Outlet – Volcano Sand Filter

Fluidra – Collector Manifold Assembly Ø1200 mm / 90 mm Outlet – Volcano Sand Filter

This is the genuine Fluidra collector manifold assembly designed for the Volcano side-outlet sand filter with a Ø1200 mm tank and a flow capacity of 56,000 l/h. The manifold sits at the base of the filter vessel and collects filtered water from across the entire sand bed, channelling it toward the 90 mm outlet. Replacing a worn or damaged collector restores proper filtration efficiency and ensures even water distribution during both filtration and backwash cycles.

Compatibility

This collector assembly is a direct OEM replacement for the Fluidra Volcano Ø1200 mm side-outlet sand filter (56,000 l/h, Ø90 mm outlet connection). It is engineered to the exact dimensions of the original component — always verify your filter model and outlet diameter before ordering, as Volcano filters are available in multiple tank sizes and outlet configurations.

Why Genuine Matters

As a genuine Fluidra spare part, this assembly is manufactured to the same engineering tolerances and material standards as the original. High-quality engineering plastics ensure resistance to pool chemicals, UV exposure and the mechanical stresses of high-volume commercial filtration. Using a genuine part safeguards the filter’s hydraulic performance and protects any remaining warranty on the tank.

Installation

The collector manifold is accessed by removing the filter lid and lifting the internal assembly out of the tank. Installation requires draining and opening the filter vessel, which is typically a job for a qualified pool technician on a commercial unit of this size. Ensure all lateral arms are securely seated and the central hub is correctly aligned before re-filling and recommissioning the filter.
