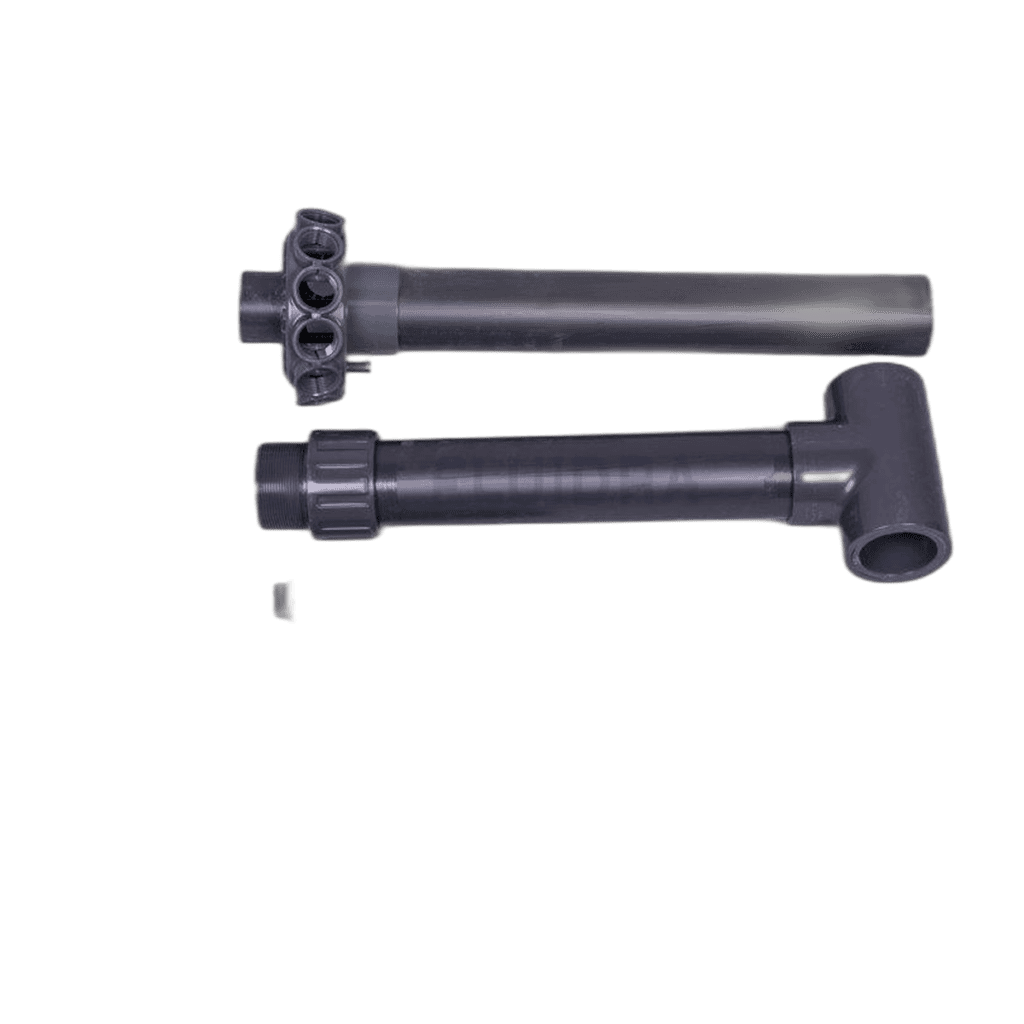

Fluidra - Collector Arm Manifold Assembly for Delta Filter Ø1000 mm

Fluidra – Collector Arm Manifold Assembly for Delta Filter Ø1000 mm

This is the genuine Fluidra manifold (collector arm) assembly designed specifically for the Delta Filter 1000–1200 series with a Ø1000 mm tank. The manifold assembly forms the internal water-distribution and collection system of the sand filter, directing water evenly through the filter bed and gathering filtered water for return to the pool.

Compatibility

This assembly is a direct OEM replacement part for the Fluidra Delta Filter 1000–1200 series (Delta 10 and Delta 12 models) fitted with a Ø1000 mm tank — including models 36678 and 36682. The Delta range is a high-performance laminated fiberglass sand filter available in 650, 800, 1000 and 1200 mm diameters; always verify your filter’s model number and tank diameter before ordering, as manifold assemblies differ across sizes.

Why Genuine Matters

The Delta Filter’s collector arm system features slotted laterals engineered to Fluidra’s precise tolerances, ensuring uniform flow distribution across the full sand bed area and preventing sand bypass. Using a genuine Fluidra replacement maintains the filter’s rated filtration velocity and operating pressure of up to 2.5 bar, protecting both filter performance and warranty compliance.

Installation

The manifold assembly fits through the Ø400 mm bolt-down access lid on the 1000 mm tank, allowing removal and refitting without dismantling the filter body. Internal pipe and fittings are manufactured in PVC, PP and ABS materials. Professional installation is recommended to ensure correct seating of the laterals and a leak-free reassembly.
