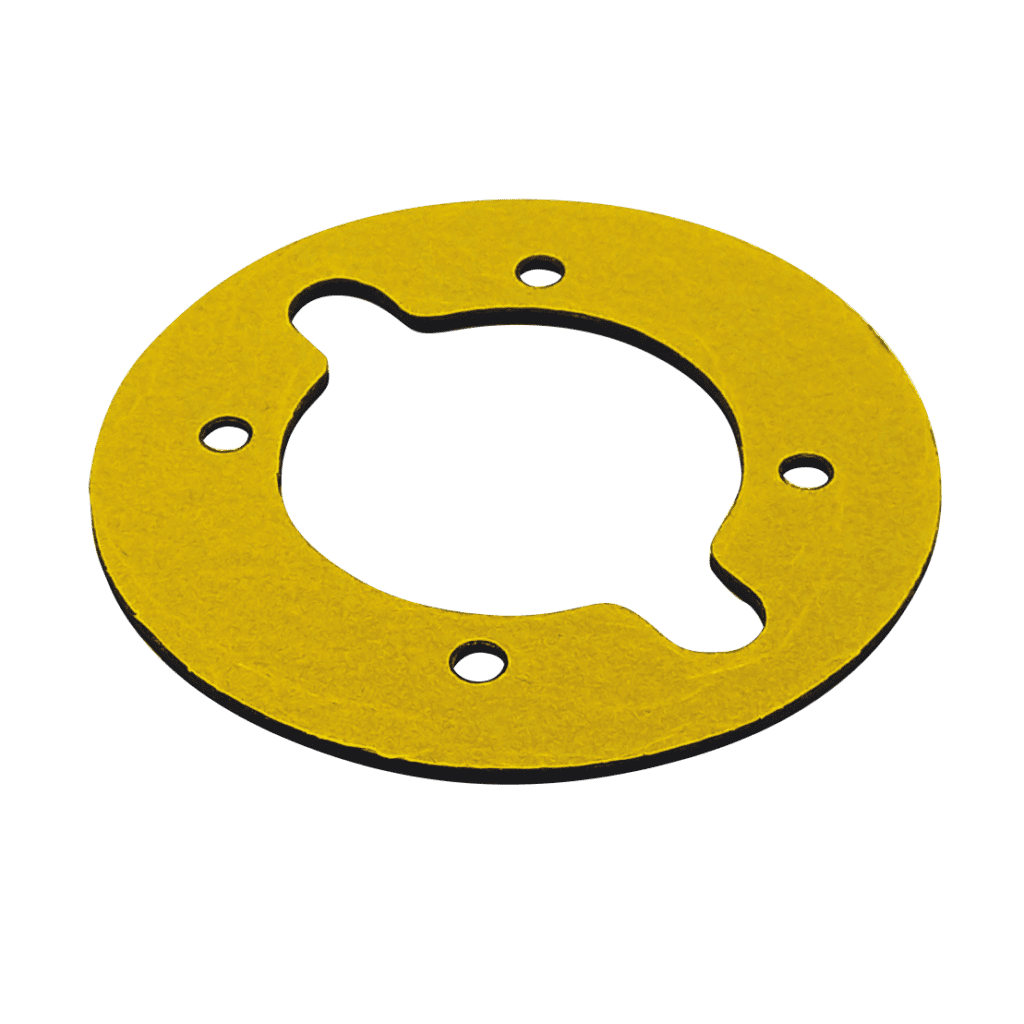

Flat liner gasket for wall inlets pre 2006 – 60472

Flat liner gasket for wall inlets pre 2006 – 60472

The flat liner gasket for wall inlets pre 2006 – 60472 is a replacement sealing ring for older liner pool return inlets and fittings. This flat gasket is designed to sit between the liner and the front flange of the inlet, helping to maintain a watertight seal around the opening in the pool wall on installations made before 2006.

Flat gasket for older liner wall inlets

On liner pools built before 2006, the original flat gasket can harden, deform or crack after years of exposure to water, chemicals and pressure from the flange screws. When this happens, small leaks may appear around the inlet or the liner may start to show damp marks behind the wall. The flat liner gasket for wall inlets pre 2006 – 60472 replaces the original seal and restores proper compression between the flange and the liner.

Using a dedicated flat gasket with the correct dimensions is important to protect the liner and to avoid deforming the inlet body when tightening the screws during reassembly.

Protection for liner and pool structure

The flat liner gasket for wall inlets pre 2006 – 60472 forms part of the sealing sandwich around the wall opening. By distributing the pressure of the screws evenly around the inlet, it helps prevent the liner from tearing or slipping at the cut out. At the same time, it creates a barrier that prevents water from migrating behind the liner and into the concrete or supporting structure.

Replacing a tired or damaged gasket is a simple and effective way to reduce the risk of hidden leaks that can cause long term damage to insulation or masonry behind the liner.

When to replace the flat liner gasket

It is recommended to replace the flat liner gasket for wall inlets pre 2006 – 60472 whenever the inlet is opened for major maintenance, or when there are visible signs of wear or leakage around the fitting. Typical situations include:

• Renewing or repositioning the return inlet flange on an older liner pool.
• Repairing small leaks or damp marks around the wall inlet area.
• Refurbishing inlets during a partial or complete liner replacement.

Fitting a new gasket at the right time helps maintain the watertight integrity of the wall penetration and supports the overall life of the pool liner.

Installation recommendations

Installation of the flat liner gasket for wall inlets pre 2006 – 60472 should be carried out carefully to protect the liner and to achieve a uniform seal. The pool level should be lowered below the inlet and all work performed with clean, dry surfaces.

• Remove the existing front ring and old gasket, and clean the contact surfaces.
• Position the new flat gasket correctly against the liner and inlet body.
• Reinstall the front flange and tighten the screws gradually in a cross pattern.

Correct tightening pressure is important: the gasket must be compressed enough to seal, but not so much that the plastic flange is distorted or the liner is pinched excessively.
