Description

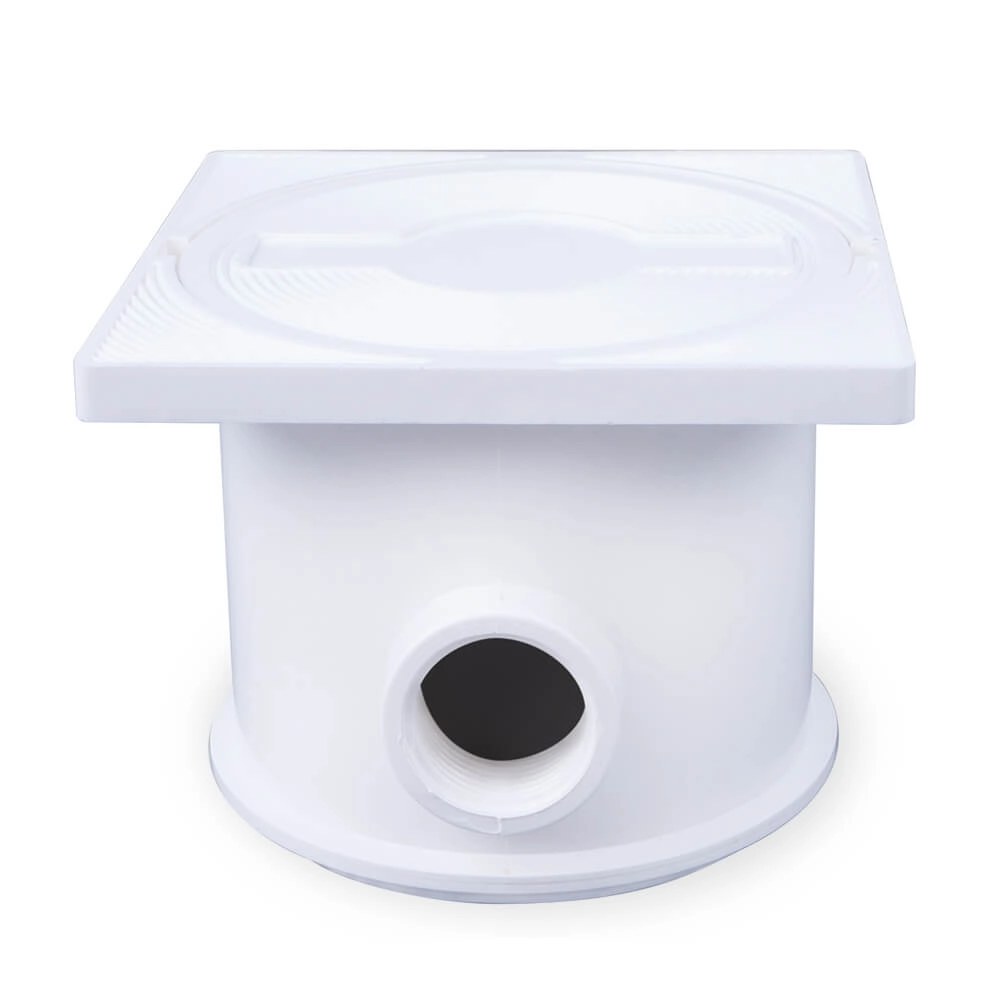

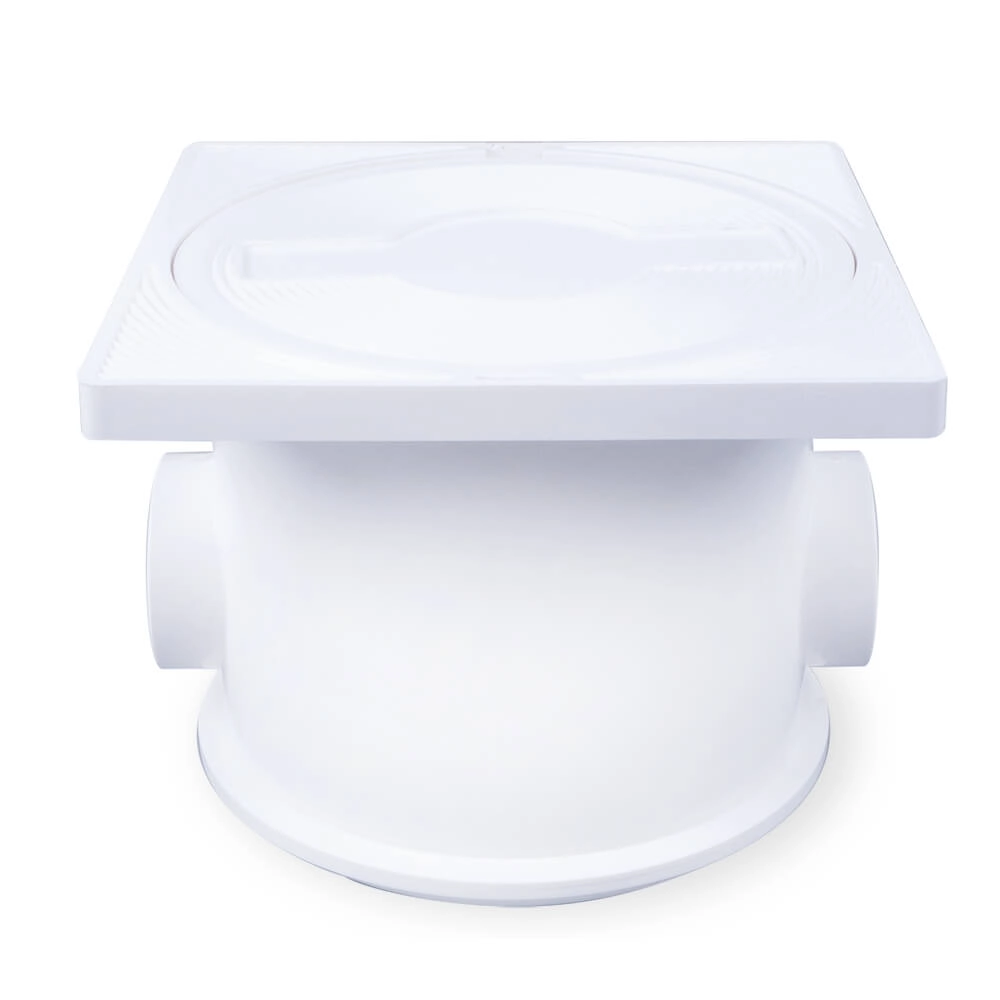

45000000 – BWT BC84 junction box, white
Make safe, watertight connections for your pool light with the BWT BC84 junction box. This universal deck box is designed for new builds and renovations, giving you a clean, secure connection point between the projector cable and the conduit from the plant room.
- Universal deck box with 1 inlet and 2 outlets
- UV-stabilised ABS with O-ring sealed lid
- Supplied with terminal block and cable gland
Compatibility
Suitable for Aquareva/Procopi/BWT pool light installations. Commonly used with Aquareva “Série France” orientable projectors (e.g., 25456, 31894, 65536) and other 1.5 mm² LED lamp cabling setups. Fits standard pool conduits and deck/beam installations above the waterline.
What’s included
- BC84 junction box (white)
- Terminal block (domino) for cable connection
- Cable gland (presse-étoupe)
- Pre-plugged spare outlet (open only if needed)
Installation & tips
- Install above the waterline in an accessible location; follow local electrical codes.
- Use the supplied gland for strain relief and a tidy, watertight entry.
- For maximum moisture protection, encapsulate connections with two-component insulating gel compatible with deck boxes.
- The lid requires a tool to open, improving safety and sealing; check the O-ring is clean before closing.

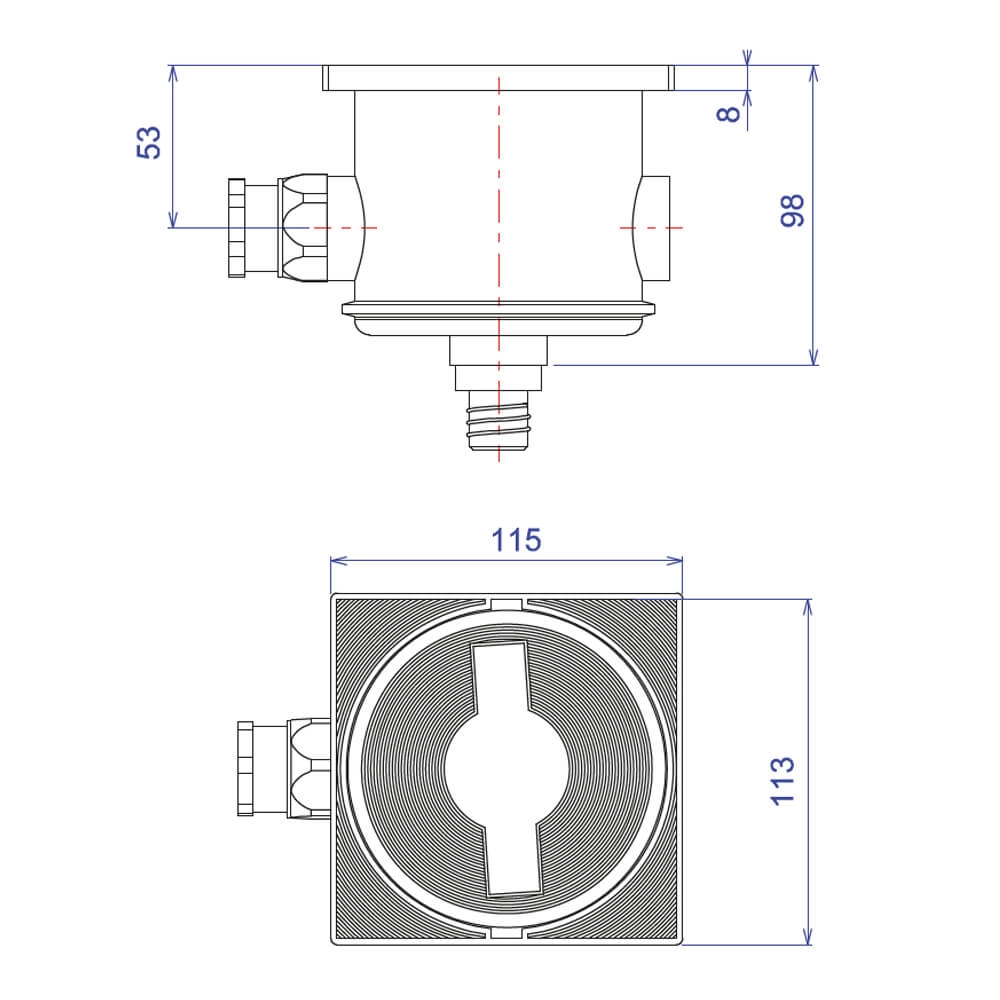

Specifications
- Manufacturer: BWT (Procopi/Aquareva)
- Model: BC84 universal deck/junction box
- Reference: 45000000
- Colour: White
- Material: UV-treated ABS, O-ring sealed cover
- Entries: 1 inlet, 2 outlets (one factory-plugged)
- Cable capacity: suitable for 1.5 mm² LED lamp wiring
- Application: pool light electrical junction (new build or renovation)
Good to know
Other colours (sand, grey, anthracite) and spare parts (covers and gaskets) are available separately. In “replaces/used with” contexts you may find this box referenced as BC-84 or “boîtier de jonction Aquareva”.
