Description

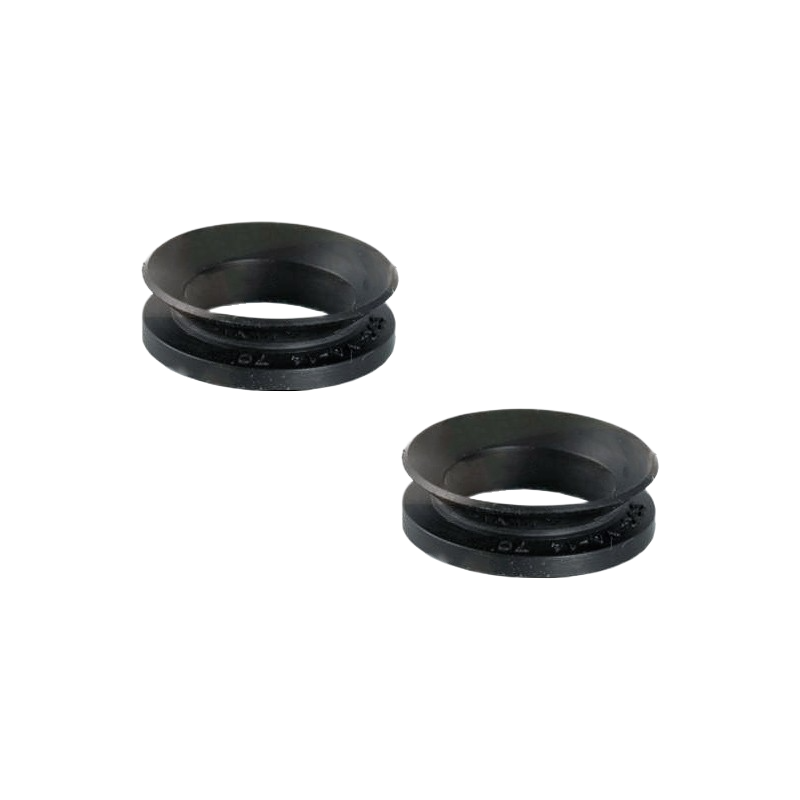

Astralpool v-rings 0.5 hp – 1 hp 4405010158
The Astralpool v-rings 0.5 hp – 1 hp 4405010158 are original shaft protection seals used on selected Astralpool circulation pumps in the
half to one horsepower range. Mounted on the motor shaft, these elastic rings act as an additional barrier against splashed water, dust
and fine contaminants, helping to protect the mechanical seal and front bearing area for long term, reliable operation.
Function of the astralpool v-rings
In a pool pump, the v-ring is installed on the motor shaft and rotates with it, lightly contacting a stationary surface. This simple but
effective design deflects water droplets and dirt away from the mechanical seal zone, reducing the risk of moisture reaching the motor
front bearing and electrical parts. The astralpool v-rings 0.5 hp – 1 hp 4405010158 are dimensioned specifically for the corresponding
shaft diameter and C71 style motor front, ensuring correct contact pressure and stable operation.
By adding this extra level of protection, the v-rings support longer seal life and contribute to quieter, more dependable filtration,
especially in humid technical rooms where condensation and splashes are common.
Compatibility and typical applications
These v-rings are intended for use on Astralpool pool pumps that are equipped with motors between 0.5 hp and 1 hp and that specify
reference 4405010158 in their exploded view or spare parts list. They are commonly found in small and medium residential filtration
systems, both for in ground and above ground pools supplied through PoolParthub.com.
- Original astralpool v-rings for 0.5 hp to 1 hp pump models using C71 type motors.
- Installed on the motor shaft in front of the mechanical seal area.
- Suitable for residential filtration systems with sand, glass or cartridge filters.
To ensure correct selection, always check the pump identification label and the official parts diagram for your model and confirm that
4405010158 is indicated as the v-ring reference.
When to replace the v-rings 0.5 hp – 1 hp
Although v-rings work without high contact pressure, they are made from elastomer and operate in a warm, humid environment. Over time,
they can harden, crack or lose their original shape, which reduces their ability to deflect water and contaminants effectively.
- Visible cracks, tears or deformation in the lip or body of the ring.
- V-ring that no longer sits firmly on the shaft or that has lost its circular form.
- Corrosion marks or rust on the motor front, indicating water has passed the barrier.
- Replacement of the mechanical seal, where renewing the v-ring at the same time is good practice.
Replacing worn v-rings with new astralpool v-rings 0.5 hp – 1 hp 4405010158 helps to maintain a clean, dry interface around the seal and
motor shaft, reducing the risk of premature seal failure.
Installation and service recommendations
Installation of the astralpool v-rings 0.5 hp – 1 hp 4405010158 is usually carried out during mechanical seal replacement or motor
servicing, when the pump is already disassembled. The system must be fully isolated electrically and hydraulically before any work is
performed.
- Switch off the power supply, close isolation valves and drain the pump housing.
- Separate the wet end from the motor and remove the impeller and old mechanical seal.
- Carefully slide the old v-ring off the shaft, noting its orientation and position.
- Clean the shaft and adjacent surfaces to remove rust, limescale and deposits.
- Fit the new v-ring on the shaft, positioning it according to the original assembly layout.
- Install the new mechanical seal, refit the impeller and reassemble the pump following the manufacturer sequence.
Before restarting, turn the shaft by hand to confirm that the v-ring runs freely and that there is no contact with sharp edges or
misaligned parts. After priming and starting the pump, observe the motor front for a few minutes to ensure the area remains dry.
Good practice for long term protection
With new astralpool v-rings 0.5 hp – 1 hp 4405010158 in place, a few simple habits will help extend the service life of both the v-rings
and the mechanical seal.
- Keep the technical room ventilated and avoid standing water around the pump base.
- Avoid directing strong water jets towards the motor and flange when cleaning the area.
- Inspect the shaft zone visually during annual maintenance for early signs of corrosion or moisture.
- Replace v-rings systematically whenever the mechanical seal or motor front bearing is renewed.
By using original astralpool v-rings 0.5 hp – 1 hp 4405010158 and following these service guidelines, compatible pumps benefit from better
shaft protection, more reliable sealing and a longer, more stable operating life in everyday pool filtration.
