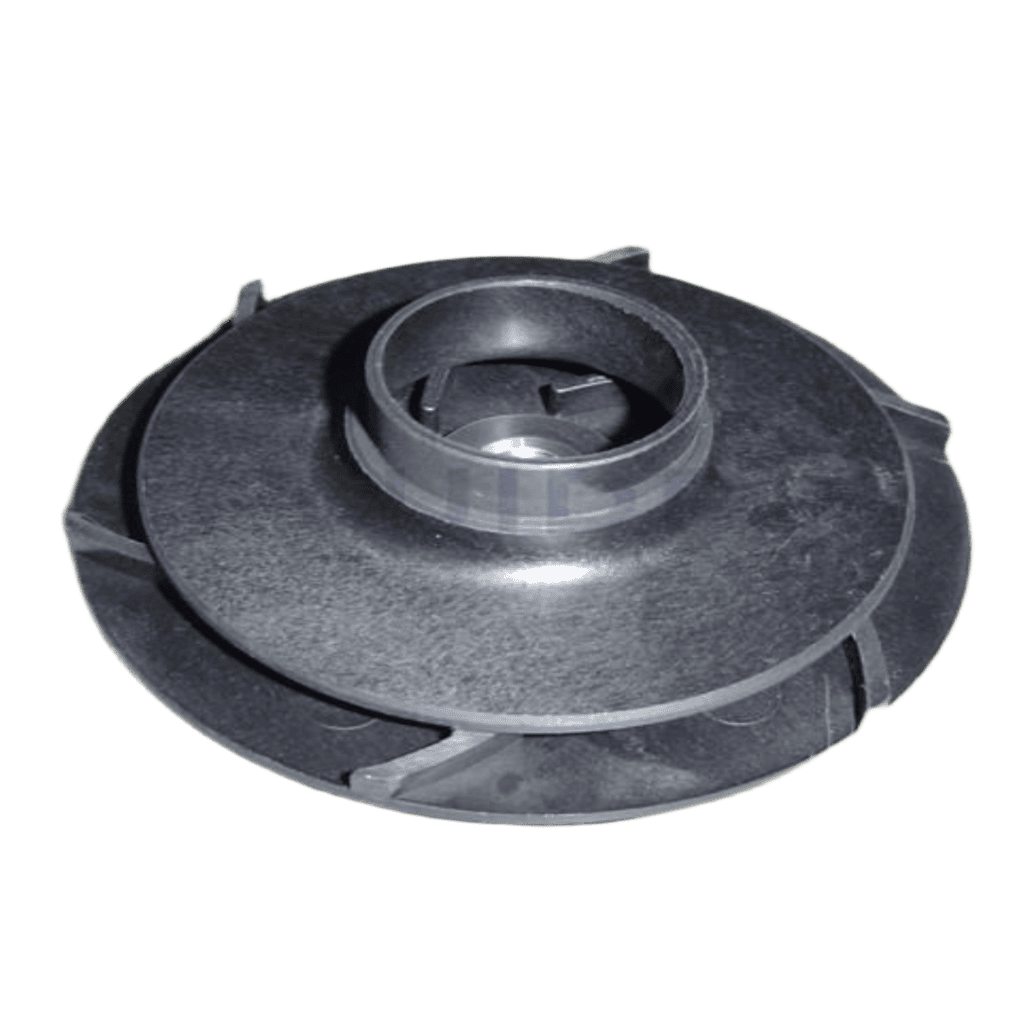

Astralpool impeller 1 HP 60 Hz - 4401010043

Astralpool impeller 1 HP 60 Hz 4401010043

The Astralpool impeller 1 HP 60 Hz 4401010043 is the original replacement rotor designed for selected Astralpool pool pumps with a
1 horsepower, 60 hertz motor. This hydraulic component is responsible for generating flow and pressure inside the pump, and replacing a
worn or damaged impeller is essential to restore full filtration performance in residential pools.

Function of the Astralpool 1 HP 60 Hz impeller

Inside the pump wet end, the impeller is mounted on the motor shaft and rotates at high speed, drawing water in through the suction port
and pushing it out towards the diffuser and discharge. The specific geometry of the Astralpool impeller 1 HP 60 Hz 4401010043 is matched
to the motor power and pump body, ensuring that the pump delivers the designed flow rate and head for a 1 HP, 60 Hz configuration.

A correctly sized and undamaged impeller helps the pump to prime quickly, maintain strong suction at the skimmers and drive water
efficiently through the filter, heater and treatment equipment.

Design and construction

The Astralpool impeller 1 HP 60 Hz 4401010043 is moulded from high quality plastic chosen for its resistance to treated pool water and
for its dimensional stability under normal operating temperatures. The vanes and hub are precisely formed to maintain the correct internal
clearances with the diffuser and pump housing, limiting hydraulic losses and noise.

• Durable plastic body suitable for chlorinated or saltwater pools with balanced chemistry.
• Optimised vane profile to match the 1 HP 60 Hz performance curve.
• Central hub designed for secure mounting on the motor shaft with the original fixing system.
• Balanced construction to support smooth, low vibration operation when properly installed.

Compatibility and typical applications

This impeller is intended for use on specific Astralpool pool pumps that list reference 4401010043 in their exploded view or spare parts
list for the 1 HP 60 Hz version. It is particularly suited to small and medium residential pools where the pump provides circulation
through sand, glass or cartridge filters.

• Compatible with Astralpool pumps configured with a 1 HP, 60 Hz single phase motor.
• Designed for residential filtration systems with typical operating pressures.
• Suitable for both in ground and above ground pools when used in the correct pump model.

To ensure correct selection, always verify the pump model, power rating and hertz on the motor nameplate and compare with the official
parts diagram before ordering the Astralpool impeller 1 HP 60 Hz 4401010043.

When to replace the impeller 4401010043

Although protected inside the pump, the impeller operates at high speed and is subject to wear from fine particles, occasional cavitation
and normal mechanical stresses. Over time, this can reduce flow and pressure or create noise and vibration.

• Noticeable loss of flow or filter pressure even with a clean filter and prefilter basket.
• Cracks, chips or broken blades visible on the impeller vanes.
• Excessive wear or erosion on the edges of the vanes or at the hub.
• Unusual vibrations or rattling noises coming from the pump housing.

Replacing a damaged or worn impeller with the original Astralpool impeller 1 HP 60 Hz 4401010043 is one of the most effective ways to
recover the pump’s original hydraulic performance.

Installation recommendations

Installation of the Astralpool impeller 1 HP 60 Hz 4401010043 should always be carried out with the pump isolated electrically and the
hydraulic circuit depressurised. The replacement is usually combined with inspection or renewal of the mechanical seal and nearby
gaskets.

• Switch off the power, close valves and drain the pump housing before disassembly.
• Remove the prefilter lid and basket, separate the wet end from the motor and access the shaft end.
• Hold the motor shaft using the designated flat or rear access point and unscrew the existing impeller.
• Inspect and, if necessary, replace the mechanical seal and diffuser at the same time.
• Screw the new impeller onto the shaft, respecting the original direction and using the correct fixing plug or screw.
• Reassemble the pump, prime the prefilter and check for smooth, quiet operation at start up.

Careful handling of the new impeller, avoiding impacts and ensuring correct alignment, helps guarantee a long service life and optimal
performance in daily filtration use.

Good practice for long impeller life

With the Astralpool impeller 1 HP 60 Hz 4401010043 correctly installed, a few simple habits will help extend its life and maintain
consistent filtration quality.

• Keep the prefilter basket clean to prevent large debris reaching the impeller.
• Avoid running the pump dry, which can overheat the seal and increase cavitation risk.
• Maintain balanced water chemistry to limit long term material stress.
• Monitor noise and pressure; investigate changes early to prevent further damage.

By using the original Astralpool impeller 1 HP 60 Hz 4401010043 and following good maintenance practice, compatible pumps can continue to
provide stable, efficient circulation for many swimming seasons.
