Hayward - Pool pump RS II 2HP 63mm glue socket 23m³/h - 7017118

Hayward – Pool pump RS II 2HP 63mm glue socket 23m³/h

With a peak flow rate of 23 m³/h and a 2 HP (6.5 A / 230 V) motor, the Hayward RS II 30201 is built for large in-ground pools and demanding installations where high-volume circulation is essential. The 63 mm glue-socket connection suits European pipework standards and keeps installation straightforward for professional installers. A Noryl impeller and stainless steel 304 mechanical seal deliver long-term resistance to pool water chemistry.

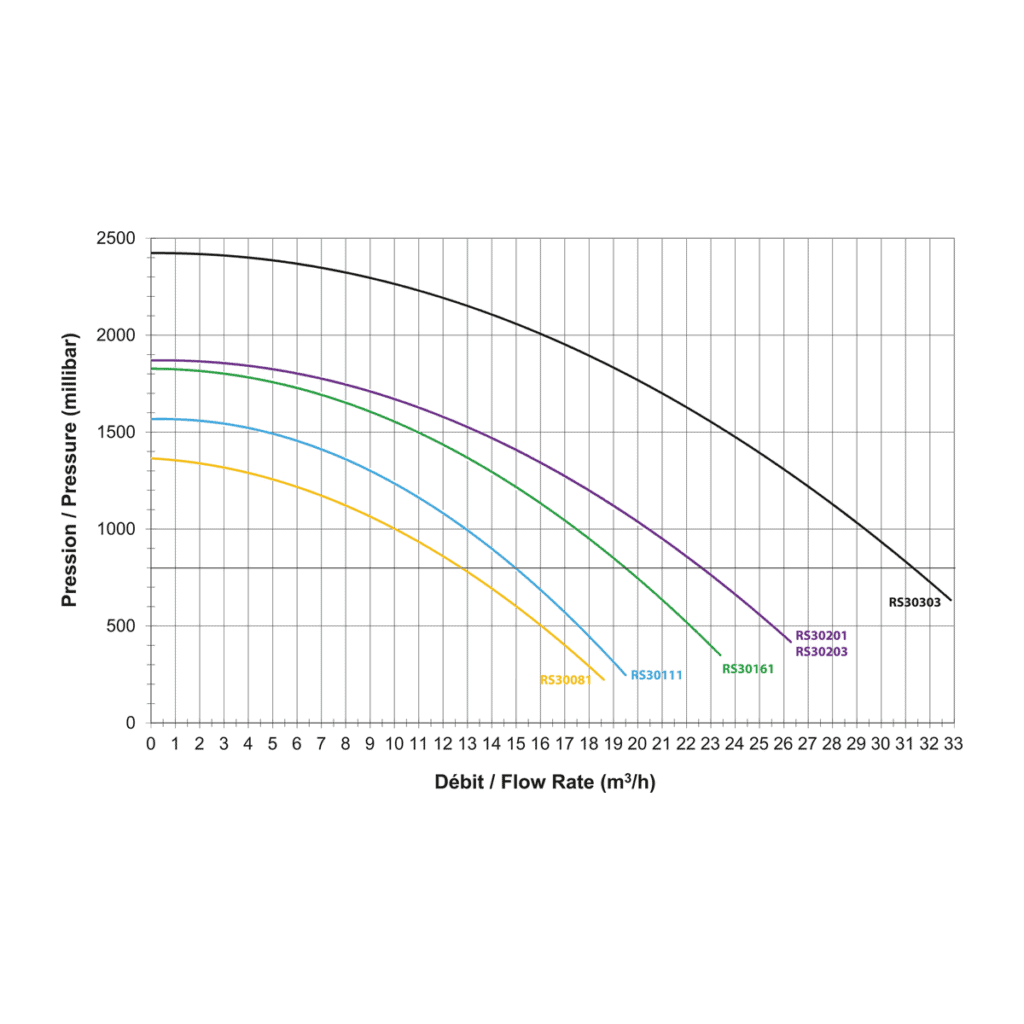

Hydraulic performance & sizing

At 23 m³/h, this single-speed pump comfortably serves large residential pools and is well matched to 800–900 mm sand or cartridge filters. The full-bore hydraulic design minimises head losses through the wet end, maintaining strong flow even over longer pipe runs typical of larger installations.

Wet-end construction & materials

The pump body is moulded from fibre-glass reinforced thermoplastic resin, providing excellent resistance to UV, chlorine, and elevated water temperatures up to 35 °C. The Noryl impeller offers superior chemical resistance compared to standard thermoplastics, while the stainless steel 304 seal assembly reduces the risk of premature leaks or corrosion-related failures common in high-duty applications.

Montaggio e collegamento

Weighing 15 kg, the RS II 30201 is robust yet manageable for bench installation before pipe connection. The 63 mm glue-socket union fittings allow a secure, leak-free bond to rigid PVC pipework, and the single-phase 230 VAC supply means no three-phase electrical infrastructure is required — ideal for residential plant-room retrofits and new builds alike.
