Valvola a sfera VDL in PVC-U DN25, 32 mm, raccordo a incollaggio, 16 bar, tipo EIL, grigia
Spedizione 1-3 settimane
Certificato negozio online
Resi facili entro 14 giorni
Cercando consigli?
VDL PVC-U Ball Valve DN25 – Single-Union Glue Socket, 16 bar, Type EIL
The VDL type EIL ball valve in PVC-U is a robust, full-bore shut-off valve designed for pressure pipework in swimming pool plant rooms, irrigation systems, and greenhouse water distribution networks. Built to DN25 (32 mm glue socket), it accepts standard PVC-U pipe with an outer diameter of 32 mm on both ends, allowing a permanent solvent-cemented installation that eliminates threaded joint leakage paths. The grey PVC-U body resists chlorinated water, fertiliser solutions, and mild chemicals across a service temperature range of 0 °C to 60 °C at a maximum working pressure of 16 bar.
The single-union design — identifiable by the threaded union nut on the downstream side — allows the valve body to be removed from the pipeline for inspection or replacement without disturbing the glued pipe ends. The oversized red PVC-U lever provides positive quarter-turn (90°) open/close actuation with clear visual indication of valve position. EPDM seals ensure compatibility with chlorinated pool water and resist UV degradation in outdoor installations. The compact face-to-face length (Lb) of 102 mm keeps installation space to a minimum in tight pump-room layouts.
Specifiche tecniche
- Diametro nominale: DN25
- Tipo di collegamento: raccordo a incollaggio (colla a solvente), su entrambe le estremità

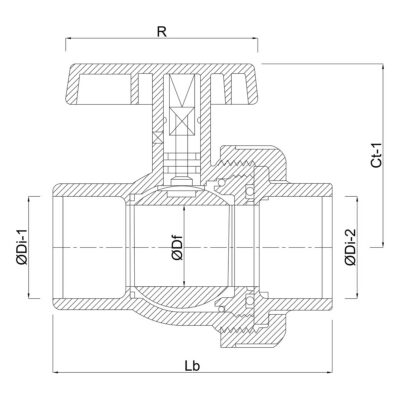

- Socket inner diameter (ØDi-1, fixed end): 32 mm
- Socket inner diameter (ØDi-2, union end): 32 mm
- Diametro del foro della sfera (ØDf): 25 mm
- Face-to-face length (Lb): 102 mm
- Handle rotation radius (R): 65 mm
- Overall height including handle (Ct-1): 94 mm
- Profondità della presa: 25 mm
- Pressione di esercizio: 16 bar
- Intervallo di temperatura: da 0 °C a 60 °C
- Materiale del corpo: PVC-U, grigio
- Materiale della maniglia: PVC-U, rosso
- Materiale della guarnizione: EPDM
- Tipo di valvola: valvola a sfera a passaggio totale con raccordo singolo
- Actuation: Manual quarter-turn lever
- Valve series: Type EIL
Compatibilità
This valve is compatible with standard PVC-U pressure pipe with an outer diameter of 32 mm (DN25) conforming to EN ISO 1452 and DIN 8062. It is suitable for use with solvent cement adhesives formulated for PVC-U pressure systems. The EPDM seals are compatible with potable water, chlorinated pool water, and common irrigation fertiliser solutions within the stated temperature and pressure limits. This valve is not recommended for use with solvents, concentrated acids, or pipe systems conveying compressed air or gases.
Informazioni aggiuntive
| Marchio: | VDL |
|---|---|
| Valve series: | Type EIL |
| Diametro nominale: | DN25 |
| Tipo di connessione: | Incollaggio del manicotto (colla a solvente), su entrambe le estremità |
| Pipe outer diameter: | 32 mm |
| Socket inner diameter – fixed end (ØDi-1): | 32 mm |
| Socket inner diameter – union end (ØDi-2): | 32 mm |
| Diametro del foro della sfera (ØDf): | 25 mm |
| Lunghezza faccia a faccia (Lb): | 102 mm |
| Handle rotation radius (R): | 65 mm |
| Altezza totale, maniglia inclusa (Ct-1): | 94 mm |
| Profondità della sede: | 25 mm |
| Pressione di esercizio: | 16 bar |
| Intervallo di temperatura: | 0 °C – 60 °C |
| Materiale della carrozzeria: | PVC-U |
| Colore della carrozzeria: | Grigio |
| Materiale del manico: | PVC-U |
| Colore della maniglia: | Rosso |
| Materiale della guarnizione: | EPDM |
| Tipo di valvola: | Valvola a sfera a passaggio totale con raccordo singolo |
| Azionamento: | Manual quarter-turn lever |
| Configurazione dell'unione: | Single union (downstream side) |
In dettaglio
- Full-bore 25 mm ball passage minimises flow restriction in DN25 pipework
- Single-union end allows body removal without cutting glued pipe spigots
- 16 bar pressure rating suits demanding pool circulation and irrigation duties
- EPDM seals provide reliable performance in chlorinated and fertiliser-dosed water
- Compact 102 mm face-to-face length fits tight pump-room and manifold installations
- Glue-socket connection requires solvent cement and cure time before pressurisation — not a tool-free fit
- Maximum service temperature of 60 °C limits use to cold and warm water systems only
- Single-union on one side only; full in-line removal requires a union or fitting on the opposing pipe end
